MANIFOLD

15407PIPE SUB-ASSY, TURBO OIL INLET

main15407-E0254iN04C..XKC605,XKU605,645,655202103

15407ABOLT, UNION(FOR TURBO OIL INLET PIPE)

mainSZ40112001iN04C..XKC605,XKU605,645,655202103

mainSZ40114004iN04C..XKC605,XKU605,645,655202103

15407BGASKET(FOR TURBO OIL INLET PIPE)

mainSL72201210×2iN04C..XKC605,XKU605,645,655202103

mainSL72201415×2iN04C..XKC605,XKU605,645,655202103

15472GASKET, TURBO OIL OUTLET, NO.1

main15472-E0070iN04C..XKC605,XKU605,645,655202201

mainS241351161iN04C..XKC605,XKU605,645,655202103-202112

15473GASKET, TURBO OIL OUTLET, NO.2

main15472-E0050iN04C..XKC605,XKU605,645,655202103

15474PIPE, TURBO OIL OUTLET

main15407-78221iN04C..XKC605,XKU605,645,655202103

1703AIR CLEANER

→ Go to FIG 17-03

17107INSULATOR SUB-ASSY, EXHAUST MANIFOLD HEAT

main17107-78210iN04C..XKC605,XKU605,645,655202310

main17107-E0012iN04C..XKC605,XKU605,645,655202103-202310

17111MANIFOLD, INTAKE

main17111-78110iN04C..XKC605,XKU605,645,655202103

17113PIPE, INTAKE

main17113-78443iN04C..XKC605,XKU605,645,655202103

17113DPIPE, INTAKE, NO.1

main17103-78311iN04C..XKC605,XKU605,645,655202103-202409

main17103-78400iN04C..XKC605,XKU605,645,655202409

17141MANIFOLD, EXHAUST

main17141-E0370iN04C..XKC605,XKU605,645,655202103

17141KBOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)

mainSZ12610012×4iN04C..XKC605,XKU605,645,655202103

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

mainSZ12610006×4iN04C..XKC605,XKU605,645,655202103

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-78080×4iN04C..XKC605,XKU605,645,655202103

17201TURBOCHARGER SUB-ASSY

main17201-78300iN04C..XKC605,XKU605,645,655202103

17271INSULATOR, TURBO, NO.1

main17271-78080iN04C..XKC605,XKU605,645,655202103

17277GASKET, COMPRESSOR OUTLET

main17277-78030iN04C..XKC605,XKU605,645,655202103

17278GASKET, TURBO TO EXHAUST MANIFOLD

mainS241091860iN04C..XKC605,XKU605,645,655202103

17341HHOSE, AIR

main17341-78410iN04C..XKC605,XKU605,645,655202409

mainSZ92033B09iN04C..XKC605,XKU605,645,655202103-202409

17873ABRACKET, INTAKE AIR CONNECTOR, NO.2

main17872-78060iN04C..XKC605,XKU605,645,655202103

2501EXHAUST GAS RECIRCULATION SYSTEM

→ Go to FIG 25-01

2606VENTURI

→ Go to FIG 26-06

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

17444E0060PIPE, EXHAUST, NO.4

main17444-E0060

9017908210

main90179-08210

9167180830

main91671-80830

SH55210816

mainSH552-10816

SH55210825

mainSH552-10825

SH55210832

mainSH552-10832

SH55210855

mainSH552-10855

SH55210885

mainSH552-10885

SJ11200830

mainSJ112-00830

SL15010808

mainSL150-10808

SZ11908042

mainSZ119-08042

SZ11908216

mainSZ119-08216

SZ12608007

mainSZ126-08007

SZ12610015

mainSZ126-10015

SZ17810007

mainSZ178-10007

SZ46612003

mainSZ466-12003

SZ91016217

mainSZ910-16217

SZ91016223

mainSZ910-16223

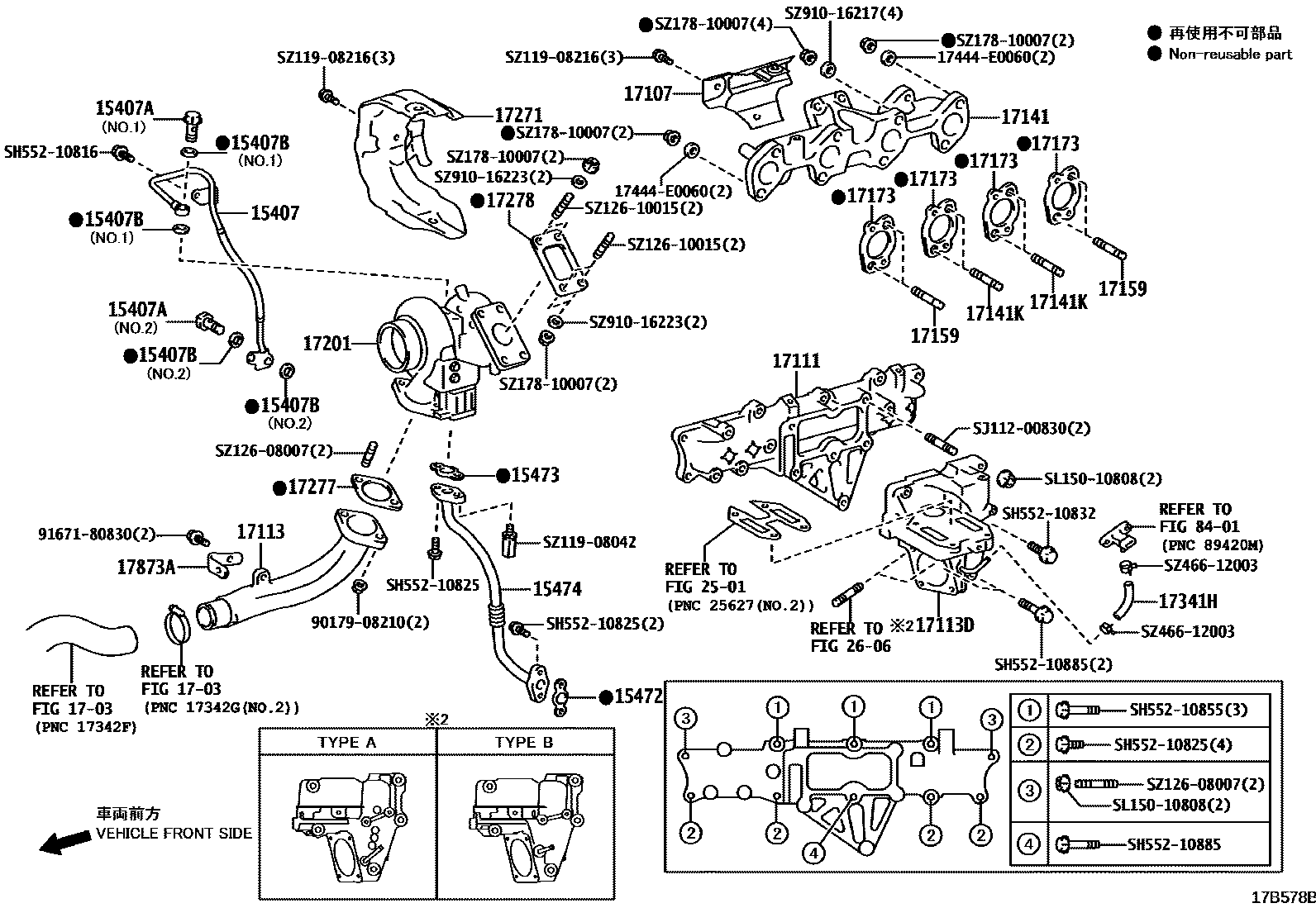

42 parts on this diagram · 1 diagram in section
