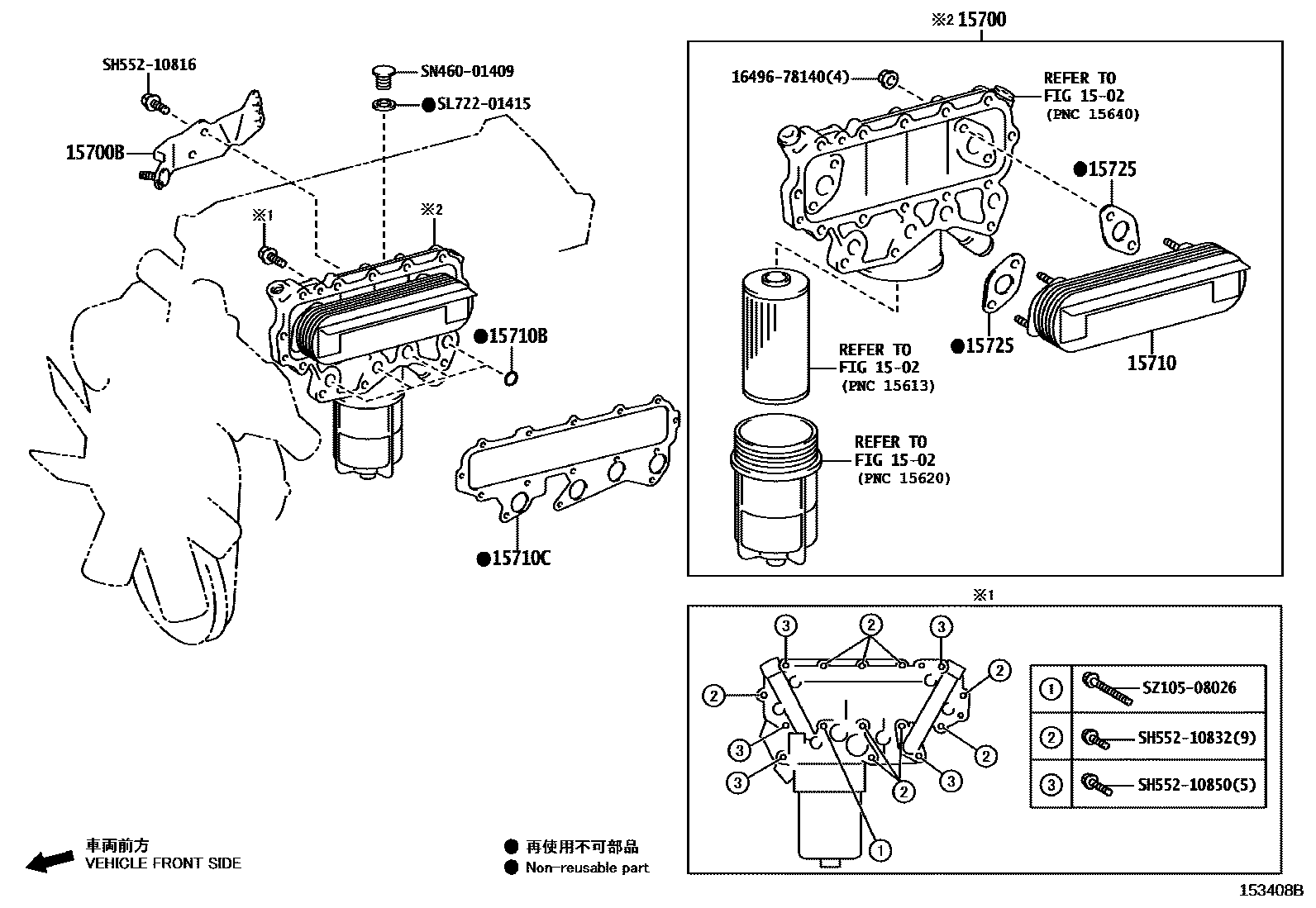

Toyota DYNA HV — ENGINE OIL COOLER
1502OIL FILTER
15700BBRACKET(FOR OIL COOLER)
15710BRING, O(FOR OIL COOLER)
15710CGASKET(FOR OIL COOLER)
15725GASKET, OIL COOLER COVER
1649678140
SH55210816
SH55210832
SH55210850
SL72201415
SN46001409
SZ10508026
14 parts on this diagram · 2 diagrams in section
ENGINE OIL COOLER for Toyota DYNA HV
This section contains 14 genuine Toyota parts for the ENGINE OIL COOLER system of the Toyota DYNA HV. Key components include: OIL FILTER, COOLER ASSY, OIL W/BRACKET, BRACKET(FOR OIL COOLER), COOLER ASSY, OIL, RING, O(FOR OIL COOLER).
