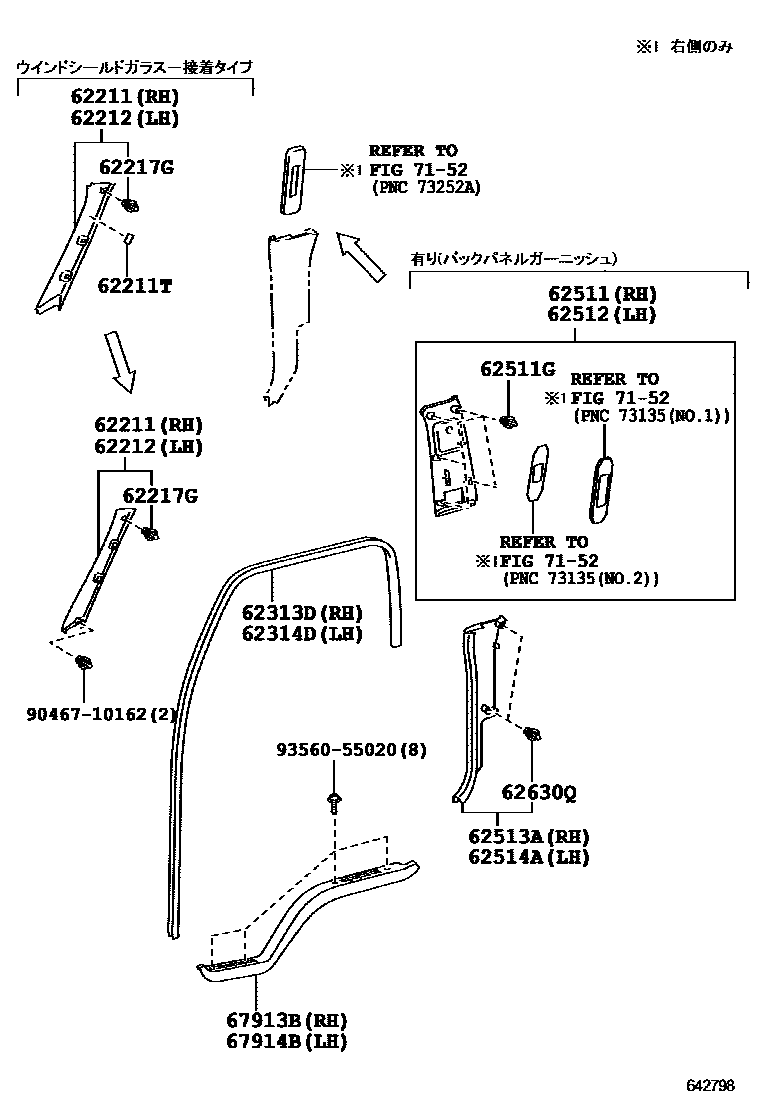

INSIDE TRIM BOARD

0001 1 0002 1��(���������������)

62211GARNISH, FRONT PILLAR, RH

main62210-37010-B0iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201605

GRAY,TRIM1#

main62210-37020-B0iXKC605,645,655,XKU60#,64#,65#201605-201705

GRAY,TRIM1#

62211TCLIP(FOR FRONT PILLAR GARNISH)

main62217-89101iXKC605,645,655,XKU60#,64#,65#201605-201705

62212GARNISH, FRONT PILLAR, LH

main62220-37010-B0iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201605

GRAY,TRIM1#

main62220-37020-B0iXKC605,XKU605,645,655201605-201705

GRAY,TRIM1#

62217GCLIP, FRONT PILLAR GARNISH

main62217-13010iXKC605,645,655,XKU60#,64#,65#201605-201705

main90467-10188iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201605

62313DTRIM, FRONT DOOR OPENING, RH

main62313-37060-B1iXKC605,645,655,XKU60#,64#,65#201107-201207

GRAY,TRIM1#

sub62313-37080

main62313-37080-B0iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201208-201605

GRAY,TRIM1#

main62313-89122-B1iXKC605,645,655,XKU60#,64#,65#201605-201705

GRAY,TRIM1#

62314DTRIM, FRONT DOOR OPENING, LH

main62314-37020-B1iXKC605,645,655,XKU60#,64#,65#201107-201207

GRAY,TRIM1#

sub62314-37040

main62314-37040-B0iXKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4201208-201605

GRAY,TRIM1#

main62314-89106-B1iXKC605,645,655,XKU60#,64#,65#201605-201705

GRAY,TRIM1#

62511BOARD, QUARTER INSIDE TRIM, RH

main62511-37011

main62510-37060

main90467-10161

main90467-10188

62511GCLIP (FOR QUARTER INSIDE TRIM BOARD)

62512BOARD, QUARTER INSIDE TRIM, LH

main62512-37011

main62520-37040

62513APANEL, QUARTER TRIM, LOWER RH

main62513-37011-B1iXKC605,645,655,XKU60#,64#,65#201107-201308

GRAY,TRIM1#

sub62530-37020

main62530-37020-B0iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201309-201705

GRAY,TRIM1#

62514APANEL, QUARTER TRIM, LOWER LH

main62514-37011-B1iXKC605,645,655,XKU60#,64#,65#201107-201308

GRAY,TRIM1#

sub62540-37020

main62540-37020-B0iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201309-201705

GRAY,TRIM1#

62630QCLIP (FOR QUARTER TRIM)

main90467-10161iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201705

67913BPLATE, FRONT DOOR SCUFF, RH

main67913-37010-B1iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201705

GRAY,TRIM1#

67914BPLATE, FRONT DOOR SCUFF, LH

main67914-37010-B1iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201705

GRAY,TRIM1#

7152

9046710162

main90467-10162

9356055020

main93560-55020

17 parts on this diagram · 2 diagrams in section
