FRAME

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1������������ 0013 1��������������� & ������ 0014 1��������������� & ������ 0015 1�����

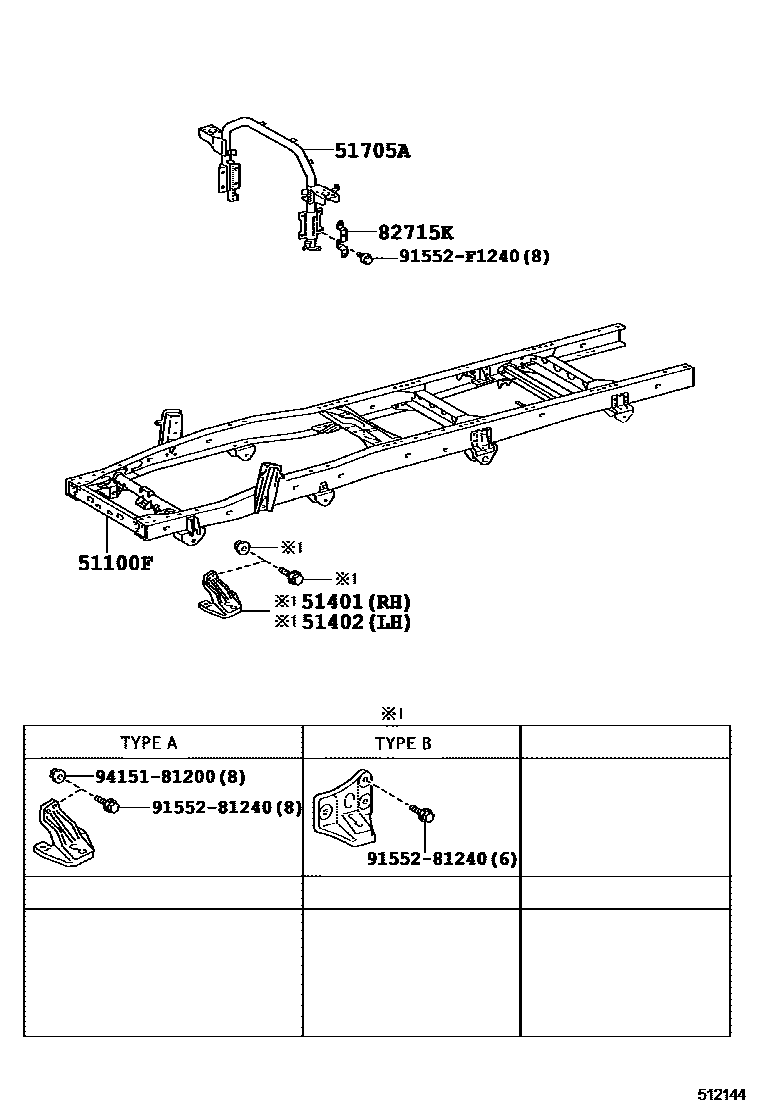

51100FFRAME SUB-ASSY

main51001-3VQ00iXKU605..T5..CBU201107-201505

main51001-3VQ01iXKC605,XKU605201605-201705

main51001-3VQ10iXKC645,XKU645201107-201605

main51001-3VQ11iXKC645,XKU645201605-201705

main51001-3VQ60iXKU600..T4;XKU600..T5..IV3;XKU600..T5..30T..CBU201107-201605

main51001-3VQ61iXKU600..CBU,IV3201605-201705

main51001-3VQ70iXKU650..T4;XKU650..T3..IV3201107-201605

main51001-3VQ71iXKU650201605-201705

main51001-3VQ80iXKU600..IV5201107-201605

main51001-3VQ81iXKU600..IV5201705

main51002-37T30iXKU640201107-201605

main51002-37T31iXKU640201605-201705

main51002-3VE60iXKC605,XKU605..T4201905

main51002-3VE70iXKU605..IV5201905

main51002-3VF90iXKU645201905

main51002-3VG60iXKU655201905

main51001-3VQ50supersedes 51001-3VQ40iXKC655..T3201107-201505

main51001-3VQ51supersedes 51002-37S80iXKC655,XKU655201605-201705

51401BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH

main51421-37050iXKU600..IV5201107-201705

main51421-37081iXKU650..T4;XKU600,640..T3,T4;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3201107-201705

51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

main51422-37110iXKU600..IV5201107-201705

main51422-37141iXKU650..T3..CBU;XKU600..T5..20T..CBU201107-201505

51705ABRACKET SUB-ASSY, CAB MOUNTING, NO.3

main51705-37453iXKC655..T3;XKU605..T5..CBU201107-201505

main51705-37840iXKU650..T3..CBU;XKU600..T5..20T..CBU201107-201505

82715KBRACKET, WIRING HARNESS CLAMP

main82715-3VN20iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201505

9155281240

main91552-81240

91552F1240

main91552-F1240

9415181200

main94151-81200

8 parts on this diagram · 14 diagrams in section
