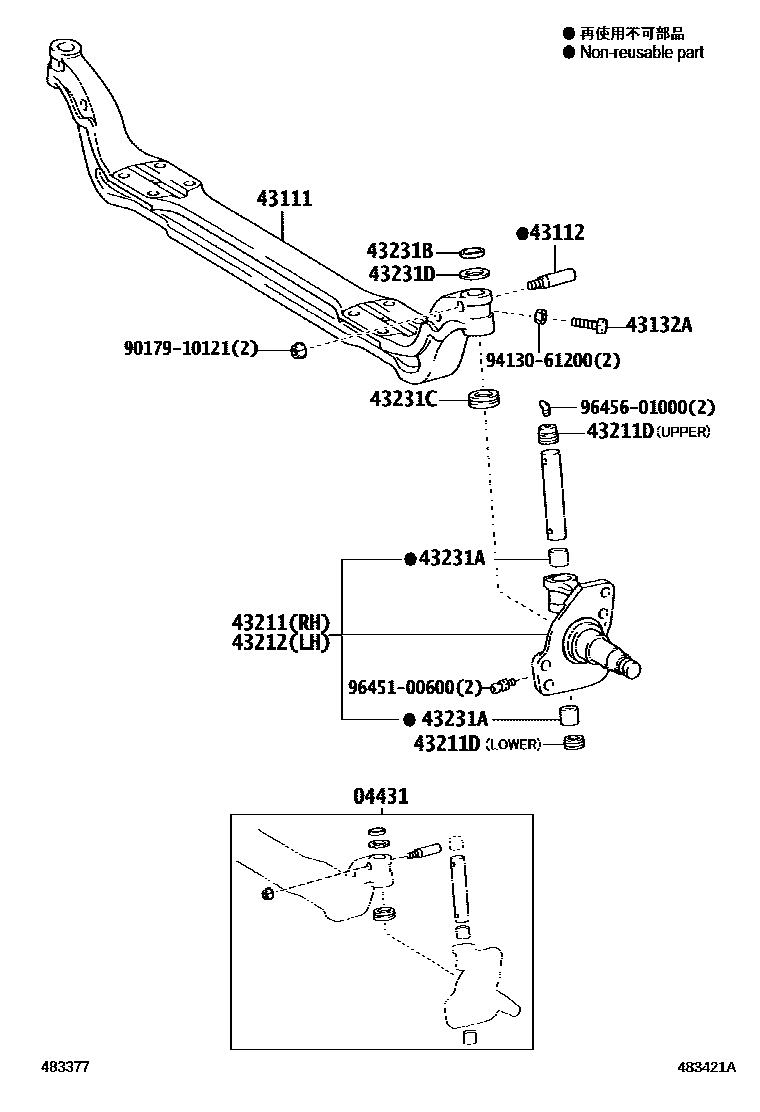

FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0002 1 0003 1

04431PIN KIT, STEERING KNUCKLE KING

main0443C-37010×2iXKU600,640,650201612-201705

main0443C-37020×2iXKU650..T3..CBU;XKU600..T5..20T..CBU201107-201505

43111I BEAM, FRONT AXLE

main43111-37031iXKU650..T4;XKU600..T5..30T..CBU;XKU600,640..DM6,T3,T4;XKU600,650..(T3,T5)..IV3201107-201705

43112PIN, KING PIN LOCK

main43112-36020×2iXKU650..T3..CBU;XKU600..T5..20T..CBU201107-201505

43132ABOLT, ROUND HEXAGON (FOR STEERING KNUCKLE STOPPER BOLT)

main90106-12008×2iXKU650..T3..CBU;XKU600..T5..20T..CBU201107-201505

main90106-12015×2iXKC605,XKU605,645,655201905

43211KNUCKLE, STEERING, RH

main43201-37110iXKU650..T4;XKU600..T5..30T..CBU;XKU600,640..DM6,T3,T4;XKU600,650..(T3,T5)..IV3201107-201705

main43201-37130iXKC605,645,655,XKU605,645,655..DCRTK201705

43211DPLUG (FOR STEERING KNUCKLE)

main90345-33003×2iXKU650..T3..CBU;XKU600..T5..20T..CBU201107-201505

main90345-33004×2iXKU650..T3..CBU;XKU600..T5..20T..CBU201107-201505

43212KNUCKLE, STEERING, LH

main43202-37110iXKU600,640,650201705

main43202-37130iXKU655;XKU605..IV3;XKU605..T4..CBU;XKC605,645,655,XKU645..T4201107-201705

43231ABUSH, BIMETAL FORMED (FOR STEERING KNUCKLE KING PIN BUSH)

main90999-73086×4iXKU650..T3..CBU;XKU600..T5..20T..CBU201107-201505

43231BSEAL, DUST OR RING, O (FOR STEERING KNUCKLE KING PIN)

main90312-28003×2iXKU650..T3..CBU;XKU600..T5..20T..CBU201107-201505

43231CBEARING (FOR STEERING KNUCKLE KING PIN)

main90367-28001×2iXKU650..T3..CBU;XKU600..T5..20T..CBU201107-201505

43231DSHIM (FOR KING PIN)

main90564-28001×2iXKU650..T3..CBU;XKU600..T5..20T..CBU201107-201505

main90564-28002×2iXKU600,640,650201705

main90564-28003×2iXKU650..T3..CBU;XKU600..T5..20T..CBU201107-201505

main90564-28004×2iXKU650..T3..CBU;XKU600..T5..20T..CBU201107-201505

main90564-28005×2iXKU600,640,650201705

main90564-28006×2iXKU650..T4;XKU600..T5..30T..CBU;XKU600,640..DM6,T3,T4;XKU600,650..(T3,T5)..IV3201107-201705

main90564-28007×2iXKU650..T4;XKU600..T5..30T..CBU;XKU600,640..DM6,T3,T4;XKU600,650..(T3,T5)..IV3201107-201705

main90564-28008×2iXKU650..T4;XKU600..T5..30T..CBU;XKU600,640..DM6,T3,T4;XKU600,650..(T3,T5)..IV3201107-201705

9017910121

main90179-10121

9413061200

main94130-61200

9645100600

main96451-00600

9645601000

main96456-01000

15 parts on this diagram · 3 diagrams in section
