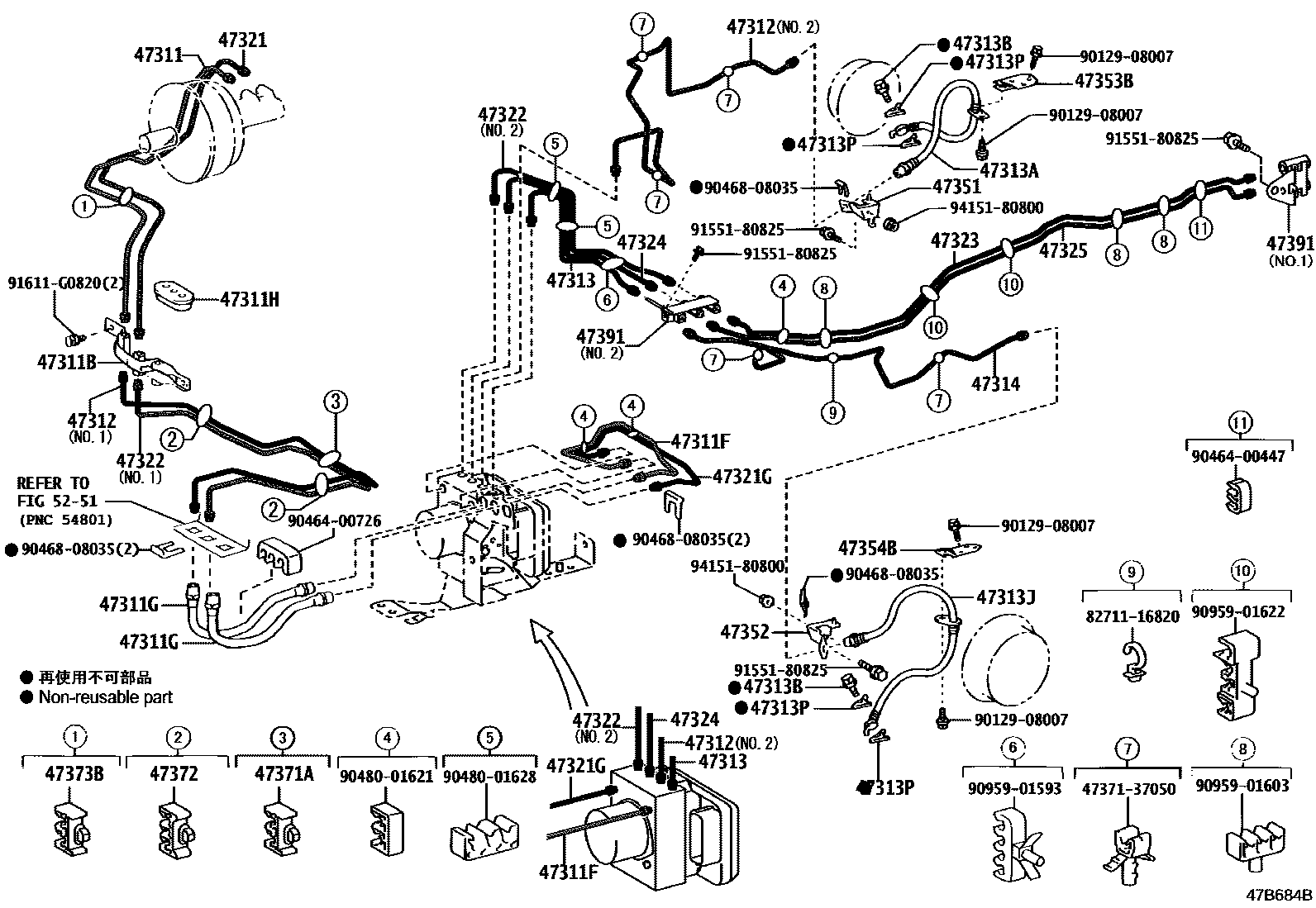

BRAKE TUBE & CLAMP

0001 1 0002 1 0004 1��(��������) 0005 1��(��������) 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0015 1 0017 1 0019 1

47311TUBE, FRONT BRAKE, NO.1

main47311-37590iXKU60#,64#,65#201107-201204

main47311-37591iXKU60#,64#,65#201204-201205

main47311-37592iXKU650..T4;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKU600,64#,655..DM6,T3,T4201205-201705

main47311-37600iXKC605,645,655201107-201204

main47311-37601iXKC605,645,655201204-201205

main47311-37602iXKC605,645,655..T4201205-201705

main47311-37750iXKC605201905

sub47311-37751

main47311-37760iXKU60#,64#,65#..DCRTK201809

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main47391-37460iXKC605,XKU605,645,655201905

47311FTUBE, FRONT BRAKE, FRAME NO.1

main47311-37611iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201505

47311GHOSE, FLEXIBLE(FOR BRAKE TUBE)

main90947-02F90×2iXKC605,645,655,XKU60#,64#,65#201705-201905

main90947-02J57×2iXKC605,XKU605,645,655201905

47311HGROMMET(FOR BRAKE TUBE)

main47256-37030iXKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4201408-201705

main90480-01311iXKC605,645,655,XKU60#,64#,65#201107-201408

47312TUBE, FRONT BRAKE, NO.2

main47312-37A80iXKC605,645,655,XKU60#,64#,65#..DCRTK201705

main47312-37A91iXKU650..T4;XKU600..T5..30T..CBU;XKU600,640..DM6,T3,T4;XKU600,650..(T3,T5)..IV3201107-201705

main47312-37B10iXKC655..T3;XKU605..T5..CBU201107-201505

main47312-37G00iXKC605,XKU605,645,655201905

main47312-37A70iXKU600..IV5201107-201205

main47312-37A71iXKU600..IV5201205-201705

main47312-37F70iXKU605..IV5201905

47313TUBE, FRONT BRAKE, NO.3

main47313-37560iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201505

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02A72iXKU600,640,650201705

main90947-02E92iXKU655;XKU605..IV3;XKU605..T4..CBU;XKC605,645,655,XKU645..T4201107-201705

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015×2iXKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4201107-201705

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-02B27iXKU650..T3..CBU;XKU600..T5..20T..CBU201107-201505

main90947-02E93iXKC655..T3;XKU605..T5..CBU201107-201505

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-30010×4iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201505

47314TUBE, FRONT BRAKE, NO.4

main47314-37760iXKU650..T4;XKU600..T5..30T..CBU;XKU600,640..DM6,T3,T4;XKU600,650..(T3,T5)..IV3201107-201705

main47314-37780iXKU655;XKU605..IV3;XKU605..T4..CBU;XKC605,645,655,XKU645..T4201107-201705

main47314-37A80iXKC605,XKU605,645,655201905

47321TUBE, REAR BRAKE, NO.1

main47321-37560iXKU60#,64#,65#201107-201204

main47321-37561iXKU60#,64#,65#201204-201205

main47321-37562iXKU650..T4;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKU600,64#,655..DM6,T3,T4201205-201705

main47321-37570iXKC605,645,655201107-201204

main47321-37571iXKC605,645,655201204-201205

main47321-37572iXKC605,645,655..T4201205-201705

main47321-37740iXKC605201905

main47321-37750iXKU605,645,655201905

sub47321-37751

47321GTUBE, REAR BRAKE, FRAME NO.1

main47321-37580iXKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4201107-201705

47322TUBE, REAR BRAKE, NO.2

main47322-37A90iXKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4201107-201608

main47322-37A91iXKC605,XKU605,645,655201905

sub47322-37A92

main47322-37B00iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201505

main47322-37A80iXKU600..IV5201107-201205

main47322-37A81iXKU600..IV5201205-201705

main47322-37G90iXKU605..IV5201905

47323TUBE, REAR BRAKE, NO.3

main47323-37680iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201505

main47323-37690iXKU600..IV5201107-201705

main47323-37B70iXKC605,XKU605,645,655201905

47324TUBE, REAR BRAKE, NO.4

main47324-37380iXKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4201107-201705

47325TUBE, REAR BRAKE, NO.5

main47325-37410iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201505

main47325-37420iXKU600..IV5201107-201705

main47325-37640iXKC605,XKU605,645,655201905

47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

main47351-37130iXKU650..T4;XKU600..T5..30T..CBU;XKU600,640..DM6,T3,T4;XKU600,650..(T3,T5)..IV3201107-201705

47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

main47352-37050iXKU650..T4;XKU600..T5..30T..CBU;XKU600,640..DM6,T3,T4;XKU600,650..(T3,T5)..IV3201107-201705

47353BRACKET, FLEXIBLE HOSE(FOR REAR)

main47353-37110iXKC605,645,655,XKU60#,64#,65#..DCRTK201705

47353BBRACKET, FLEXIBLE HOSE, NO.3

main47353-37150iXKU650..T4;XKU600..T5..30T..CBU;XKU600,640..DM6,T3,T4;XKU600,650..(T3,T5)..IV3201107-201705

47354BBRACKET, FLEXIBLE HOSE, NO.4

main47354-37160iXKU650..T4;XKU600..T5..30T..CBU;XKU600,640..DM6,T3,T4;XKU600,650..(T3,T5)..IV3201107-201705

47371ACLAMP, BRAKE TUBE, NO.1

main47371-37150iXKC605,645,655,XKU60#,64#,65#..DCRTK201705

main47371-37110×3iXKU600..IV5201204-201705

main47371-37140×3iXKU600..IV5201107-201204

47372CLAMP, BRAKE TUBE, NO.2

main47371-37160×2iXKC605,XKU605,645,655201905

47373BCLAMP, BRAKE TUBE, NO.3

main47371-37110iXKC605,XKU605,645,655201905

main47371-37360iXKC605,645,655,XKU60#,64#,65#201107-201204

47391WAY, BRAKE TUBE

main47391-37280iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201505

main47391-37300iXKC605,XKU605,645,655201905

main47391-37670iXKC605,XKU605,645,655201905

main47391-37400supersedes 47391-37310iXKU605..IV5201905

5251

4737137050BRACKET, CONNECTOR

main47371-37050

8271116820WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16820

9012908007

main90129-08007

9046400447

main90464-00447

9046400726

main90464-00726

9046808035

main90468-08035

9048001621

main90480-01621

9048001628

main90480-01628

9095901593

main90959-01593

9095901603

main90959-01603

9095901622

main90959-01622

9155180825

main91551-80825

91611G0820

main91611-G0820

9415180800

main94151-80800

42 parts on this diagram · 14 diagrams in section
