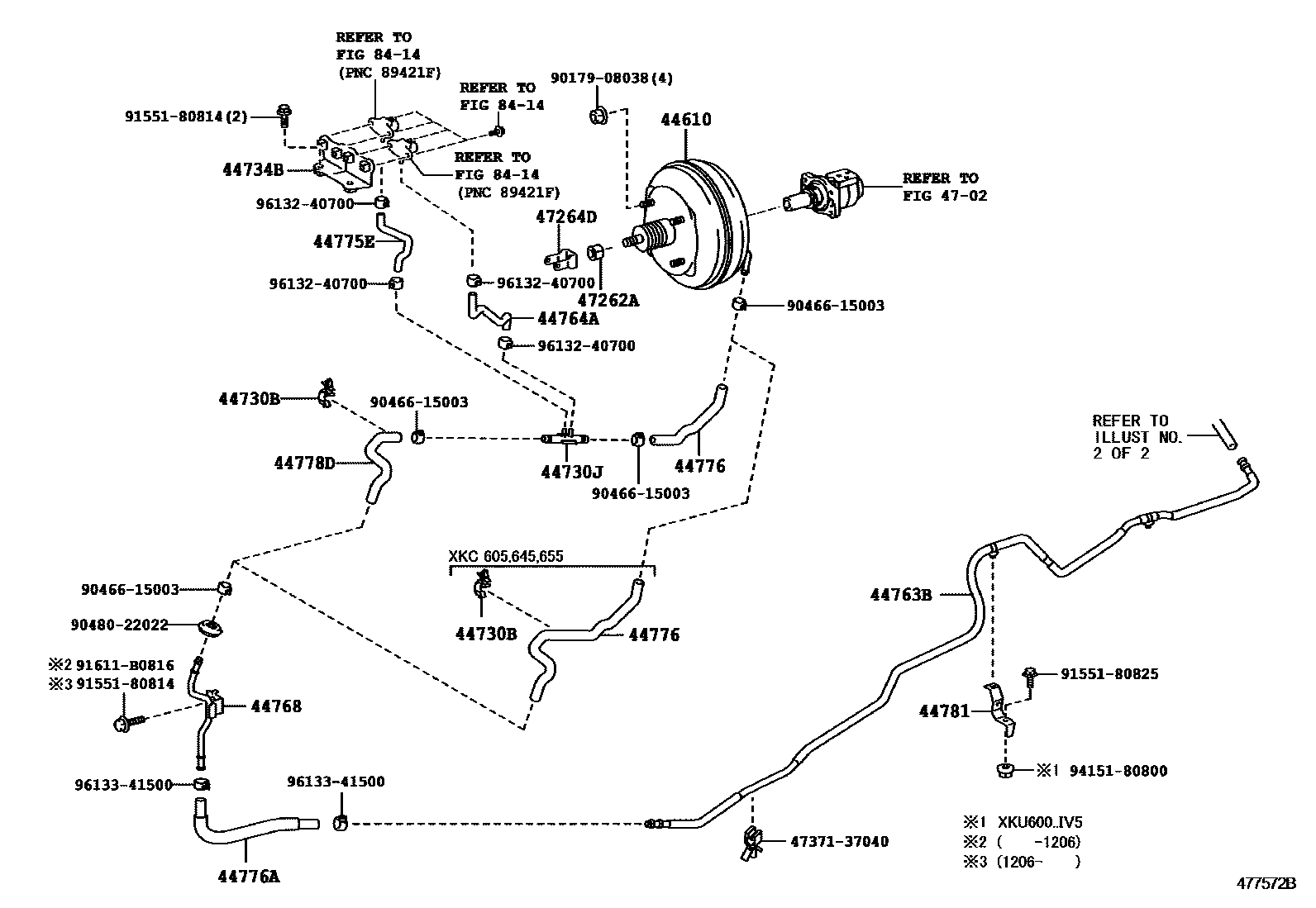

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1

44610BOOSTER ASSY, BRAKE

main44610-37270iXKC655..T3201107-201904

sub44610-37271

main44610-37271iXKC605201905

main44610-37280iXKU605..IV3;XKU605..T4..CBU;XKU650..T4..20T;XKU600,650..(T3,T5)..20T..IV3;XKU600,645,655..(DM6,T3,T4)..20T201107-201705

main44610-37290iXKU650..T3..30T..CBU201107-201705

44730BCLAMP, VACUUM HOSE

main44597-37021iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201705

44730JWAY(FOR BOOSTER VACUUM)

main90414-10043iXKU60#,64#,65#..DCRTK201107-201705

44734BBRACKET, BOOSTER SUPPORT

main44734-37020iXKU605,645,655201107-201705

44763BTUBE, TUBE CONNECTOR TO TUBE CONNECTOR

main44764-37610iXKC655..T3;XKU605..T5..CBU201107-201705

main44764-37850iXKU600..IV5201107-201705

main44764-37B30iXKU650..T3..CBU;XKU600..T5..20T..CBU201107-201705

main44764-37B91iXKC605,XKU605,645,655201905

44764AHOSE, BOOSTER VACUUM

main44776-37330iXKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201705

44768TUBE, BOOSTER VACUUM

main44768-37250iXKC605,XKU605,645,655201107-201705

44775EHOSE, WAY TO CONNECTOR

main44776-37340iXKU60#,64#,65#..DCRTK201107-201705

44776HOSE, BRAKE BOOSTER

main44776-37350iXKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201705

main44776-37370iXKC605201107-201705

44776AHOSE, VACUUM RESERVOIR TO BRAKE BOOSTER

main44776-37170iXKC605,645,655,XKU60#,64#,65#..DCRTK201107-201705

main44776-37190iXKC605,XKU605,645,655201905

44778HOSE, CONNECTOR TO CHECK VALVE

main44778-37060iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201705

44778DHOSE, VACUUM TUBE TO CONNECTOR TUBE

main44778-37260iXKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201705

44781BRACKET, HOSE

main44781-37171iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201705

4702

47262ANUT, MASTER CYLINDER PUSH ROD CLEVIS LOCK

main90179-10065iXKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201705

main94120-41000iXKC605201107-201705

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-42010iXKC655..T3201107-201705

main47264-50010iXKU605,645,655201107-201705

8414

4737137040BRACKET, CONNECTOR

main47371-37040

9017908038

main90179-08038

9046615003

main90466-15003

9048022022

main90480-22022

9155180814

main91551-80814

9155180825

main91551-80825

91611B0816

main91611-B0816

9415180800

main94151-80800

9613240700

main96132-40700

9613341500

main96133-41500

27 parts on this diagram · 5 diagrams in section
