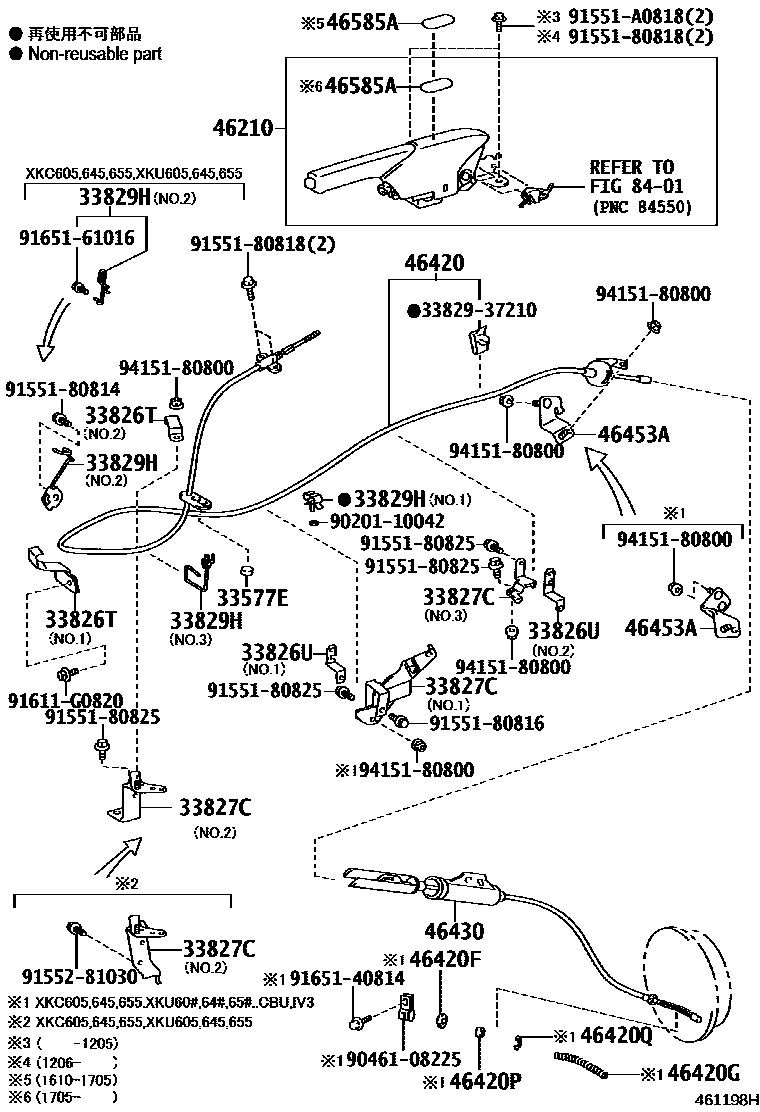

PARKING BRAKE & CABLE

0001 1 0003 1��(������������������) 0004 1��(������������������) 0005 1��(������������������) 0006 1 0007 1 0008 1��(������������������) 0009 1

33577EGROMMET, SHIFT CABLE

main33577-37050iXKC605,645,655,XKU60#,64#,65#..DCRTK201107-201705

33826TBRACKET, TRANSMISSION CONTROL CABLE, NO.2

main33826-37210iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201705

main33826-37580iXKC605,645,655,XKU60#,64#,65#..DCRTK201107-201705

33826UBRACKET, TRANSMISSION CONTROL CABLE, NO.3

main33828-37030iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201705

main33828-37310iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201705

33827CBRACKET, TRANSMISSION CONTROL CABLE, NO.3

main33827-37141iXKU650..T4;XKU600..T5..30T..CBU;XKU600,640..DM6,T3,T4;XKU600,650..(T3,T5)..IV3201107-201705

main33827-37190iXKU600..IV5201107-201705

main33827-37210iXKC605,645,655,XKU60#,64#,65#..DCRTK..(CBU,IV3)201107-201705

main33827-37230iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201705

main33827-37241iXKU655;XKU605..IV3;XKU605..T4..CBU;XKC605,645,655,XKU645..T4201107-201705

33829HCLAMP, TRANSMISSION CONTROL CABLE

main33829-37210iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201705

main33829-37300iXKU600,640,650201107-201705

main33829-37330iXKU655;XKU605..IV3;XKU605..T4..CBU;XKC605,645,655,XKU645..T4201107-201705

main33829-37350iXKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4201107-201705

46210LEVER ASSY, PARKING BRAKE

main46210-37150-C0iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201703

BLACK,TRIM1#

sub46210-37151

sub46211-37021

main46210-37150-C0iXKU600..IV5201107-201703

sub46210-37151

sub46211-37021

main46210-37150-C0iXKU600..IV5201107-201305

sub46210-37151

sub46211-37021

main46211-37021iXKC605,645,655,XKU60#,64#,65#..CBU,IV3201704-201705

main46211-37021-C0iXKC605,645,655,XKU60#,64#,65#..DCRTK..(CBU,IV3)201705

BLACK,TRIM1#

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-37790iXKU600..IV5201107-201305

main46420-37860iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201705

main46420-37C10iXKU600..IV5201305-201705

main46420-37D60iXKC605,XKU605,645,655201905

46420FSEAL, DUST(FOR PARKING BRAKE CABLE)

main90303-10001iXKC605,645,655,XKU60#,64#,65#..DCRTK..(CBU,IV3)201107-201705

46420GSPRING(FOR PARKING CABLE INNER WIRE SET)

main90501-14003iXKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4201107-201705

46420PSPACER, PARKING BRAKE

main90560-08002iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201705

46420QRING, E(FOR PARKING BRAKE CABLE)

main96160-00700iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201705

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-37C80iXKU600..IV5201107-201305

main46430-37D30iXKC605,645,655,XKU60#,64#,65#..DCRTK..(CBU,IV3)201107-201705

main46430-37E60iXKU600..IV5201305-201705

main46430-37K00iXKC605,XKU605,645,655201905

46453ABRACKET, CABLE SUPPORT, NO.3

main46453-37210iXKU600..IV5201107-201705

main46453-37280iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201705

main46453-37441iXKC605,XKU605,645,655201905

46585ALABEL, PARKING BRAKE NOTICE

main46585-37020iXKC605,645,655,XKU60#,64#,65#..CBU,IV3201610-201705

main46585-37020iXKC605,645,655,XKU60#,64#,65#..DCRTK..(CBU,IV3)201705

8401

3382937210SUPPORT, TRANSMISSION CONTROL CABLE

main33829-37210

9020110042

main90201-10042

9046108225

main90461-08225

9155180814

main91551-80814

9155180816

main91551-80816

9155180818

main91551-80818

9155180825

main91551-80825

91551A0818

main91551-A0818

9155281030

main91552-81030

91611G0820

main91611-G0820

9165140814

main91651-40814

9165161016

main91651-61016

9415180800

main94151-80800

28 parts on this diagram · 8 diagrams in section
