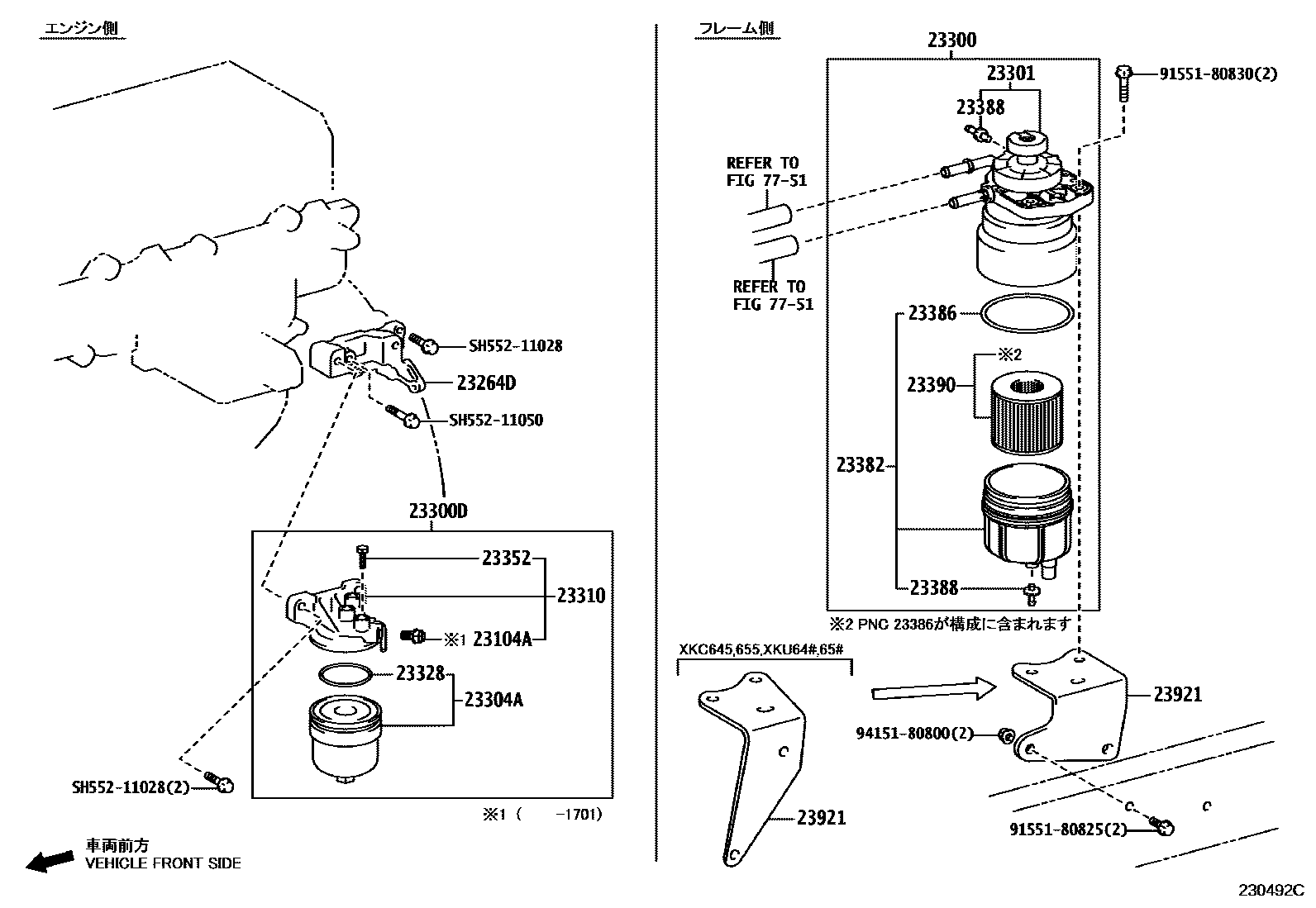

FUEL FILTER

0001 1 0002 1 0003 1������

23104AVALVE SUB-ASSY

main23104-EV010iN04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4201107-201701

23264DBRACKET, FUEL FILTER

main23264-78081iN04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4201107-201705

main23264-78090iN04C..XKC605,XKU605,645,655201905

23300FILTER ASSY, FUEL

main23300-78232supersedes 23300-78224iN04C..XKC605,645,655,XKU60#,64#,65#201107-201311

main23300-78233supersedes 23300-78224iN04C..XKC605,645,655,XKU60#,64#,65#201312-201409

main23300-78234supersedes 23300-78224iN04C..XKC605,645,655,XKU60#,64#,65#201410-201503

main23300-78235supersedes 23300-78226iN04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4201504-201705

main23300-78236supersedes 23300-78226iN04C..XKC605,645,655,XKU60#,64#,65#201804-201902

main23300-78237supersedes 23300-78226iN04C..XKC605,645,655,XKU60#,64#,65#..DCRTK201903

23300DFILTER ASSY, FUEL(FOR DIESEL)

main23300-78420iN04C..XKC605,645,655,XKU60#,64#,65#..DCRTK201705

main23300-78500iN04C..XKC605,XKU605,645,655201905-202009

main23300-78501iN04C..XKC605,XKU605,645,655202010

main23300-E0381iN04C..XKC605,645,655,XKU60#,64#,65#201107-201306

main23300-E0382iN04C..XKC605,645,655,XKU60#,64#,65#201306-201401

main23300-E0570iN04C..XKC655..T3;N04C..XKU650..T3..CBU;N04C..XKU60#..T5..20T..CBU201401-201505

23301BODY SUB-ASSY, FUEL FILTER

main23301-78500iN04C..XKC605,XKU605,645,655201905-202101

main23301-78501iN04C..XKC605,XKU605,645,655202101

main23301-78232supersedes 23301-78223iN04C..XKC605,645,655,XKU60#,64#,65#201107-201304

main23301-78233supersedes 23301-78223iN04C..XKC605,645,655,XKU60#,64#,65#201304-201312

main23301-78234supersedes 23301-78224iN04C..XKC655..T3;N04C..XKU650..T3..CBU;N04C..XKU60#..T5..20T..CBU201312-201505

main23301-78237supersedes 23301-78224iN04C..XKC605,645,655,XKU60#,64#,65#..DCRTK201903

23304AELEMENT SET, FUEL FILTER

main23304-78420iN04C..XKC605,645,655,XKU60#,64#,65#201701-201705

main23304-78500iN04C..XKC605,XKU605,645,655201905-202010

main23304-EV280iN04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4201306-201701

main23304-EV570iN04C..XKC605,XKU605,645,655202010

23310BODY, FUEL FILTER, UPPER

main23310-78420iN04C..XKC605,645,655,XKU60#,64#,65#..DCRTK201705

main23310-EV090iN04C..XKC605,645,655,XKU60#,64#,65#201107-201306

main23310-EV091iN04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4201306-201701

23328GASKET(FOR FUEL FILTER)

main23385-78150iN04C..XKC605,XKU605,645,655202005

main23385-78420iN04C..XKC605,645,655,XKU60#,64#,65#201701-201705

main23385-E0020iN04C..XKC655..T3;N04C..XKU650..T3..CBU;N04C..XKU60#..T5..20T..CBU201107-201505

23352PLUG, BLEEDER

main23388-78420iN04C..XKC605,645,655,XKU60#,64#,65#201701-201705

main23388-EV020iN04C..XKC605,XKU605,645,655201905

mainS233161040iN04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4201107-201701

23382CASE, FUEL FILTER

main23382-78151iN04C..XKC605,XKU605,645,655201905-201912

main23382-78152iN04C..XKC605,XKU605,645,655201912

main23382-78222iN04C..XKC605,645,655,XKU60#,64#,65#201107-201410

main23382-78223iN04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4201410-201705

23386GASKET, FUEL FILTER CASE

main23386-78220iN04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4201107-201705

23388PLUG, FUEL FILTER DRAIN

main23388-78222×2iN04C..XKC655..T3;N04C..XKU650..T3..CBU;N04C..XKU60#..T5..20T..CBU201107-201505

main23388-EV020iN04C..XKC605,XKU605,645,655201905

23390ELEMENT ASSY, FUEL FILTER

main23304-78150iN04C..XKC605,XKU605,645,655201905

main23304-78222iN04C..XKC605,645,655,XKU60#,64#,65#201209-201504

main23304-78225iN04C..XKC605,645,655,XKU60#,64#,65#..DCRTK201705

main23390-78221iN04C..XKC605,645,655,XKU60#,64#,65#201107-201209

23921SUPPORT, FUEL FILTER

main23921-78051iN04C..XKC605,XKU60#..DCRTK201705

main23921-78560iN04C..XKC605,XKU605,645,655201905-202004

main23921-78561iN04C..XKC605,XKU605,645,655202005

main23921-78610iN04C..XKU640,655;N04C..XKU650..T3..IV3;N04C..XKC645,655,XKU645,650..T4201107-201705

7751FUEL TANK & TUBE

→ Go to FIG 77-51

9155180825

main91551-80825

9155180830

main91551-80830

9415180800

main94151-80800

SH55211028

mainSH552-11028

SH55211050

mainSH552-11050

20 parts on this diagram · 3 diagrams in section
