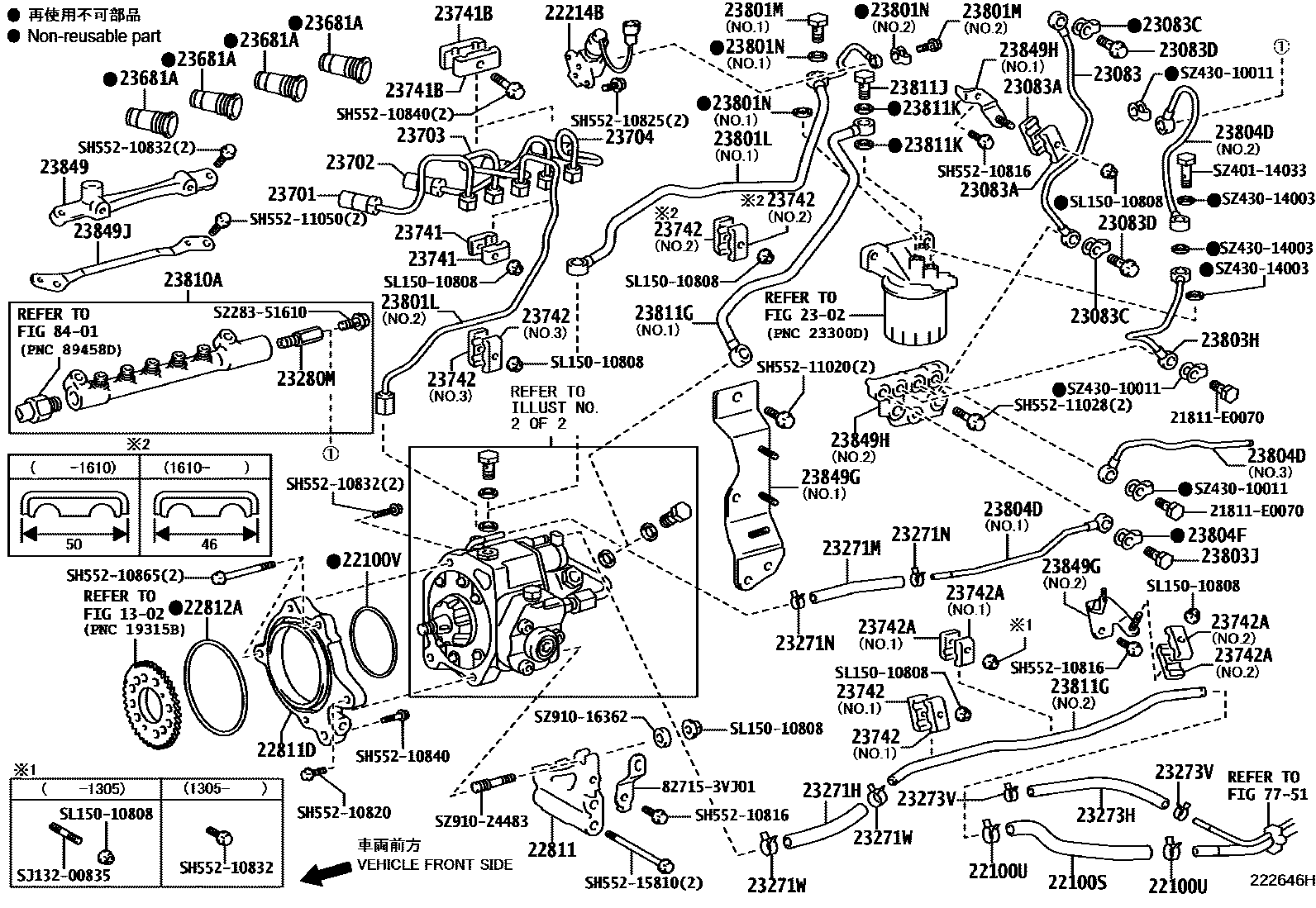

INJECTION PUMP ASSEMBLY

0001 1 0002 1 0003 1 0004 1 0005 1

1302CAMSHAFT & VALVE

→ Go to FIG 13-02

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-78270iN04C..XKC605,XKU605,645,655201905

main22100-E0540iN04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4201107-201611

main22100-E0541iN04C..XKC605,645,655,XKU60#,64#,65#201612-201705

22100SHOSE, FUEL(FOR INJECTION PUMP TO FUEL PIPE)

main23271-78530iN04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..T4201107-201705

main23271-78540iN04C..XKU600..IV5201705

main23271-78591iN04C..XKC605,XKU605,645,655201905

22100UCLIP, HOSE FUEL(FOR INJECTION PUMP)

main90466-16004×2iN04C..XKC605,XKU605,645,655201905

main90467-18008×2iN04C..XKC655..T3;N04C..XKU650..T3..CBU;N04C..XKU60#..T5..20T..CBU201107-201505

22100VRING, O(FOR INJECTION PUMP)

mainSN73210493iN04C..XKC655..T3;N04C..XKU650..T3..CBU;N04C..XKU60#..T5..20T..CBU201107-201505

22214BVALVE ASSY, FUEL ADDITION CUT

mainS2210E0021iN04C..XKC605,645,655,XKU60#,64#,65#201107-201112

mainS2210E0022iN04C..XKC605,645,655,XKU60#,64#,65#201112-201404

mainS2210E0023iN04C..XKC605,645,655,XKU60#,64#,65#201405-201411

mainS2210E0024iN04C..XKC655..T3;N04C..XKU650..T3..CBU;N04C..XKU60#..T5..20T..CBU201412-201505

mainS2210E0060iN04C..XKC605,XKU605,645,655201905

mainS2210E0110iN04C..XKC605,645,655,XKU60#,64#,65#201607-201705

22811STAY, INJECTION PUMP, NO.1

main22811-78141iN04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4201107-201705

22811DSTAY, INJECTION PUMP, NO.2

mainS225122060iN04C..XKC605,645,655,XKU60#,64#,65#..DCRTK201705

22812ARING, O

mainSN73210793iN04C..XKC605,645,655,XKU60#,64#,65#..DCRTK201705

2302FUEL FILTER

→ Go to FIG 23-02

23083PIPE SUB-ASSY, NOZZLE LEAKAGE, NO.3

main23816-78121iN04C..XKC605,XKU605,645,655201905

main23816-E0330iN04C..XKC605,645,655,XKU60#,64#,65#201107-201504

main23816-E0331iN04C..XKC605,645,655,XKU60#,64#,65#201505-201705

23083ACLAMP, NOZZLE LEAKAGE

mainS799043390×2iN04C..XKC605,XKU605,645,655201905

23083CGASKET(NOZZLE LEKAGE PIPE NO.3)

mainSZ43008013×2iN04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4201107-201705

23083DBOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)

main21811-E0040×2iN04C..XKC605,645,655,XKU60#,64#,65#201210-201303

main21811-E0060×2iN04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4201303-201705

mainSZ40108003×2iN04C..XKC605,645,655,XKU60#,64#,65#201107-201210

23271HHOSE, FUEL, NO.1

main23271-E0540iN04C..XKC605,XKU605,645,655201905

23271MHOSE, FUEL

main95337-06012iN04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4201107-201705

23271NCLIP, HOSE

main21576-E0010×2iN04C..XKC605,XKU605,645,655201905-202101

main21576-E0170×2iN04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4201107-201705

mainS2304EW041×2iN04C..XKC605,XKU605,645,655202102

23271WCLIP(FOR FUEL HOSE NO.1)

mainSZ46618001×2iN04C..XKC655..T3;N04C..XKU650..T3..CBU;N04C..XKU60#..T5..20T..CBU201107-201505

23273HHOSE, FUEL, NO.2

main23273-78570iN04C..XKC605,645,655,XKU60#,64#,65#..DCRTK..(CBU,IV3)201705

main23273-78580iN04C..XKU600..IV5201107-201705

main23273-78792iN04C..XKC605,XKU605,645,655201905

23273VCLIP(FOR FUEL HOSE NO.2)

main96132-51300×2iN04C..XKC655..T3;N04C..XKU650..T3..CBU;N04C..XKU60#..T5..20T..CBU201107-201505

main96133-41301×2iN04C..XKC605,XKU605,645,655201905

23280MLIMITTER ASSY, FUEL PRESSURE

main23280-E0020iN04C..XKC655..T3;N04C..XKU650..T3..CBU;N04C..XKU60#..T5..20T..CBU201107-201505

23681ASEAL, NOZZLE HOLDER

main23681-78030×4iN04C..XKC605,XKU605,645,655202010

mainS230741070×4iN04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4201107-201705

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-78160iN04C..XKC655..T3;N04C..XKU650..T3..CBU;N04C..XKU60#..T5..20T..CBU201107-201505

main23701-78170iN04C..XKC605,XKU605,645,655201905

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-78160iN04C..XKC655..T3;N04C..XKU650..T3..CBU;N04C..XKU60#..T5..20T..CBU201107-201505

main23702-78170iN04C..XKC605,XKU605,645,655201905

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-78150iN04C..XKC655..T3;N04C..XKU650..T3..CBU;N04C..XKU60#..T5..20T..CBU201107-201505

main23703-78151iN04C..XKC605,645,655,XKU60#,64#,65#201609-201705

main23703-78160iN04C..XKC605,XKU605,645,655201905

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-78150iN04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4201107-201602

main23704-78151iN04C..XKC605,645,655,XKU60#,64#,65#201603-201705

main23704-78160iN04C..XKC605,XKU605,645,655201905

23741CLAMP, INJECTION PIPE, NO.1

main21576-E0010×2iN04C..XKC605,XKU605,645,655201905-202101

mainS2304EW041×2iN04C..XKC605,XKU605,645,655202102

mainS799041240×2iN04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4201107-201705

23741BCLAMP, INJECTION PIPE

main21576-E0010×4iN04C..XKC605,XKU605,645,655201905-202101

main21576-E0020×2iN04C..XKC605,XKU605,645,655201905

mainS2304E0010×4iN04C..XKC655..T3;N04C..XKU650..T3..CBU;N04C..XKU60#..T5..20T..CBU201107-201505

mainS2304EW041×4iN04C..XKC605,XKU605,645,655202102

23742CLAMP, INJECTION PIPE, NO.2

mainS2304E0020×2iN04C..XKC605,645,655,XKU60#,64#,65#201107-201610

mainS799041021×2iN04C..XKC605,645,655,XKU60#,64#,65#..DCRTK201705

mainS799042150×2iN04C..XKC605,645,655,XKU60#,64#,65#201107-201705

mainS799043390×2iN04C..XKC605,645,655,XKU60#,64#,65#201107-201705

23742ACLAMP, INJECTION PIPE, NO.3

mainS799042180×2iN04C..XKC655..T3;N04C..XKU650..T3..CBU;N04C..XKU60#..T5..20T..CBU201107-201505

mainS799044090×2iN04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4201107-201705

23801LPIPE SUB-ASSY, FUEL(FOR FUEL FILTER TO INJECTION PUMP)

main23801-78150iN04C..XKC605,645,655,XKU60#,64#,65#..DCRTK201705

main23801-78161iN04C..XKC605,645,655,XKU60#,64#,65#201107-201201

main23801-78162iN04C..XKC605,645,655,XKU60#,64#,65#201201-201504

main23801-78163iN04C..XKC605,645,655,XKU60#,64#,65#201505-201507

main23801-78164iN04C..XKC605,645,655,XKU60#,64#,65#201508-201610

main23801-78180iN04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4201107-201705

main23801-78230iN04C..XKC605,XKU605,645,655201905-201912

main23801-78231iN04C..XKC605,XKU605,645,655202001

main23801-78241iN04C..XKC605,XKU605,645,655201905

23801MBOLT, UNION

mainSZ40110019iN04C..XKC655..T3;N04C..XKU650..T3..CBU;N04C..XKU60#..T5..20T..CBU201107-201505

mainSZ40114004iN04C..XKC605,645,655,XKU60#,64#,65#..DCRTK201705

23801NGASKET

mainSZ20914017×2iN04C..XKC605,XKU605,645,655201905

mainSZ43010011iN04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4201107-201705

mainSZ43014003×2iN04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4201107-201705

23803HPIPE SUB-ASSY, FUEL RETURN

main23816-78140iN04C..XKC605,XKU605,645,655201905

main23816-E0340iN04C..XKC605,645,655,XKU60#,64#,65#201107-201112

main23816-E0341iN04C..XKC605,645,655,XKU60#,64#,65#201112-201504

main23816-E0342iN04C..XKC605,645,655,XKU60#,64#,65#201505-201705

23803JBOLT, UNION(FOR FUEL RETURN PIPE)

main21811-E0070iN04C..XKC655..T3;N04C..XKU650..T3..CBU;N04C..XKU60#..T5..20T..CBU201503-201505

mainSZ40110004iN04C..XKC605,645,655,XKU60#,64#,65#201107-201502

23804DPIPE SUB-ASSY, FUEL, NO.4

main23816-78130iN04C..XKC605,XKU605,645,655201905-202101

main23816-78131iN04C..XKC605,XKU605,645,655202102

main23816-78150iN04C..XKC605,645,655,XKU60#,64#,65#201107-201504

main23816-78151iN04C..XKC605,645,655,XKU60#,64#,65#..DCRTK201705

main23816-78200iN04C..XKC605,XKU605,645,655201905

main23816-E0351iN04C..XKC605,645,655,XKU60#,64#,65#201107-201504

main23816-E0352iN04C..XKC605,645,655,XKU60#,64#,65#201505-201705

main23816-E0371iN04C..XKC605,645,655,XKU60#,64#,65#..DCRTK201705

23804FGASKET(FOR FUEL PIPE NO.4)

mainSZ43010011iN04C..XKC655..T3;N04C..XKU650..T3..CBU;N04C..XKU60#..T5..20T..CBU201107-201505

23810ARAIL ASSY, COMMON

main23810-78060iN04C..XKC605,XKU605,645,655201905

main23810-E0240iN04C..XKC655..T3;N04C..XKU650..T3..CBU;N04C..XKU60#..T5..20T..CBU201107-201505

23811GPIPE, FUEL, NO.1

main23811-78300iN04C..XKC605,XKU605,645,655201905-201908

main23811-78311iN04C..XKC605,XKU605,645,655201905

main23811-78340iN04C..XKC605,XKU605,645,655201909

main23811-E0851iN04C..XKC605,645,655,XKU60#,64#,65#201107-201504

main23811-E0852iN04C..XKC605,645,655,XKU60#,64#,65#201505-201507

main23811-E0853iN04C..XKC605,645,655,XKU60#,64#,65#201508-201610

main23811-E0871iN04C..XKC605,645,655,XKU60#,64#,65#..DCRTK201705

main23811-E0K50iN04C..XKC605,645,655,XKU60#,64#,65#201705-201904

23811JBOLT, UNION

mainSZ40114004iN04C..XKC655..T3;N04C..XKU650..T3..CBU;N04C..XKU60#..T5..20T..CBU201107-201505

23811KGASKET

mainSZ43014003×2iN04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4201107-201705

23849SUPPORT, FUEL

main23849-E0600iN04C..XKC605,645,655,XKU60#,64#,65#..DCRTK201705

23849GSUPPORT, FUEL PIPE

main23809-78200iN04C..XKC605,XKU605,645,655201905

main23809-78210iN04C..XKC605,XKU605,645,655201905

main23809-E0400iN04C..XKC655..T3;N04C..XKU650..T3..CBU;N04C..XKU60#..T5..20T..CBU201107-201505

main23809-E0410iN04C..XKC605,645,655,XKU60#,64#,65#..DCRTK201705

23849HSUPPORT, FUEL PIPE

main23809-78080iN04C..XKC605,645,655,XKU60#,64#,65#..DCRTK201705

main23809-78100iN04C..XKC655..T3;N04C..XKU650..T3..CBU;N04C..XKU60#..T5..20T..CBU201107-201505

main23849-78210iN04C..XKC605,645,655,XKU60#,64#,65#..DCRTK201705

main23849-78240iN04C..XKC605,XKU605,645,655201905

23849JSUPPORT, FUEL PIPE(FOR RAIL ASSY, COMMON)

main23849-78220iN04C..XKC655..T3;N04C..XKU650..T3..CBU;N04C..XKU60#..T5..20T..CBU201107-201505

7751FUEL TANK & TUBE

→ Go to FIG 77-51

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

21811E0070BOLT, UNION NIPPLE

main21811-E0070

827153VJ01BRACKET,WIRING HARNESS CLAMP

main82715-3VJ01

S228351610

mainS2283-51610

SH55210816

mainSH552-10816

SH55210820

mainSH552-10820

SH55210825

mainSH552-10825

SH55210832

mainSH552-10832

SH55210840

mainSH552-10840

SH55210865

mainSH552-10865

SH55211020

mainSH552-11020

SH55211028

mainSH552-11028

SH55211050

mainSH552-11050

SH55215810

mainSH552-15810

SJ13200835

mainSJ132-00835

SL15010808

mainSL150-10808

SZ40114033

mainSZ401-14033

SZ43010011WASHER, SOFT, NO.1

mainSZ430-10011

SZ43014003WASHER, SOFT, NO.1

mainSZ430-14003

SZ91016362

mainSZ910-16362

SZ91024483

mainSZ910-24483

67 parts on this diagram · 5 diagrams in section
