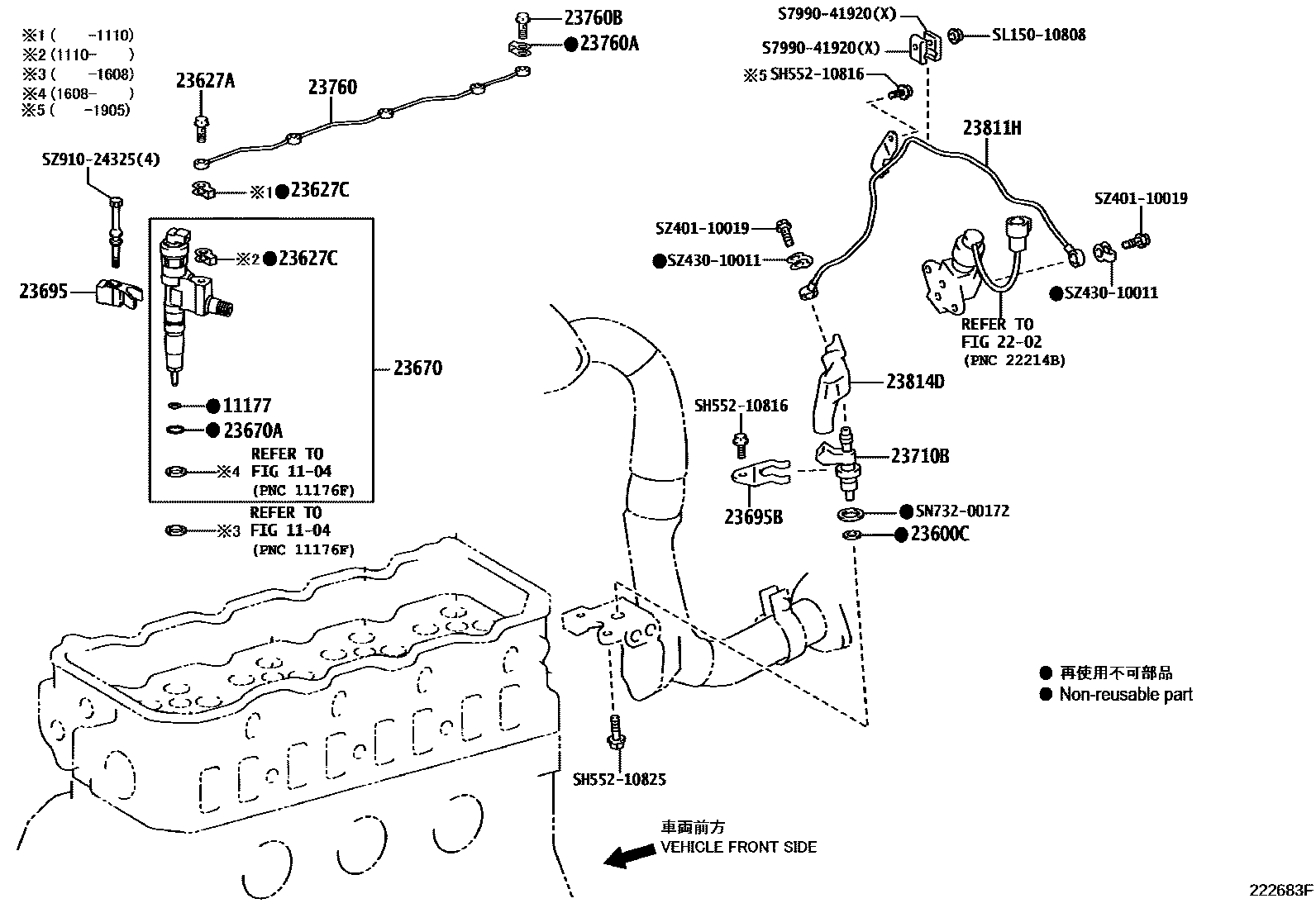

INJECTION NOZZLE

1104CYLINDER HEAD

→ Go to FIG 11-04

11177GASKET, INJECTION NOZZLE SEAT

main23682-E0050×4iN04C..XKC655..T3;N04C..XKU650..T3..CBU;N04C..XKU60#..T5..20T..CBU201107-201505

2202INJECTION PUMP ASSEMBLY

→ Go to FIG 22-02

23600CGASKET(FOR HOLDER & NOZZLE SET)

mainS236611340iN04C..XKC605,645,655,XKU60#,64#,65#..DCRTK201705

23627ASCREW, FOLLOW(FOR NOZZLE)

main21811-E0050×4iN04C..XKC655..T3;N04C..XKU650..T3..CBU;N04C..XKU60#..T5..20T..CBU201210-201505

mainS228351570×4iN04C..XKC605,645,655,XKU60#,64#,65#201107-201210

23627CWASHER(FOR NOZZLE)

mainSZ20908024×4iN04C..XKC605,645,655,XKU60#,64#,65#..DCRTK201705

23670INJECTOR ASSY

main23670-E9250×4iN04C..XKC605,645,655,XKU60#,64#,65#201107-201109

main23670-E9260×4iN04C..XKC655..T3;N04C..XKU650..T3..CBU;N04C..XKU60#..T5..20T..CBU201110-201505

main23670-E9261×4iN04C..XKC605,645,655,XKU60#,64#,65#201508-201608

main23670-E9262×4iN04C..XKC605,645,655,XKU60#,64#,65#201608-201702

main23670-E9263×4iN04C..XKC605,645,655,XKU60#,64#,65#201702-201705

main23670-E9301×4iN04C..XKC605,XKU605,645,655201905

23670ARING, O(FOR INJECTOR ASSY)

main15518-E0010×4iN04C..XKC605,645,655,XKU60#,64#,65#201602-201702

main15518-E0011×4iN04C..XKC605,645,655,XKU60#,64#,65#201702-201705

mainSZ30119001×4iN04C..XKC655..T3;N04C..XKU650..T3..CBU;N04C..XKU60#..T5..20T..CBU201107-201505

23695CLAMP, NOZZLE HOLDER, NO.1

mainS111951140×4iN04C..XKC605,645,655,XKU60#,64#,65#..DCRTK201705

23695BCLAMP, NOZZLE HOLDER, NO.2

main23695-E0080iN04C..XKC605,645,655,XKU60#,64#,65#..DCRTK201705

23710BINJECTOR ASSY, EXHAUST FUEL ADDITION

main23710-E0020iN04C..XKC605,645,655,XKU60#,64#,65#201705-201905

main23710-E0030iN04C..XKC605,XKU605,645,655201905-202001

main23710-E0031iN04C..XKC605,XKU605,645,655202002

23760PIPE ASSY, NOZZLE LEAKAGE

main23708-78031iN04C..XKC605,XKU605,645,655201905

mainS230812630iN04C..XKC655..T3;N04C..XKU650..T3..CBU;N04C..XKU60#..T5..20T..CBU201107-201505

23760AGASKET

mainSZ20908024iN04C..XKC605,XKU605,645,655201905

23760BBOLT, UNION(FOR NOZZLE LEAKAGE PIPE)

main21811-E0060iN04C..XKC605,645,655,XKU60#,64#,65#..DCRTK201705

mainSZ40108003iN04C..XKC605,645,655,XKU60#,64#,65#201107-201210

23811HPIPE, FUEL, NO.1

main23801-78251iN04C..XKC605,XKU605,645,655201905

main23801-E0300iN04C..XKC605,645,655,XKU60#,64#,65#201107-201201

main23801-E0301iN04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4201201-201705

23814DPIPE, FUEL DELIVERY

main23814-E0620iN04C..XKC655..T3;N04C..XKU650..T3..CBU;N04C..XKU60#..T5..20T..CBU201107-201505

main23814-E0621iN04C..XKC605,645,655,XKU60#,64#,65#..DCRTK201707

S799041920CLIP SUB-ASSY

mainS7990-41920

SH55210816

mainSH552-10816

SH55210825

mainSH552-10825

SL15010808

mainSL150-10808

SN73200172

mainSN732-00172

SZ40110019

mainSZ401-10019

SZ43010011WASHER, SOFT, NO.1

mainSZ430-10011

SZ91024325

mainSZ910-24325

24 parts on this diagram · 1 diagram in section
