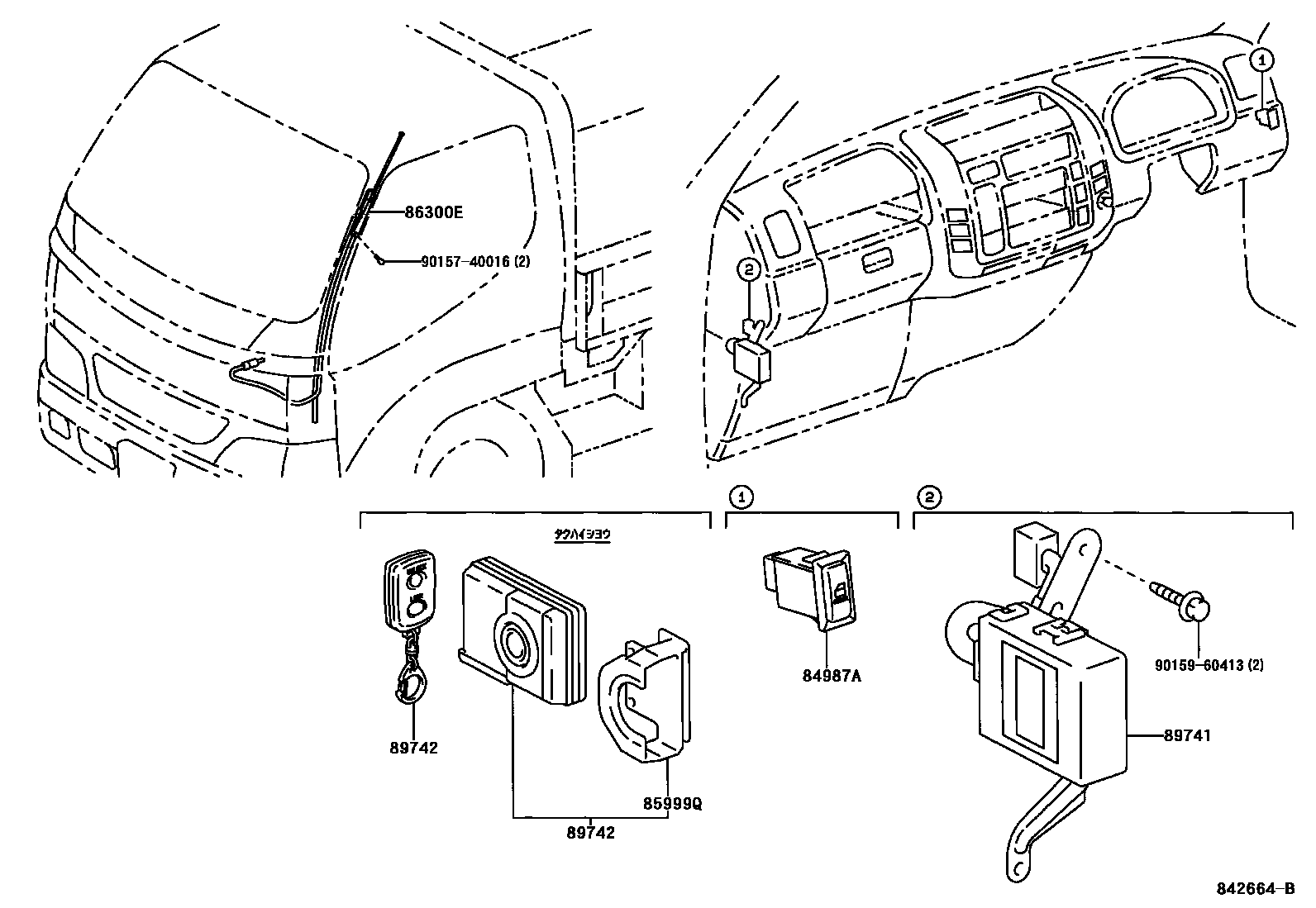

WIRELESS DOOR LOCK

0001 1 0002 1 0003 1

84987ASWITCH, KEYLESS ENTRY CANCEL

main84987-37010iXKU304,344200310-200610

85999QBRACKET, DOOR CONTROL TRANSMITTER

main85999-36040iXKU304,344200310-200610

86300EANTENNA ASSY, WIRELESS DOOR LOCK

main86300-37070iXKU304,344200310-200609

main86300-37110iXKU30#,338,34#,508200610

main86300-89130iXKU304..6FC;XKU304..5F..DCRUE;XKU308,338,34#,508200610

main86300-89131iXKU304..5F..DCRTJ200801

89741RECEIVER, DOOR CONTROL

main89741-37040iXKU304,344200310-200610

main89741-37050iXKU344..20T200505-200610

89742TRANSMITTER, DOOR CONTROL

main89742-37010iXKU344..20T200505-200610

main89742-37020iXKU30#,338,34#,508200610

DUTRO

main89742-37040iXKU30#,338,34#,508200610

9015740016

main90157-40016

9015960413

main90159-60413

7 parts on this diagram · 3 diagrams in section
