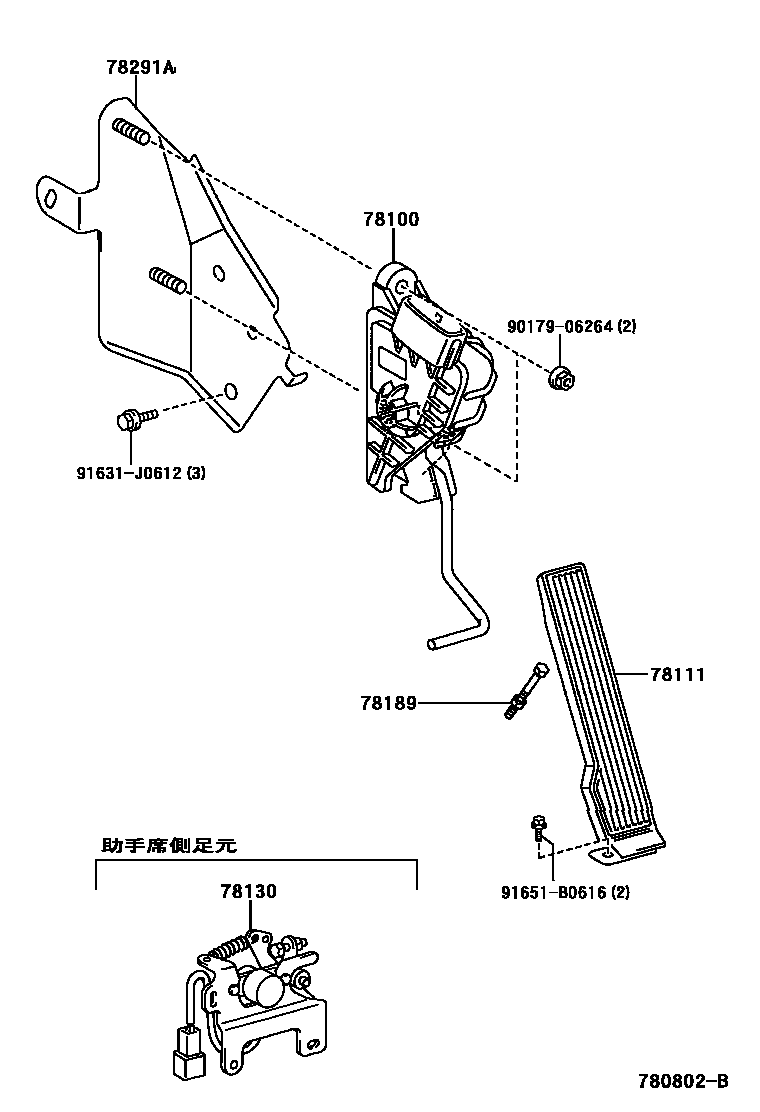

ACCELERATOR LINK

0001 1 0002 1����� ��� 0003 1

78100LINK ASSY, ACCELERATOR

main78100-37750iXKU304,344200310-200610

78111PEDAL, ACCELERATOR

main78110-95410iXKU304,344200310-200610

78130BELLCRANK ASSY, ACCELERATOR

main78130-37130iXKU304,344200310-200311

main78130-37131iXKU30#,338,34#,508200610

78189BOLT, ACCELERATOR PEDAL STOPPER

main78208-37080iXKU304,344200310-200610

78291ABRACKET, ACCELERATOR LINK

main78291-37030iXKU304,344200310-200610

main78291-37040iXKU304200505-200610

main78291-37070iXKU30#,338,34#,508..5F200610

main78291-37090iXKU30#,344,508..6FC200801

9017906264

main90179-06264

91631J0612

main91631-J0612

91651B0616

main91651-B0616

8 parts on this diagram · 3 diagrams in section
