SEAT BELT

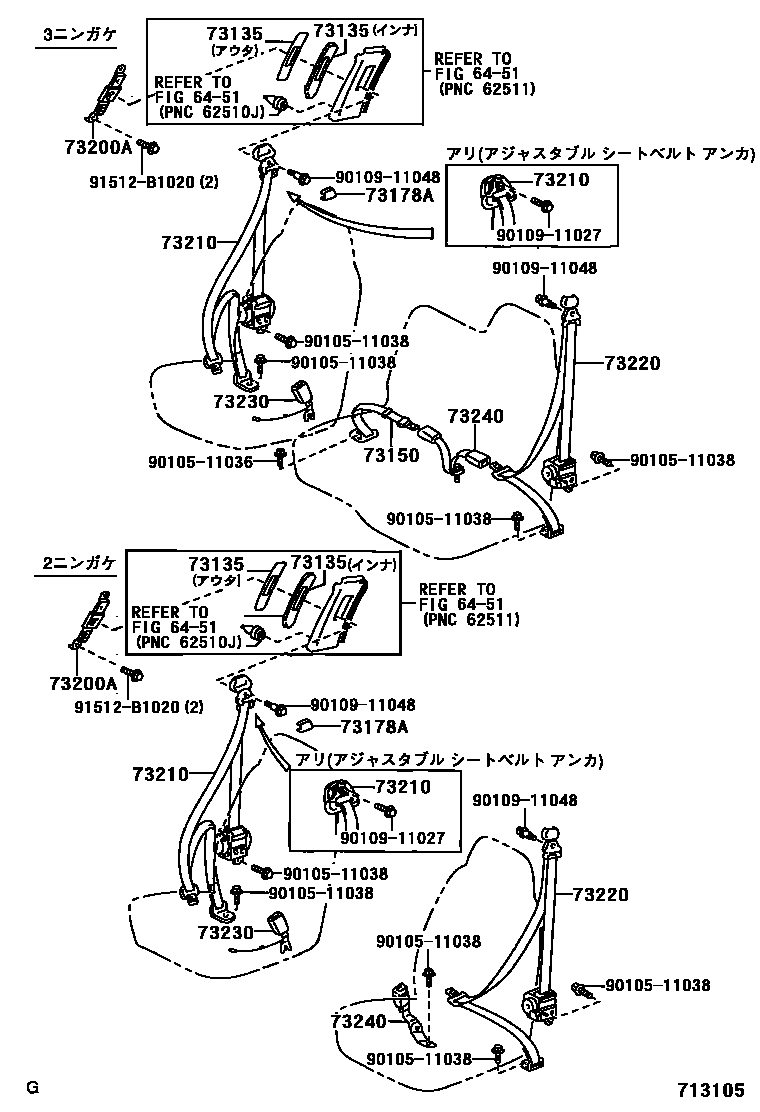

Parts diagram

6451INSIDE TRIM BOARD

→ Go to FIG 64-51

73135COVER, SHOULDER BELT ANCHORAGE PLATE

main73135-35010-B1i200310-200610

main73135-35020-B1i200310-200610

73150BELT ASSY, FRONT SEAT LAP TYPE, CENTER

main73150-37030-B0i200310-200610

GRAY,TRIM1#

main73150-37030-B2i200908-201106

GRAY,TRIM1#

73178ACAP, SEAT BELT ANCHOR COVER

main73178-33020-B1i200310-200610

MD.CHARCOAL,TRIM1#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-34030i200310-200610

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-37190-B0i200310-200610

main73210-37190-B1i200908-201106

main73210-37200-B0i200310-200610

main73210-37200-B1i200908-201106

main73210-37210-B0i200310-200610

GRAY,TRIM1#

main73210-37210-B1i200908-201106

GRAY,TRIM1#

main73210-37220-B0i200310-200610

main73210-37220-B1i200908-201106

73220BELT ASSY, FRONT SEAT OUTER, LH

main73210-37210-B0i200310-200610

GRAY,TRIM1#

main73210-37210-B1i200908-201106

GRAY,TRIM1#

main73210-37220-B0i200310-200610

main73210-37220-B1i200908-201106

main73220-37010-B0i200610-200908

main73220-37010-B1i200908-201106

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-37090-B0i200310-200610

DK.CHARCOAL,TRIM1#

main73230-37230-B0i200610-201106

DK.CHARCOAL,TRIM1#

73240BELT ASSY, FRONT SEAT INNER, LH

main73240-37160-B1i200610-200901

main73240-37161-B1i200902-200908

main73240-37161-B5i200908-201106

main73240-37170-B0i200610-200901

main73240-37171-B0i200902-200908

main73240-37171-B3i200908-201106

main73240-37180-B0i200610-201106

main73240-37190-B1i200310-200610

9010511036

main90105-11036

9010511038

main90105-11038

9010911027

main90109-11027

9010911048

main90109-11048

91512B1020

main91512-B1020

14 parts on this diagram · 2 diagrams in section
