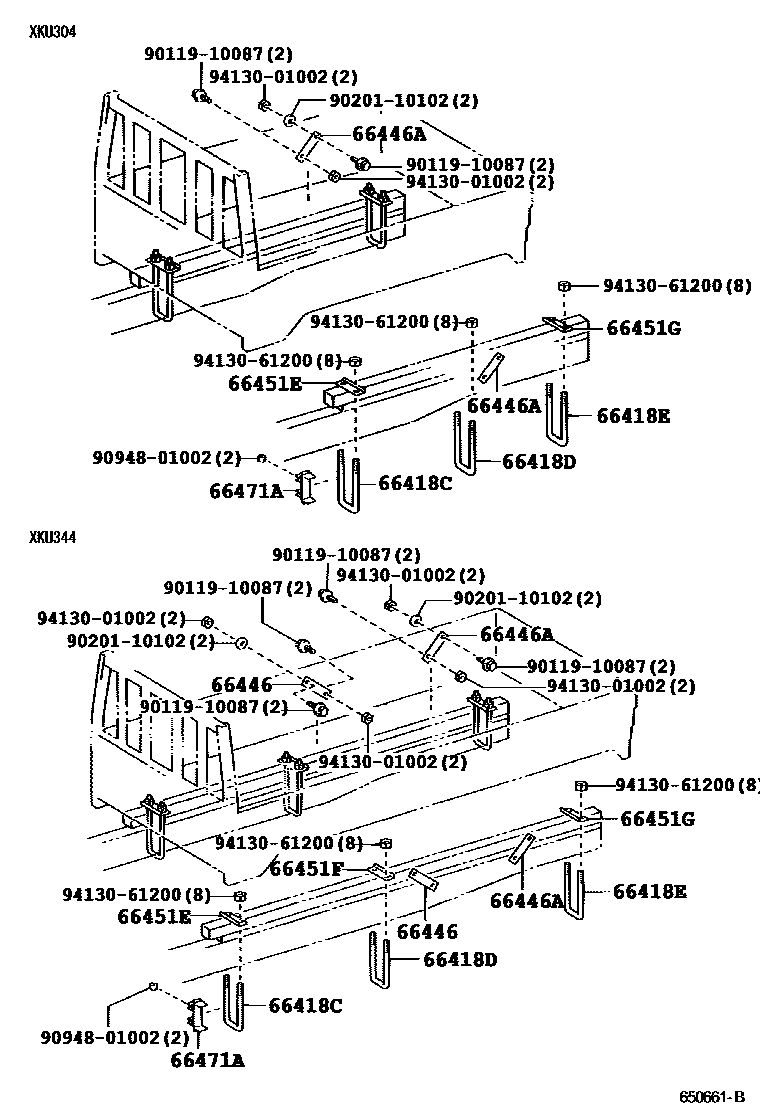

REAR BODY MOUNTING

0001 1 0002 1 0003 1

66418CBOLT, U, FRONT

main90117-12040×2iXKU304200406-200610

main90117-12041×2iXKU508..T4..5F..DCRUE;XKU308,34#,508..(T3,T5)..5F200610

66418DBOLT, U, CENTER

main90117-12038×2iXKU338200908

main90117-12040×2iXKU308,508..T5;XKU508..T4..5F..DCRUE200610

main90117-12041×2iXKU34#..T3..5F200610

66418EBOLT, U, REAR

main90117-12038×2iXKU304200406-200610

main90117-12039×2iXKU344200406-200610

66446BRACE, FRAME FLOOR

main66446-92803×2iXKU338200908

main66447-92803×2iXKU34#..T3..5F200610

66446ABRACE, FRAME TO REAR BODY FLOOR

main66446-37090×2iXKU348..T3200610

main66446-92701×2iXKU308,508..T5;XKU508..T4..5F..DCRUE200610

main66447-92803×2iXKU344200406-200610

66451EPLATE, U BOLT, FRONT

main66451-37030×2iXKU338,508..T4..5F..DCRUE;XKU308,34#,508..(T3,T5)..5F200610

66451FPLATE, U BOLT, CENTER

main66451-37030×2iXKU344200406-200610

66451GPLATE, U BOLT, REAR

main66451-37030×2iXKU304,344200406-200610

66471AREINFORCEMENT, FRAME U BOLT

main66405-37120×2iXKU304,344200406-200610

main66471-37220×2iXKU308,348,508..T3,T5;XKU508..T4..5F..DCRUE200610

main66471-37230×2iXKU308,348,508..T3,T5;XKU508..T4..5F..DCRUE200610

9011910087

main90119-10087

9020110102

main90201-10102

9094801002

main90948-01002

9413001002

main94130-01002

9413061200

main94130-61200

14 parts on this diagram · 3 diagrams in section
