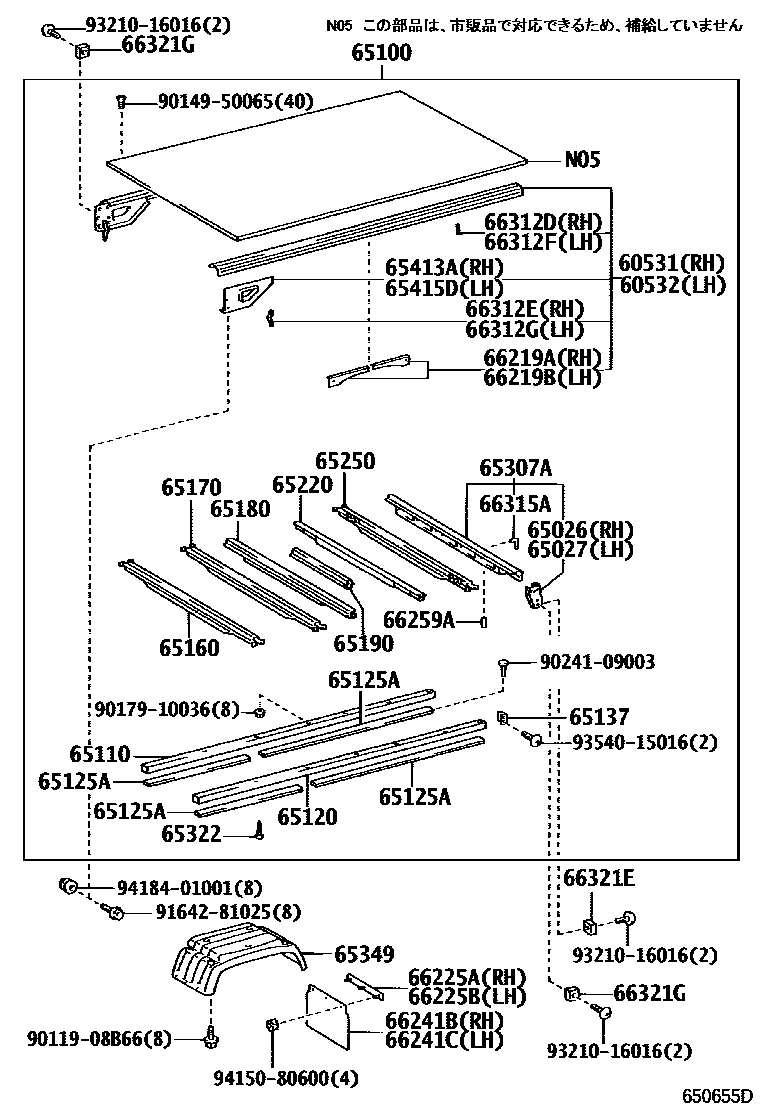

REAR BODY FLOOR & FENDER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

60531FRAME SUB-ASSY, FLOOR SIDE, RH

main60531-37610iXKU508..T4..5F200908

main60531-37670iXKU338200908

main60531-37680iXKU34#..T3..5F200610

main65303-37A30iXKU308,508..T5200610

60532FRAME SUB-ASSY, FLOOR SIDE, LH

main60532-37610iXKU508..T4..5F200908

main60532-37670iXKU338200908

main60532-37680iXKU34#..T3..5F200610

main65304-37A20iXKU308,508..T5200610

65026BRACKET SUB-ASSY, GATE RUBBER BUMPER, RH

main65026-37020iXKU304,344200406-200610

65027BRACKET SUB-ASSY, GATE RUBBER BUMPER, LH

main65027-37020iXKU304,344200406-200610

65100FLOOR ASSY, REAR BODY

main65100-37D50iXKU344200406-200505

***

main65100-37G10iXKU304200406-200505

***

main65100-37K90iXKU338200908-201106

main65100-37L60iXKU344..20T200505-200610

***

main65100-37L70iXKU344..30T200505-200610

***

main65100-37P50iXKU304200505-200610

***

main65100-37T50iXKU308,508..T5200610-201106

main65100-37V00iXKU508..T4..5F200908-201106

65110SILL ASSY, MAIN, RH

main65110-37B30iXKU338200908

main65110-37B70iXKU34#..T3..5F200610

main65110-37D20iXKU304200406-200610

main65110-37D60iXKU308,508..T5200610

main65110-37E10iXKU508..T4..5F200908

65120SILL ASSY, MAIN, LH

main65120-37B30iXKU338200908

main65120-37B70iXKU344200406-200610

main65120-37D20iXKU304200406-200610

main65120-37D60iXKU308,508..T5200610

main65120-37E10iXKU508..T4..5F200908

65125ASHIM, MAIN SILL, LOWER NO.1

main65125-37480×2iXKU338200908

main65125-37540×2iXKU344200406-200610

main65127-37370×3iXKU34#..T3..5F200610

main65127-37420iXKU304200406-200610

main65127-37480×2iXKU308,508..T5;XKU508..T4..5F..DCRUE200610

main65127-37540iXKU338200908

65137COVER, MAIN SILL END

main65137-37030×2iXKU304,344200406-200610

65160SILL ASSY, CROSS, NO.2

main65160-37140iXKU344200406-200610

main65160-37370iXKU304200406-200610

65170SILL ASSY, CROSS, NO.2

main65160-37230iXKU304200406-200610

main65160-37260iXKU344200406-200610

main65240-37280iXKU308,508..T5;XKU508..T4..5F..DCRUE200610

65180SILL ASSY, CROSS, NO.4

main65180-37400iXKU308,508..T5;XKU508..T4..5F..DCRUE200610-201009

main65180-37401iXKU308..T5;XKU508..5F201009

main65180-37450iXKU344200406-200610

main65180-37451iXKU348..T3;XKU338,344..5F201009

65190SILL ASSY, CROSS, NO.5

main65190-37040iXKU344200406-200610

main65190-37080iXKU308,508..T5;XKU508..T4..5F..DCRUE200610

65220SILL ASSY, CROSS, NO.4

main65180-37400iXKU304200406-200610

main65180-37401iXKU308..T5;XKU508..5F201009

main65180-37440iXKU344200406-200610

main65180-37441iXKU348..T3;XKU338,344..5F201009

65250SILL ASSY, CROSS, NO.2

main65160-37140iXKU344200406-200610

main65160-37370iXKU308,508..T5;XKU508..T4..5F..DCRUE200610

65307AFRAME SUB-ASSY, FLOOR, REAR

main65307-37220iXKU344200406-200505

main65307-37400iXKU304200406-200505

main65307-37510iXKU304200505-200610

main65307-37540iXKU344200505-200610

65322NAIL

main65322-92820×17iXKU338200908

sub90290-05004

main90290-05001×17iXKU34#..T3..5F200610

65349FENDER, FLOOR SIDE

main65349-37010×2iXKU304,344200406-200610

sub65349-37040

65413ABRACKET, GUARD FRAME, RH

main65413-37030iXKU344200406-200610

main65413-37050iXKU304200406-200610

65415DBRACKET, GUARD FRAME, LH

main65415-37010iXKU344200406-200610

main65415-37030iXKU304200406-200610

66219AEXTENSION, REAR FENDER

main66219-37080iXKU304,344200406-200610

sub66219-37120

66219BEXTENSION, REAR FENDER

main66219-37080iXKU304,344200406-200610

sub66219-37120

66225ASUPPORT, BAFFLE RUBBER

main66242-37220iXKU304,344200406-200610

66225BSUPPORT, BUFFLE RUBBER

main66242-37220iXKU304,344200406-200610

66241BBAFFLE, RUBBER

main66241-37A20iXKU34#..T3..5F200610-200807

main66241-37A21iXKU34#..T3..5F200807-200904

main66241-37A22iXKU34#..T3..5F200905

main66241-37A70iXKU308,508..T5200610-200807

main66241-37A71iXKU308,508..T5200807-200904

main66241-37A72iXKU308,508..T5;XKU338,508..T4..5F..DCRUE200905

main66241-3V190iXKU304200406-200610

main66241-3V200iXKU344200406-200610

main66241-3V350iXKU304200406-200610

main66241-3V360iXKU344200406-200610

66241CBUFFLE, RUBBER

main66241-37A20iXKU34#..T3..5F200610-200807

main66241-37A21iXKU34#..T3..5F200807-200904

main66241-37A22iXKU34#..T3..5F200905

main66241-37A70iXKU308,508..T5200610-200807

main66241-37A71iXKU308,508..T5200807-200904

main66241-37A72iXKU308,508..T5;XKU338,508..T4..5F..DCRUE200905

main66241-3V190iXKU304200406-200610

main66241-3V200iXKU344200406-200610

main66241-3V350iXKU304200406-200610

main66241-3V360iXKU344200406-200610

66259ACOVER, REAR BODY FLOOR, REAR

main66259-37010×2iXKU338,508..T4..5F..DCRUE;XKU308,34#,508..(T3,T5)..5F200610

66312DHOOK, ROPE, NO.2

main66311-37020×9iXKU308,508..T5;XKU338,508..T4..5F..DCRUE200610

66312EHOOK, ROPE, NO.2

main66312-37020iXKU304,344200406-200610

66312FHOOK, ROPE, NO.2

main66311-37020×9iXKU304200406-200610

66312GHOOK, ROPE, NO.2

main66312-37020iXKU304,344200406-200610

66315AHOOK, ROPE

main66315-37010×2iXKU304200406-200610

66321EBUMPER, GATE RUBBER

main66321-92803×2iXKU304,344200406-200610

66321GBUMPER, GATE RUBBER

main66321-92805×4iXKU304,344200406-200610

9011908B66

main90119-08B66

9014950065

main90149-50065

9017910036

main90179-10036

9024109003

main90241-09003

9164281025

main91642-81025

9321016016

main93210-16016

9354015016

main93540-15016

9415080600

main94150-80600

9418401001

main94184-01001

43 parts on this diagram · 6 diagrams in section
