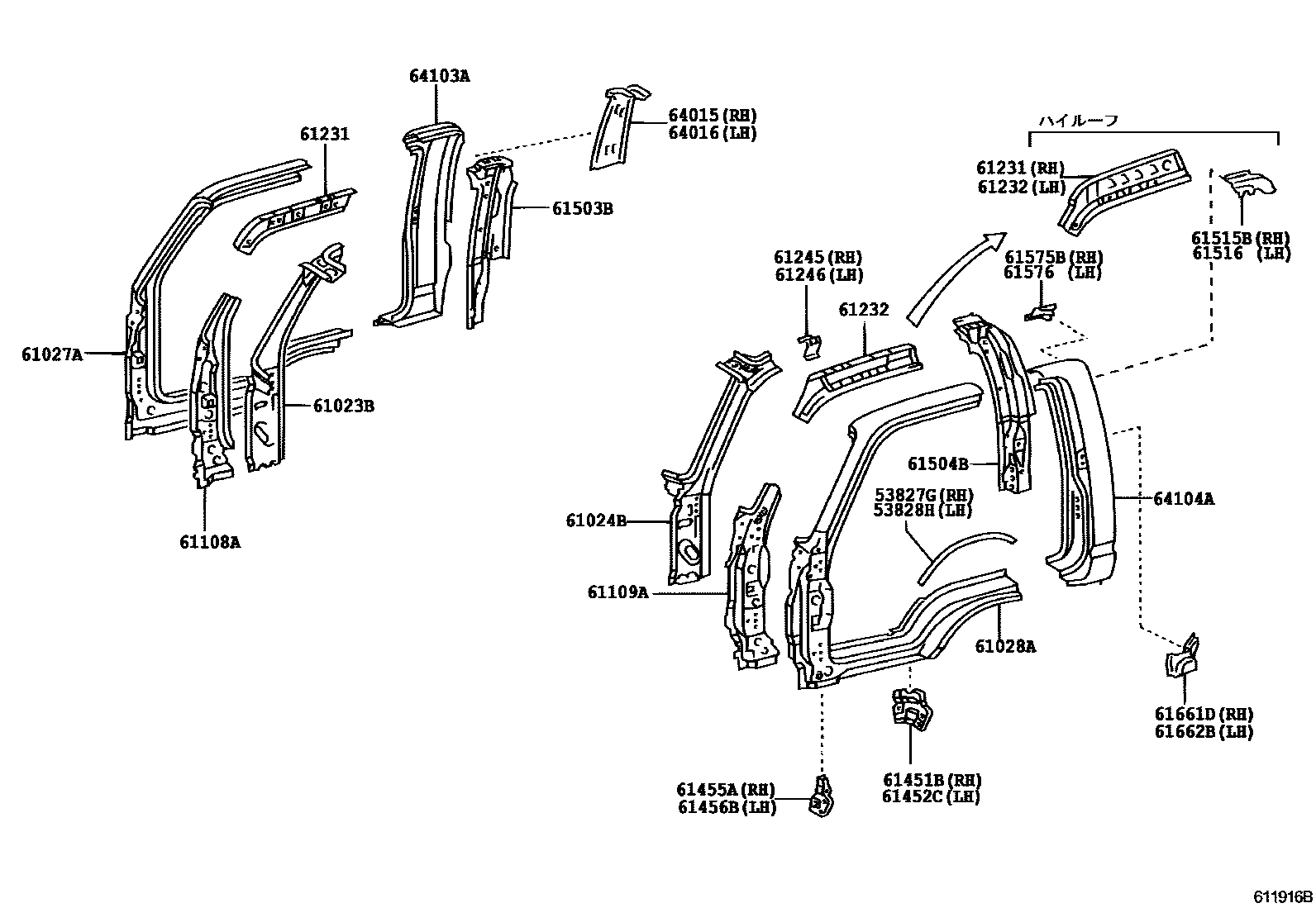

SIDE MEMBER

0001 1 0002 1��������������=���������� ���0003 1��������������=��������� 0004 1

53827GPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-37010iXKU30#,338,34#,508200610

53828HPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53827-37010iXKU304,344200310-200610

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-37040iXKU30#,338,34#,508200610

main61023-37050iXKU304;XKU344..30T200310-200610

61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH

main61024-37090iXKU30#,338,34#,508200610

main61024-37100iXKU304;XKU344..30T200310-200610

main61024-37130iXKU304200610

61027APILLAR SUB-ASSY, FRONT BODY, OUTER RH

main61027-89118iXKU304..6FC;XKU304..5F..DCRUE;XKU308,338,34#,508200610

main61027-89119iXKU304..6FC;XKU304..5F..DCRUE;XKU308,338,34#,508200610

main61131-37061iXKU304,344200310-200312

main61131-37062iXKU304,344200401-200610

main61131-37071iXKU304,344200310-200408

main61131-37072iXKU344..20T200505-200610

61028APILLAR SUB-ASSY, FRONT BODY, OUTER LH

main61028-89118iXKU304..5F..DCRTJ200801

main61028-89119iXKU304..6FC;XKU304..5F..DCRUE;XKU308,338,34#,508200610

main61132-37041iXKU304,344200310-200410

main61132-37042iXKU30#,338,34#,508200610

main61132-37051iXKU304,344200310-200408

main61132-37052iXKU304;XKU344..30T200409-200610

main61132-37061iXKU304,344200310-200410

main61132-37062iXKU30#,338,34#,508200610

main61132-37071iXKU304,344200310-200408

main61132-37072iXKU30#,338,34#,508200610

main61132-37111iXKU304200610

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-37031iXKU304,344200310-200610

main61108-37060iXKU304..6FC;XKU304..5F..DCRUE;XKU308,338,34#,508200610

61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH

main61109-37011iXKU304,344200310-200610

main61109-37031iXKU304200610

main61109-37050iXKU304..6FC;XKU304..5F..DCRUE;XKU308,338,34#,508200610

61231RAIL, ROOF SIDE, INNER RH

main61231-37050iXKU304,344200310-200610

main61231-37060iXKU344..20T200505-200610

main61231-89119iXKU304..5F..DCRTJ200801

main61231-89120iXKU304..5F..DCRTJ200801

61232RAIL, ROOF SIDE, INNER LH

main61232-37050iXKU30#,338,34#,508200610

main61232-37060iXKU344..20T200505-200610

main61232-89119iXKU304..6FC;XKU304..5F..DCRUE;XKU308,338,34#,508200610

main61232-89120iXKU304..6FC;XKU304..5F..DCRUE;XKU308,338,34#,508200610

61245REINFORCEMENT, ROOF SIDE RAIL, OUTER RH

main61245-37010iXKU30#,338,34#,508200610

main61245-37020iXKU304;XKU344..30T200310-200610

61246REINFORCEMENT, ROOF SIDE RAIL, OUTER LH

main61245-37010iXKU30#,338,34#,508200610

main61246-37010iXKU344..20T200505-200610

61451BPLATE, STEP, LOWER RH

main61451-37010iXKU304,344200310-200610

61452CPLATE, STEP, LOWER LH

main61452-37010iXKU304,344200310-200610

61455ARETAINER, FRONT STEP, RH

main61455-37010iXKU304,344200310-200610

61456BRETAINER, FRONT STEP, LH

main61456-37010iXKU304,344200310-200610

61503BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH

main61503-37010iXKU304;XKU344..30T200310-200610

main61503-37020iXKU30#,338,34#,508200610

main61503-37030iXKU30#,338,34#,508200610

main61503-37040iXKU304;XKU344..30T200310-200610

61504BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, LH

main61504-37010iXKU304,344200310-200610

main61504-37020iXKU304;XKU344..30T200310-200610

main61504-37040iXKU304200610

61515BEXTENSION, QUARTER LOCK PILLAR, RH

main61515-37010iXKU304,344200310-200610

61516EXTENSION, QUARTER LOCK PILLAR, LH

main61516-37010iXKU30#,338,34#,508200610

61575BPLATE, CAB REAR PILLAR, UPPER RH

main61575-37010iXKU30#,338,34#,508200610

61576PLATE, CAB REAR PILLAR, UPPER LH

main61576-37010iXKU30#,338,34#,508200610

61661DEXTENSION, QUARTER PANEL TO UPPER BACK, RH

main61661-37010iXKU304,344200310-200610

61662BEXTENSION, QUARTER PANEL TO UPPER BACK, LH

main61662-37010iXKU304,344200310-200610

64015PANEL SUB-ASSY, BACK CORNER, INNER RH

main61531-37010iXKU344..20T200505-200610

main61531-37040iXKU304,344200310-200610

64016PANEL SUB-ASSY, BACK CORNER, INNER LH

main61532-37010iXKU304,344200310-200610

main61532-37021iXKU304;XKU344..30T200310-200610

64103APANEL SUB-ASSY, BACK CORNER, OUTER RH

main61111-89101iXKU304..5F..DCRTJ200801

main61111-89105iXKU304..5F..DCRTJ200801

main61611-37140iXKU304,344200310-200312

main61611-37141iXKU304,344200401-200610

main61611-37150iXKU304,344200310-200408

main61611-37151iXKU344..20T200505-200610

64104APANEL SUB-ASSY, BACK CORNER, OUTER LH

main61112-89101iXKU304..5F..DCRTJ200801

main61112-89102iXKU304..6FC;XKU304..5F..DCRUE;XKU308,338,34#,508200610

main61112-89107iXKU304..5F..DCRTJ200801

main61112-89108iXKU304..5F..DCRTJ200801

main61612-37110iXKU304,344200310-200409

main61612-37111iXKU30#,338,34#,508200610

main61612-37120iXKU304,344200310-200408

main61612-37121iXKU304;XKU344..30T200409-200610

28 parts on this diagram · 4 diagrams in section
