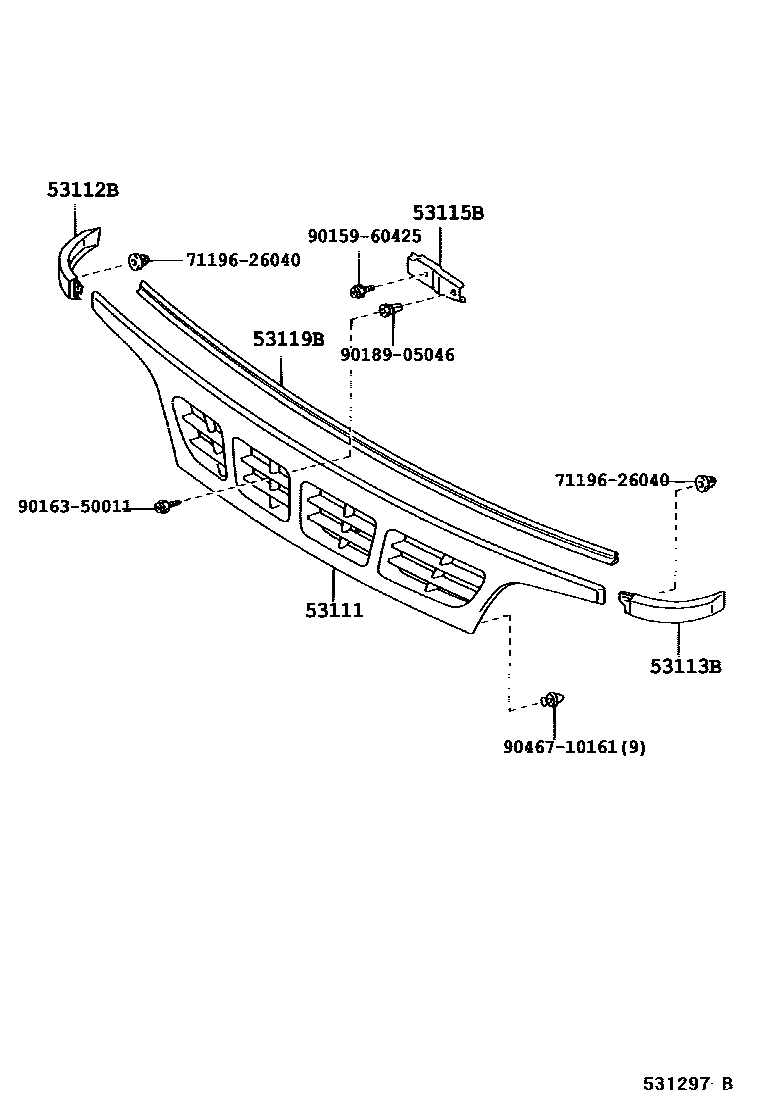

RADIATOR GRILLE

0001 1 0002 1���(��� ����) 0003 1

53111GRILLE, RADIATOR

main53111-37430iXKU304,344200310-200610

main53111-37440iXKU304,344200310-200610

main53111-37450-A0iXKU304,344200310-200610

WHITE,058

main53111-37450-B1iXKU304,344200310-200610

SILVER ME.,199

main53111-37550iXKU304,344200310-200610

main53111-37700iXKU30#,338,34#,508200610-201106

main53111-37710-A0iXKU308,338,34#,508200610-201106

WHITE,058

main53111-37710-B0iXKU308,338,34#,508200610-201106

SILVER ME.,199

main53111-37710-B1iXKU308,348,508..T4200610-201106

COBALT GREEN,9A7

main53111-37710-H0iXKU308,338,34#,508200610-201106

TURQUOISE,766

main53111-37710-J0iXKU308,338,34#,508200610-201106

BLUE,8P0

main53111-37710-K0iXKU344..5F200610-201106

ONLYJAPANESE,9E2

main53111-37720iXKU30#,338,34#,508200610-201106

53112BGRILLE, RADIATOR SIDE, RH

main53112-37040iXKU304,344200310-200610

main53112-37050iXKU304,344200310-200610

main53112-37060-A0iXKU304,344200310-200610

WHITE,058

main53112-37060-B1iXKU304,344200310-200610

SILVER ME.,199

main53112-37150iXKU304,344200310-200610

53113BGRILLE, RADIATOR SIDE, LH

main53113-37040iXKU304,344200310-200610

main53113-37050iXKU304,344200310-200610

main53113-37060-A0iXKU304,344200310-200610

WHITE,058

main53113-37060-B1iXKU304,344200310-200610

SILVER ME.,199

main53113-37150iXKU304,344200310-200610

53115BBRACKET, RADIATOR GRILLE

main53115-37050iXKU304,344200310-200610

53119BPROTECTOR, RADIATOR GRILLE

main53119-37030iXKU304,344200310-200610

main53119-37060iXKU304,344200310-200610

main53119-37080-B0iXKU304; XKU308,348,508..T4; XKU338;XKU344..6FC;XKU308,348,508..T3,T5; XKU344..5F200610-201106

main53119-37100iXKU344..6FC;XKU308,338,348,508200610-201106

main53119-37100-C0iXKU304; XKU308,348,508..T4; XKU338;XKU344..6FC;XKU308,348,508..T3,T5; XKU344..5F200610-201106

7119626040CLIP(FOR REAR SPOILER)

main71196-26040

9015960425

main90159-60425

9016350011

main90163-50011

9018905046

main90189-05046

9046710161

main90467-10161

10 parts on this diagram · 3 diagrams in section
