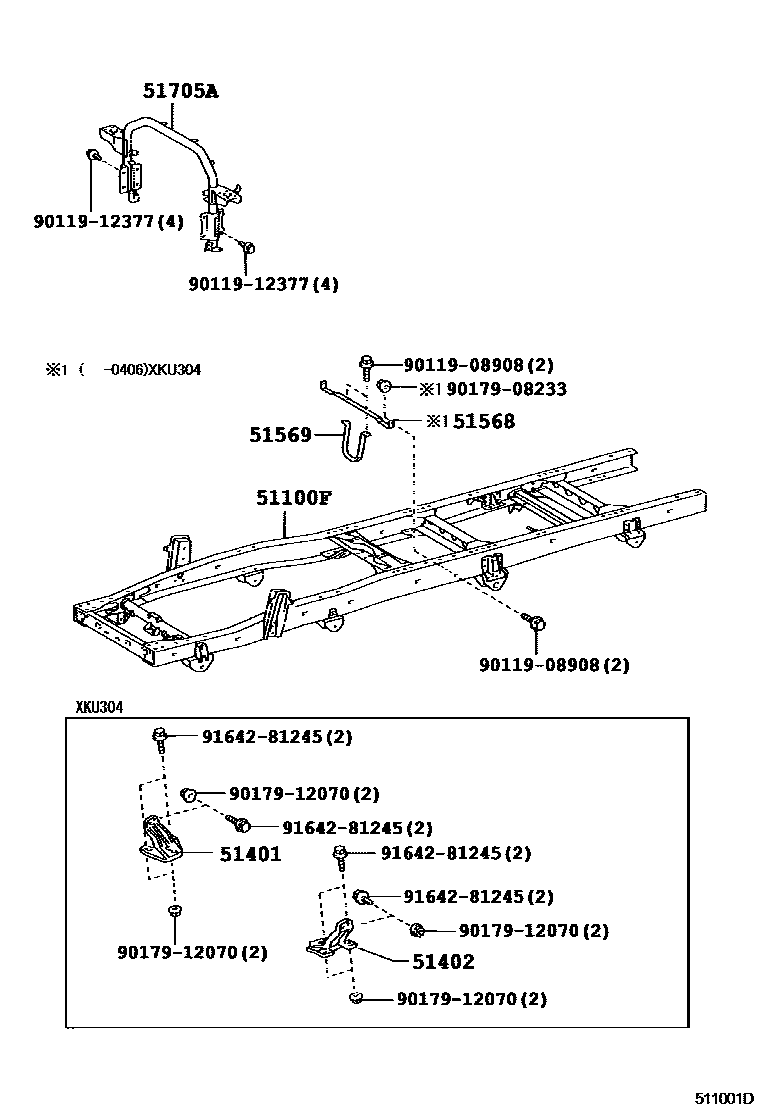

FRAME

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1�������� ����

51100FFRAME SUB-ASSY

main51001-37D10iXKU304200310-200505

main51001-37D11iXKU304200505-200610

main51001-37D12iXKU304200610

main51001-37M50iXKU344200310-200505

main51001-37M51iXKU344200505-200610

main51001-37M52iXKU344..5F200610

main51001-37Z10iXKU338200610

main51001-37Z20iXKU308,508200610

main51001-37Z40iXKU348200610

main51001-37Z50iXKU348200610

main51001-3VC80iXKU344..6FC200801

51401BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH

main51421-37050iXKU304,344200310-200610

main51421-37081iXKU344..6FC200801

51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

main51422-37110iXKU304,344200310-200610

main51422-37141iXKU344..6FC200801

51568BRACKET, PROPELLER SHAFT GUARD

main51568-37560iXKU34#200310-200610

51569GUARD, PROPELLER SHAFT

main51569-37141iXKU344200310-200610

main51569-37290iXKU304..6FC;XKU308,338,508..T4200610

main51569-37290iXKU344200310-200610

main51569-37310iXKU30#,508..(DM6,T5)..5F200610

main51569-37310iXKU304200310-200406

main51569-37370iXKU304200406-200610

main51569-37370iXKU34#200610

51705ABRACKET SUB-ASSY, CAB MOUNTING, NO.3

main51705-37400iXKU304,344200310-200610

main51705-37401iXKU304,344200610-201101

main51705-37402iXKU304,344201101-201106

main51705-37451iXKU308,338,348,508200610-201101

main51705-37452iXKU308,338,348,508201101-201106

9011908908

main90119-08908

9011912377

main90119-12377

9017908233

main90179-08233

9017912070

main90179-12070

9164281245

main91642-81245

11 parts on this diagram · 7 diagrams in section
