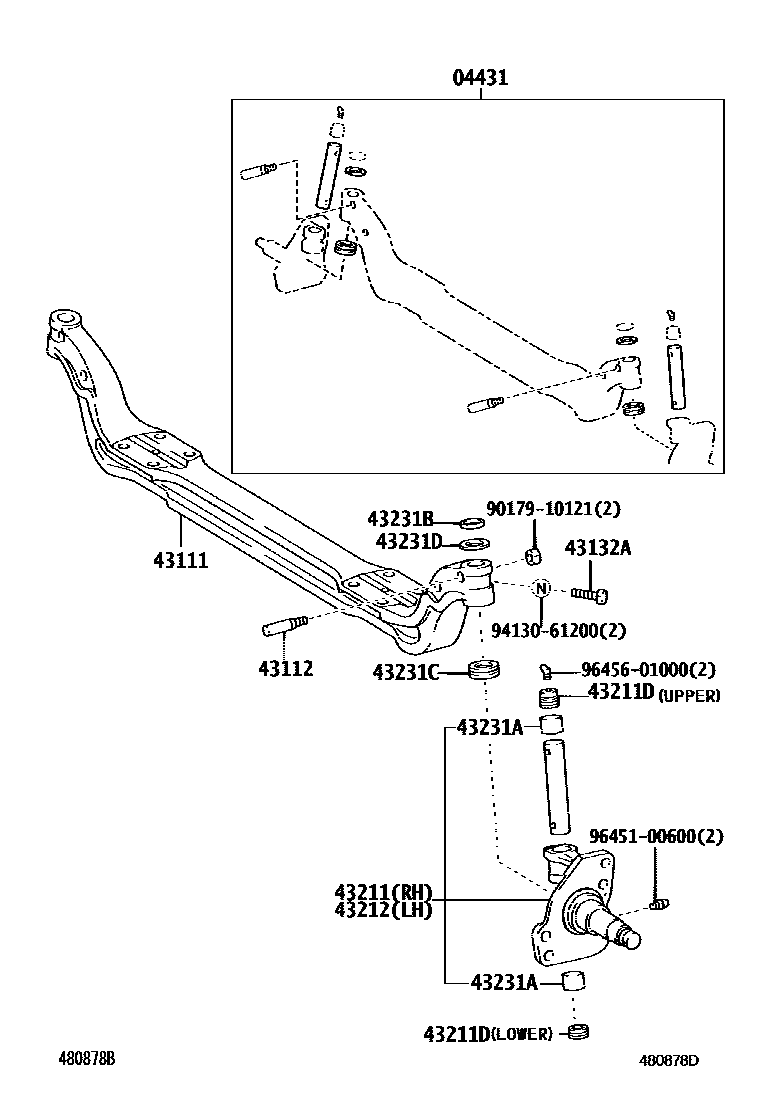

FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0002 1 0003 1 0004 1

04431PIN KIT, STEERING KNUCKLE KING

main04431-36070iXKU304,344200310-200510

sub04431-36071

main04431-36180iXKU304,344200510-200610

main04431-37390iXKU304,344200610-200904

sub04431-37440

main04431-37440iXKU304,344200904-201106

sub0443C-37020

43111I BEAM, FRONT AXLE

main43111-37031iXKU304,344200310-200610

43112PIN, KING PIN LOCK

main43112-36020iXKU304,344200310-200610

43132ABOLT, ROUND HEXAGON (FOR STEERING KNUCKLE STOPPER BOLT)

main90106-12008iXKU304,344200310-200610

main90106-12015iXKU308,338,348,508200610

43211KNUCKLE, STEERING, RH

main43201-37031iXKU304,344200310-200609

sub43201-37110

main43201-37110iXKU304,344200610

main43201-37130iXKU308,338,348,508200610

43211DPLUG (FOR STEERING KNUCKLE)

main90345-33003iXKU304,344200310-200610

main90345-33004iXKU304,344200310-200610

43212KNUCKLE, STEERING, LH

main43202-37031iXKU304,344200310-200609

sub43202-37110

main43202-37110iXKU304,344200610

main43202-37130iXKU308,338,348,508200610

43231ABUSH, BIMETAL FORMED (FOR STEERING KNUCKLE KING PIN BUSH)

main90999-73086iXKU304,344200310-200610

43231BSEAL, DUST OR RING, O (FOR STEERING KNUCKLE KING PIN)

main90312-28003iXKU304,344200310-200610

43231CBEARING (FOR STEERING KNUCKLE KING PIN)

main90367-28001iXKU304,344200310-200610

43231DSHIM (FOR KING PIN)

main90564-28001iXKU304,344200310-200610

main90564-28002iXKU304,344200310-200610

main90564-28003iXKU304,344200310-200610

main90564-28004iXKU304,344200310-200610

main90564-28005iXKU304,344200310-200610

main90564-28006iXKU304,344200310-200610

main90564-28007iXKU304,344200310-200610

main90564-28008iXKU304,344200310-200610

9017910121

main90179-10121

9413061200

main94130-61200

9645100600

main96451-00600

9645601000

main96456-01000

15 parts on this diagram · 4 diagrams in section
