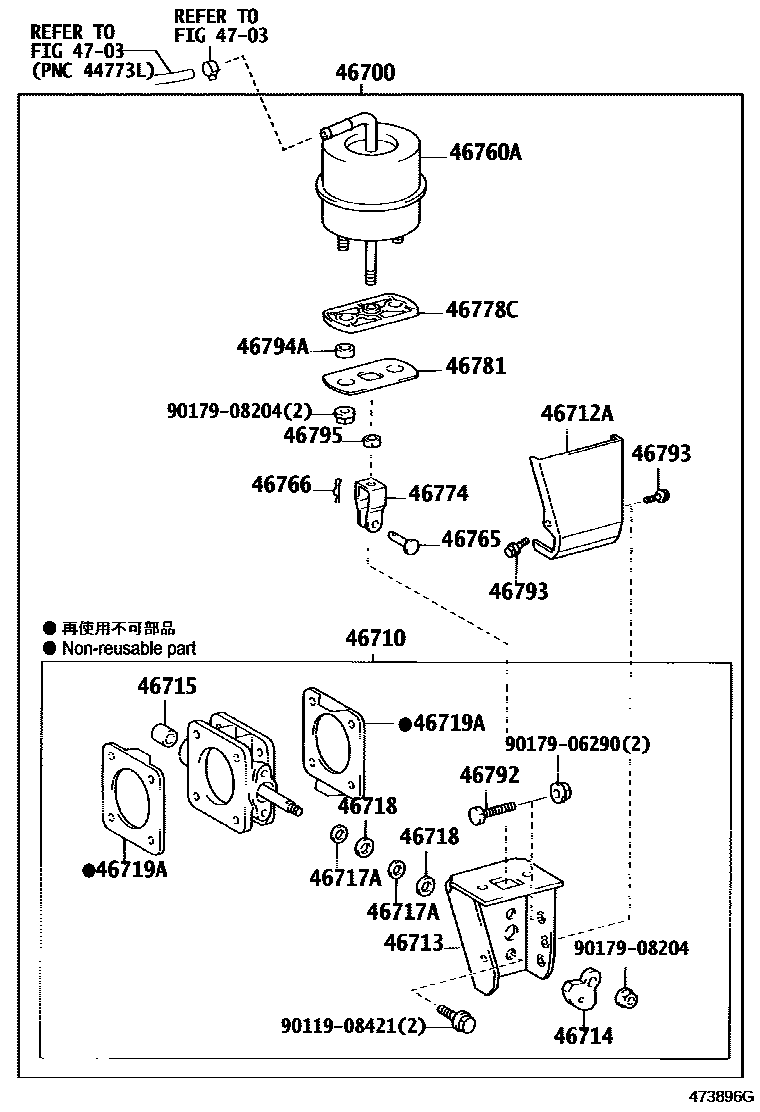

EXHAUST BRAKE ASSEMBLY & VACUUM CYLINDER
46700RETARDER ASSY, EXHAUST
46710VALVE ASSY, EXHAUST BRAKE
46712ACOVER, EXHAUST BRAKE BRACKET
46713BRACKET, EXHAUST VALVE
46714LEVER, EXHAUST VALVE
46715BUSH, EXHAUST VALVE, NO.1
46717ARING, EXHAUST VALVE SEAL, NO.1
46718RING, EXHAUST VALVE SEAL, NO.2
46719AGASKET, EXHAUST RETARDER
46760ACHAMBER ASSY, EXHAUST BRAKE
46765PIN, VACUUM CYLINDER CLEVIS
46766PIN, VACUUM CYLINDER CLEVIS SNAP
46774CLEVIS, EXHAUST BRAKE ROD
46778CGUIDE, EXHAUST RETARDER ACTUATOR ROD
46781INSULATOR, EXHAUST BRAKE CHAMBER, NO.1
46792BOLT, EXHAUST VALVE STOPPER
46793BOLT, EXHAUST VALVE LINK COVER
46794ACOLLAR, ACTUATOR ROD GUIDE
46795NUT, EXHAUST VALVE BRACKET
4703BRAKE BOOSTER & VACUUM TUBE
9011908421
main90119-08421
9017906290
main90179-06290
9017908204
main90179-08204
23 parts on this diagram · 2 diagrams in section
