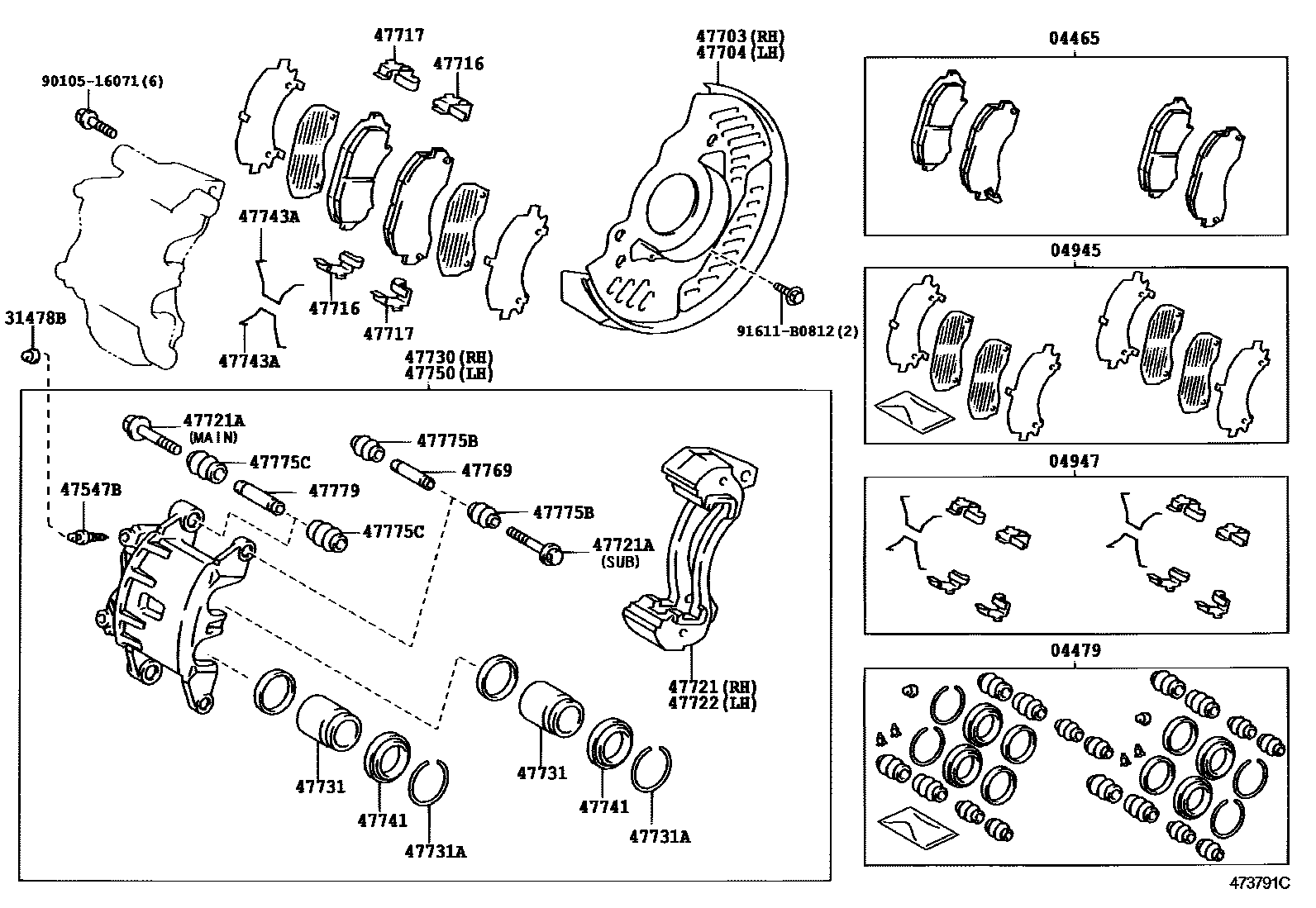

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-37030iXKU304,344200310-200610

main04465-37100iXKU304200310-200610

main04465-37150iXKU30#,34#..DM6,T3,T5200610

sub04465-37151

main04465-37160iXKU308,338,348..T4200610

main04465-37220iXKU508200610

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-37180iXKU508200610-201008

main04478-37181iXKU508201008

main04479-37010iXKU304,344200310-200610

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-37020iXKU308,338,348..T4200610

main04945-37030iXKU304,344200310-200610

main04945-37150iXKU508200610

04947FITTING KIT, DISC BRAKE, FRONT

main04947-36020iXKU304,344200310-200610

main04947-37060iXKU508200610

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iXKU30#,338,34#,508200610

main31478-37040×2iXKU304,344200310-200610

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12010×2iXKU304,344200310-200610

main47547-12030×2iXKU508200610

47703COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH

main47703-37030iXKU304,344200310-200610

sub47703-37031

main47703-37041iXKU308,338,348,508200610-201106

sub47703-37042

47704COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH

main47704-37030iXKU304,344200310-200610

sub47704-37031

main47704-37041iXKU308,338,348,508200610-201106

sub47704-37042

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-36020×4iXKU304,344200310-200610

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-36020×4iXKU304,344200310-200610

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-37030iXKU304,344200310-200610

main47721-37050iXKU308,338,348..T4200610

main47721-37180iXKU308,348..T3,T5200610

main47721-37260iXKU508200610

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90015-AA601×4iXKU508200610

main90119-08B87×4iXKU304,344200310-200610

main90119-12256×4iXKU304,344200310-200610

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-37050iXKU308,338,348..T4200610

main47721-37180iXKU308,348..T3,T5200610

main47721-37260iXKU508200610

main47722-37020iXKU304,344200610

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-37010iXKU308,338,348..T4200610

main47730-37030iXKU304,344200310-200610

main47730-37180iXKU308,348..T3,T5200610

main47730-37260iXKU508200610-200912

main47730-37261iXKU508200912-201008

main47730-37262iXKU508201008

47731PISTON, FRONT DISC BRAKE

main47731-37010×4iXKU304,344200310-200610

sub47731-36020

main47731-60070×4iXKU508200610

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-61001×4iXKU30#,338,34#200610

47741BOOT, FRONT DISC BRAKE CYLINDER

main47741-37010×4iXKU30#,338,34#200610

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-36020×4iXKU30#,338,34#200610

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-37010iXKU308,338,348..T4200610

main47750-37030iXKU304,344200310-200610

main47750-37180iXKU308,348..T3,T5200610

main47750-37260iXKU508200610-200912

main47750-37261iXKU508200912-201008

main47750-37262iXKU508201008

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-36030×4iXKU304,344200310-200610

47775BBOOT, BUSH DUST, NO.1

main47775-36040×8iXKU304,344200310-200610

47775CBOOT, BUSH DUST, NO.2

main47775-36050×8iXKU304,344200310-200610

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-36010×4iXKU304,344200310-200610

9010516071

main90105-16071

91611B0812

main91611-B0812

25 parts on this diagram · 3 diagrams in section
