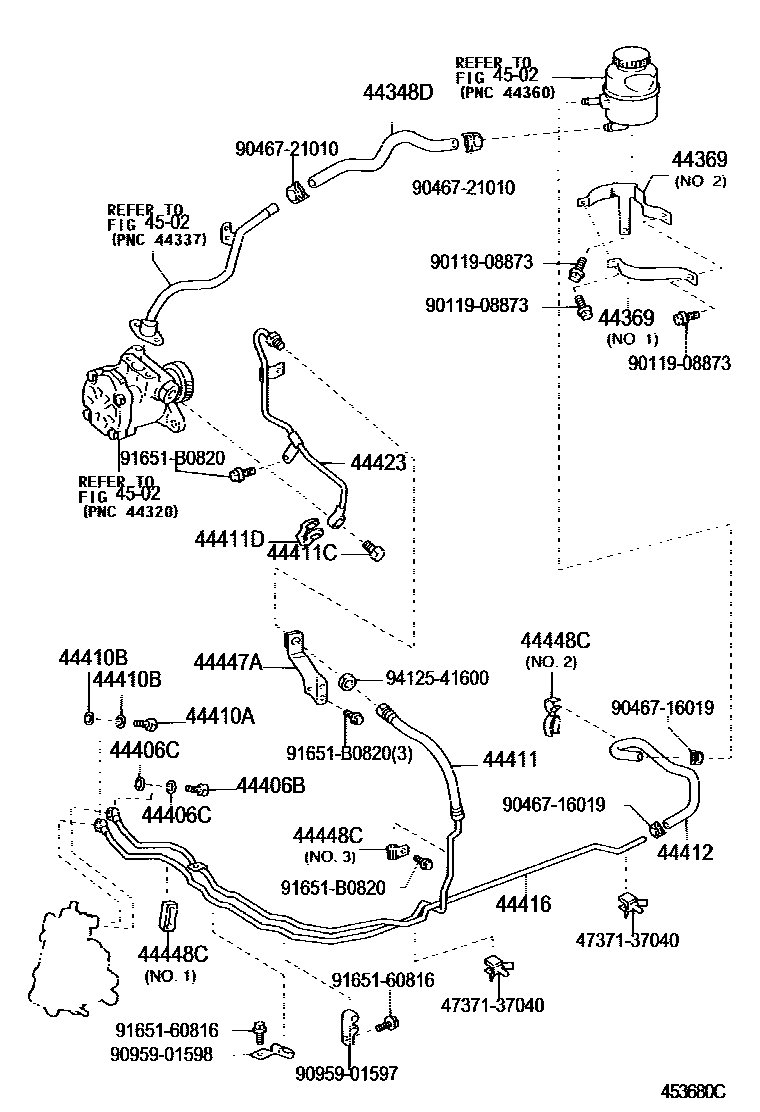

POWER STEERING TUBE
44348DHOSE, OIL RESERVOIR TO PUMP, NO.2
44369BRACKET, OIL RESERVOIR, NO.1
44406BBOLT, UNION(FOR RETURN TUBE)
44406CGASKET(FOR RETURN TUBE)
44410TUBE ASSY, PRESSURE FEED
44410ABOLT, UNION(FOR PRESSURE FEED TUBE)
44410BGASKET(FOR PRESSURE FEED TUBE)
44411HOSE, PRESSURE FEED
44411CBOLT, UNION(FOR PRESSURE FEED HOSE)
44411DGASKET(FOR PRESSURE FEED HOSE)
44412HOSE, RETURN
44416TUBE, RETURN(FOR STEERING GEAR OUTLET)
44423TUBE, OIL PUMP TO GEAR BOX
44447ABRACKET, HOSE SUPPORT, NO.1
44448CCLAMP, PRESSURE FEED, NO.2
4502VANE PUMP & RESERVOIR (POWER STEERING)
4737137040BRACKET, CONNECTOR
main47371-37040
9011908873
main90119-08873
9046716019
main90467-16019
9046721010
main90467-21010
9095901597
main90959-01597
9095901598
main90959-01598
9165160816
main91651-60816
91651B0820
main91651-B0820
9412541600
main94125-41600
25 parts on this diagram · 4 diagrams in section
