FRONT AXLE HUB

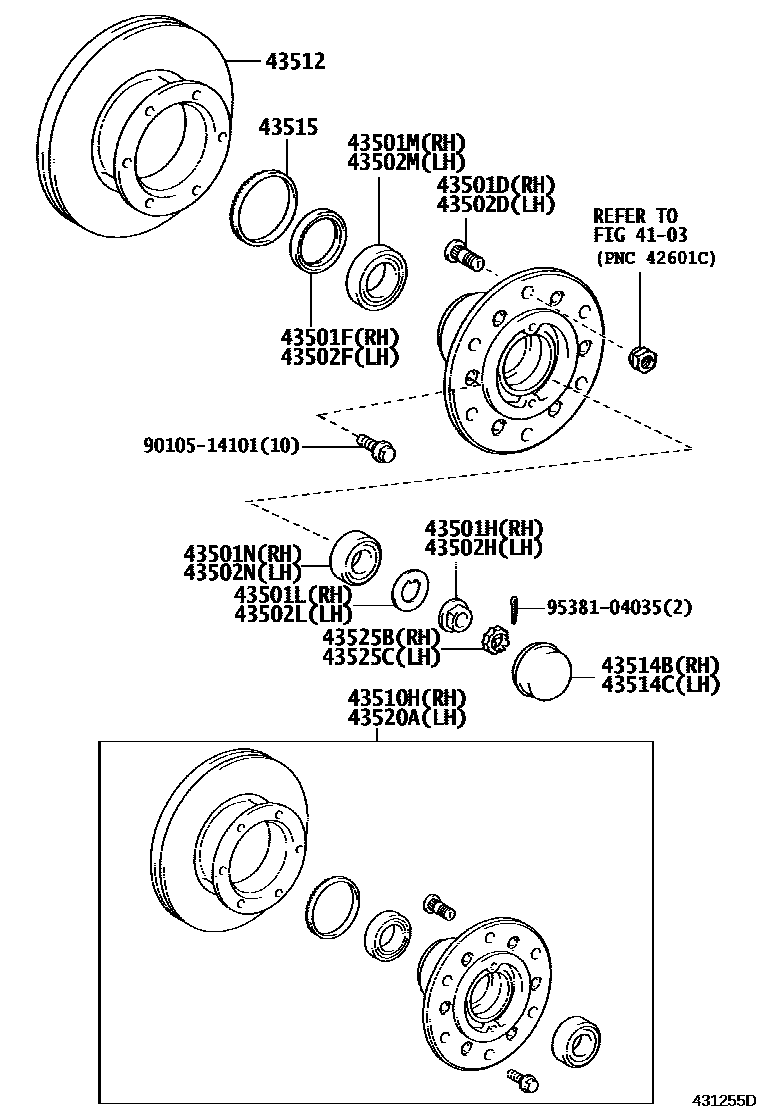

Parts diagram

4103DISC WHEEL & WHEEL CAP

→ Go to FIG 41-03

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02071i200310-200610

43501FSEAL, OIL (FOR FRONT AXLE HUB RH)

main90311-68002i200310-200408

main90311-68003i200408-200610

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90178-28001i200310-200610

43501LWASHER, CLAW (FOR FRONT AXLE HUB RH)

main90214-29001i200310-200610

43501MBEARING (FOR FRONT AXLE HUB INNER RH)

main90366-50069i200310-200610

43501NBEARING (FOR FRONT AXLE HUB OUTER RH)

main90366-35105i200310-200610

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02072i200310-200610

43502FSEAL, OIL (FOR FRONT AXLE HUB LH)

main90311-68002i200310-200408

main90311-68003i200408-200610

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90178-28001i200310-200610

43502LWASHER, CLAW (FOR FRONT AXLE HUB LH)

main90214-29001i200310-200610

43502MBEARING (FOR FRONT AXLE HUB INNER LH)

main90366-50069i200310-200610

43502NBEARING (FOR FRONT AXLE HUB OUTER LH)

main90366-35105i200310-200610

43510HHUB & DISC(DRUM) ASSY, FRONT AXLE, RH

main43510-39205i200610-201106

main43510-39215i200610-201106

main43510-39225i200610-201106

43512DISC, FRONT

main43512-37080×2i200610-201106

main43512-37090×2i200310-200610

main43512-37150×2i200610-201106

43514BCAP, FRONT AXLE HUB GREASE, RH

main43514-37030i200310-200610

43514CCAP, FRONT AXLE HUB GREASE, LH

main43514-37030i200610-201106

43515ROTOR, SKID CONTROL, FRONT

main43515-37010×2i200310-200610

43520AHUB & DISC(DRUM) ASSY, FRONT AXLE, LH

main43520-39185i200310-200610

main43520-39195i200610-201106

main43520-39205i200610-201106

43525BCAP, FRONT WHEEL ADJUSTING LOCK, RH

main43525-37010i200310-200610

43525CCAP, FRONT WHEEL ADJUSTING LOCK, LH

main43525-37010i200310-200610

9010514101

main90105-14101

9538104035

main95381-04035

23 parts on this diagram · 1 diagram in section
