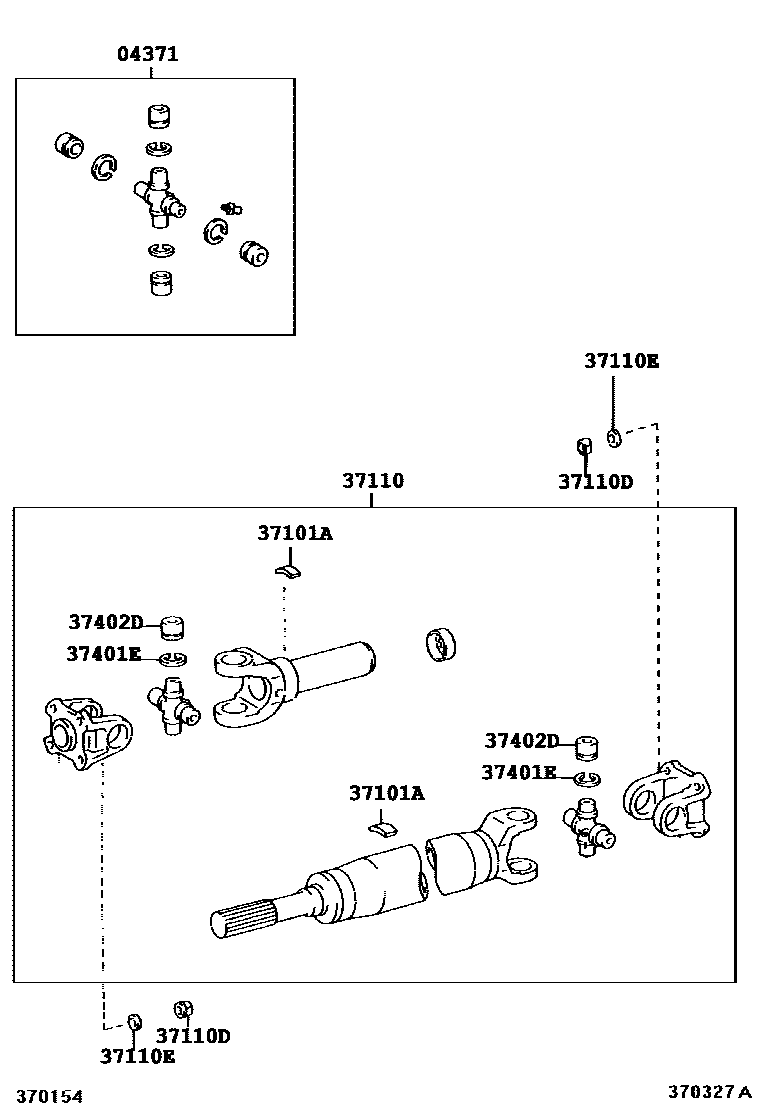

PROPELLER SHAFT & UNIVERSAL JOINT

0001 1 0002 1 0003 1 0004 1 0005 1

04371SPIDER KIT, UNIVERSAL JOINT(FOR PROPELLER SHAFT)

main04371-37011×3iXKU304,344200310-200610

37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)

main90039-13001iXKU304,344200310-200610

main90039-13002iXKU304,344200310-200610

main90039-13003iXKU304,344200310-200610

main90039-13004iXKU304,344200310-200610

main90039-13005iXKU304,344200310-200610

37110SHAFT ASSY, PROPELLER

main37110-37680iXKU344200310-200610

main37110-37720iXKU304200310-200610

37110DNUT (FOR PROPELLER SHAFT)

main90170-12005×8iXKU304,344200310-200610

37110EWASHER (FOR PROPELLER SHAFT)

main94512-01200×8iXKU304,344200310-200610

37401ERING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARING)

main90035-21022×8iXKU304; XKU344200310-200610

main90035-21023×8iXKU304; XKU344200310-200610

main90035-21024×8iXKU304; XKU344200310-200610

main90035-21025×8iXKU304; XKU344200310-200610

main90035-21026×8iXKU304; XKU344200310-200610

main90035-21038×8iXKU30#,338,34#,508200610

main90035-21039×8iXKU30#,338,34#,508200610

main90035-21040×8iXKU30#,338,34#,508200610

main90035-21041×8iXKU30#,338,34#,508200610

main90035-21042×8iXKU30#,338,34#,508200610

main90035-21043×8iXKU30#,338,34#,508200610

main90035-21044×8iXKU30#,338,34#,508200610

37402DBEARING, REAR PROPELLER SHAFT UNIVERSAL JOINT SPIDER

main37402-37020×8iXKU304; XKU344200310-200610

7 parts on this diagram · 5 diagrams in section
