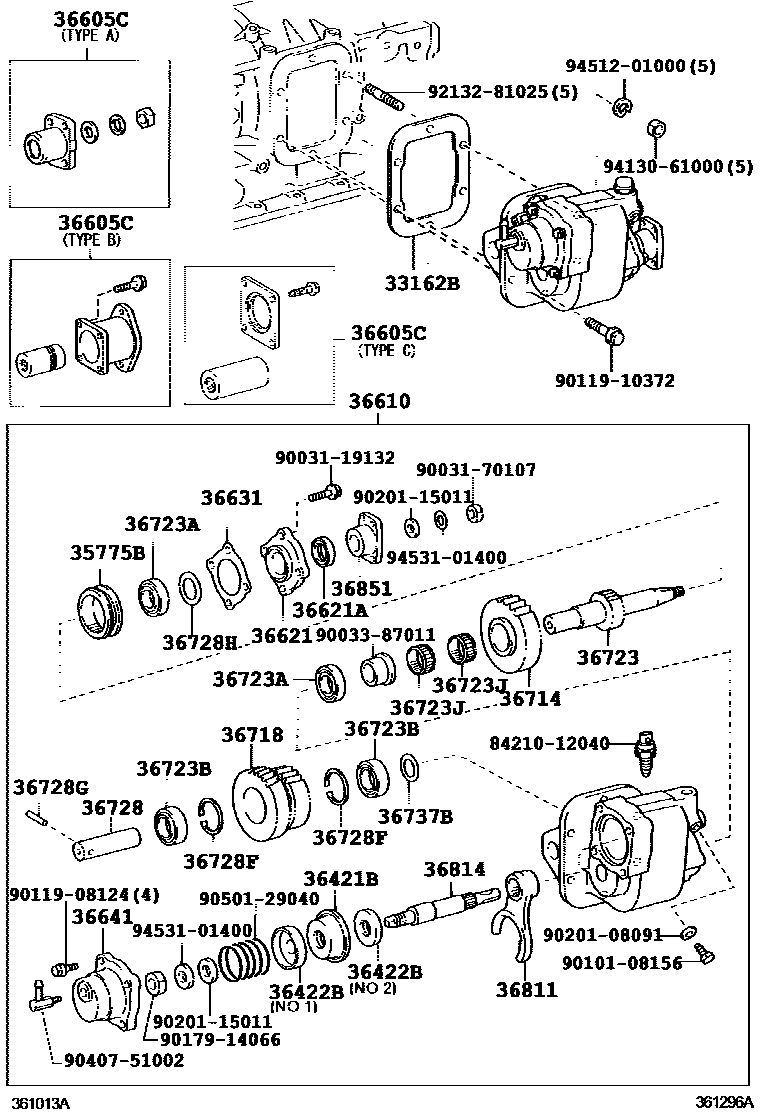

POWER TAKE-OFF CASE & GEAR
33162BGASKET, POWER TAKE-OFF COVER
35775BSLEEVE, OUTPUT SHAFT
sub35775-37031
36422BPLATE, DIAPHRAGM (FOR POWER TAKE-OFF)
36605CPOWER TAKE-OFF SET
36621RETAINER, POWER TAKE-OFF BEARING
36621ASEAL, OIL (FOR POWER TAKE-OFF BEARING RETAINER)
36631GASKET, POWER TAKE-OFF BEARING RETAINER
36641CAP, POWER TAKE-OFF SHIFT SHAFT
36714GEAR, POWER TAKE-OFF OUTPUT
36718GEAR, POWER TAKE-OFF IDLER
36723ABEARING (FOR OUTPUT SHAFT FRONT)
36723BBEARING (FOR OUTPUT SHAFT REAR)
36723JBEARING (FOR POWER TAKE-OFF OUTPUT SHAFT)
36728SHAFT, POWER TAKE-OFF IDLER
36728FRING, SHAFT SNAP (FOR POWER TAKE-OFF IDLER SHAFT)
36728GPIN (FOR POWER TAKE-OFF IDLER SHAFT)
36728HSHIM (FOR POWER TAKE-OFF IDLER SHAFT)
36737BSHIM (FOR POWER TAKE-OFF CLUTCH OUTPUT SHAFT)
36811FORK, POWR TAKE-OFF SHIFT, NO.1
36814SHAFT, POWR TAKE-OFF FORK, NO.1
36851RETAINER, POWER TAKE-OFF JOINT
8421012040SWITCH ASSY, BACK-UP LAMP
main84210-12040
9003119132
main90031-19132
9003170107
main90031-70107
9003387011
main90033-87011
9010108156
main90101-08156
9011908124
main90119-08124
9011910372
main90119-10372
9017914066
main90179-14066
9020108091
main90201-08091
9020115011
main90201-15011
9040751002
main90407-51002
9050129040
main90501-29040
9213281025
main92132-81025
9413061000
main94130-61000
9451201000
main94512-01000
9453101400
main94531-01400
40 parts on this diagram · 3 diagrams in section
