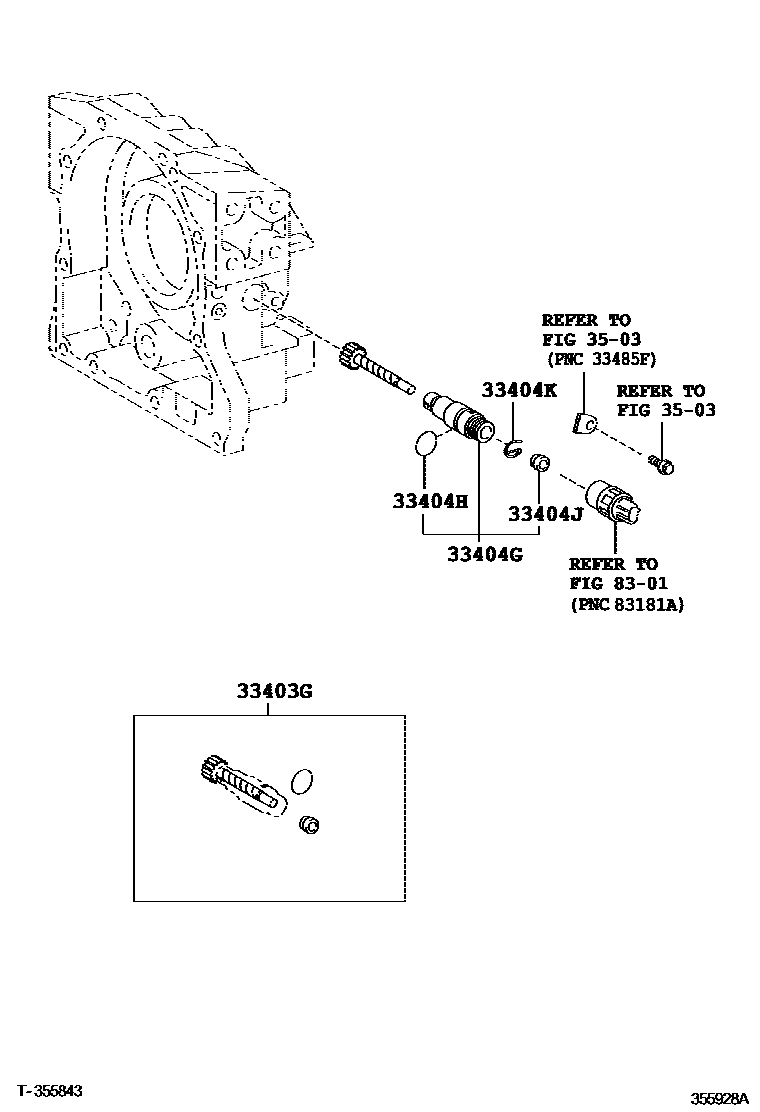

SPEEDOMETER DRIVEN GEAR (ATM)

33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33482-80003iXKU304,344..6FC;XKU308,508..6FC..DCRTJ200801-201106

main33482-80013iXKU308,344,508..6FC200911-201106

33404GSLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)

main33404-37020iXKU30#,344,508..6FC200801-201106

33404HRING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90301-21014iXKU30#,344,508..6FC200801-201106

33404JSEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90310-10001iXKU30#,344,508..6FC200801-201106

33404KCLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iXKU30#,344,508..6FC200801-201106

3503TRANSMISSION CASE & OIL PAN (ATM)

→ Go to FIG 35-03

8301METER

→ Go to FIG 83-01

7 parts on this diagram · 1 diagram in section
