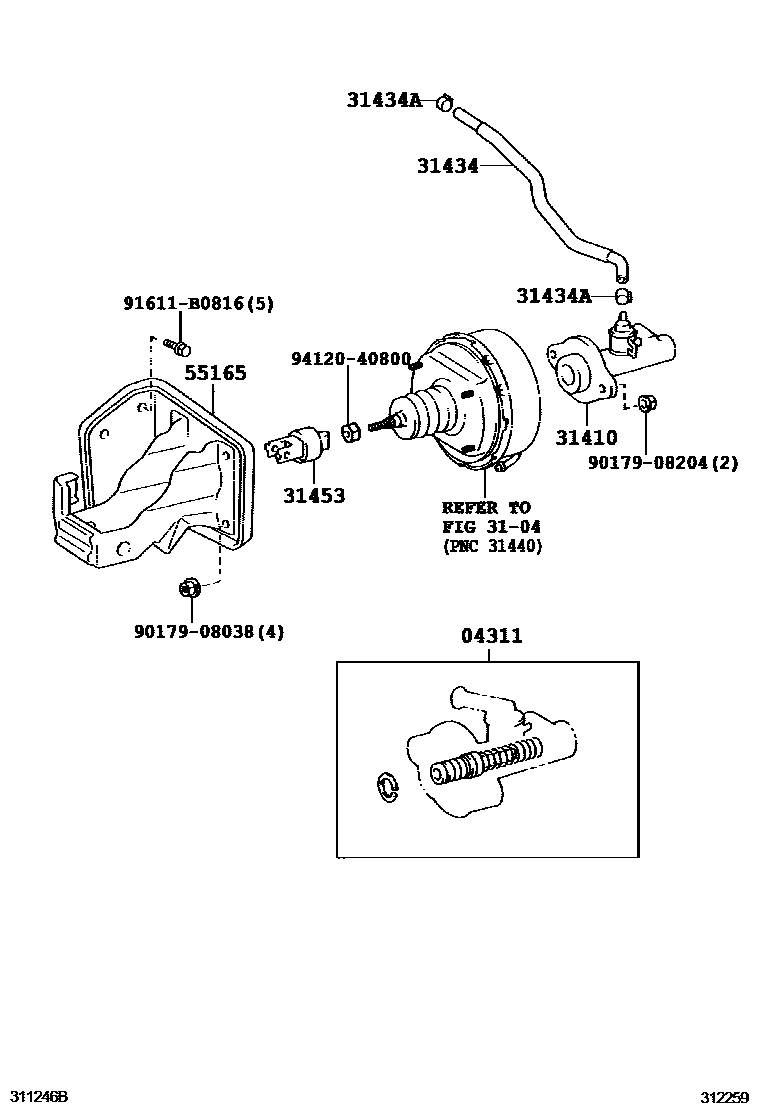

CLUTCH MASTER CYLINDER

04311CYLINDER KIT, CLUTCH MASTER

main04311-37020iXKU304,344200310-200504

main04311-37030iXKU304,344200504-200610

3104CLUTCH BOOSTER

→ Go to FIG 31-04

31410CYLINDER ASSY, CLUTCH MASTER

main31401-36060iXKU304,344200310-200312

main31401-37010iXKU304,344200312-200503

main31401-37011iXKU304,344200504-200610

31434TUBE, CLUTCH RESERVOIR

main31434-37090iXKU304,344200310-200610

31434ACLIP(FOR CLUTCH RESERVOIR TUBE)

main96133-41300×2iXKU304,344200310-200610

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-28020iXKU304,344200310-200503

55165SUPPORT, CLUTCH MASTER CYLINDER

main55105-37051iXKU304,344200310-200610

9017908038

main90179-08038

9017908204

main90179-08204

91611B0816

main91611-B0816

9412040800

main94120-40800

11 parts on this diagram · 1 diagram in section
