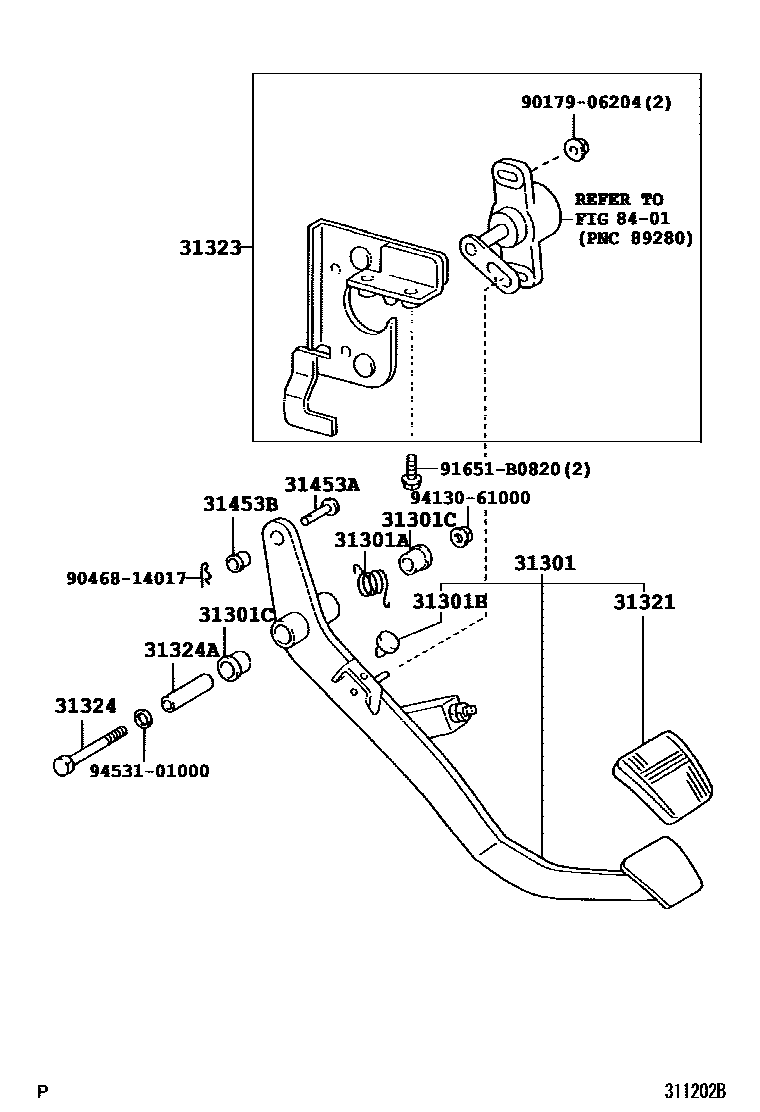

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0004 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-37161iXKU30#,338,34#,508..5F200610

main31301-37170iXKU304,344200310-200610

31301ASPRING(FOR CLUTCH PEDAL)

main90959-03344iXKU304,344200310-200505

main90959-03394iXKU304,344200506-200610

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iXKU304,344200310-200610

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13007×2iXKU304,344200310-200610

31321PAD, CLUTCH PEDAL

main31321-14020iXKU304,344200310-200610

31323BRACKET, CLUTCH PEDAL

main31302-37011iXKU304,344200310-200610

31324SHAFT, CLUTCH PEDAL

main91112-61070iXKU304,344200310-200610

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10004iXKU304,344200310-200610

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90240-08006iXKU30#,338,34#,508..5F200610

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iXKU304,344200310-200610

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9017906204

main90179-06204

9046814017

main90468-14017

91651B0820

main91651-B0820

9413061000

main94130-61000

9453101000

main94531-01000

16 parts on this diagram · 4 diagrams in section
