Toyota DYNA/TOYOACE HV — FUEL FILTER

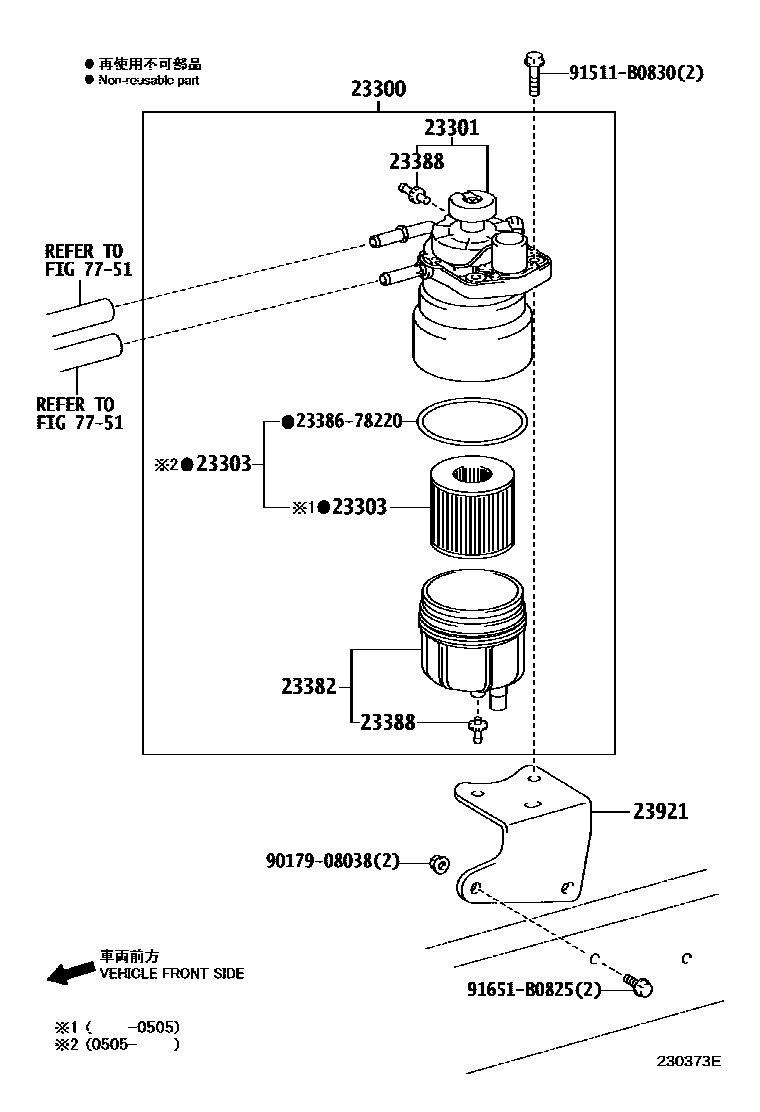

Parts diagram

23300FILTER ASSY, FUEL

23301BODY SUB-ASSY, FUEL FILTER

23303ELEMENT SUB-ASSY, FUEL FILTER

23382CASE, FUEL FILTER

23388PLUG, FUEL FILTER DRAIN

23921SUPPORT, FUEL FILTER

7751FUEL TANK & TUBE

→ Go to FIG 77-51

2338678220GASKET, FUEL FILTER CASE

9017908038

91511B0830

91651B0825

11 parts on this diagram · 2 diagrams in section

FUEL FILTER for Toyota DYNA/TOYOACE HV

This section contains 11 genuine Toyota parts for the FUEL FILTER system of the Toyota DYNA/TOYOACE HV. Key components include: FILTER ASSY, FUEL, BODY SUB-ASSY, FUEL FILTER, ELEMENT SUB-ASSY, FUEL FILTER, CASE, FUEL FILTER, PLUG, FUEL FILTER DRAIN.
