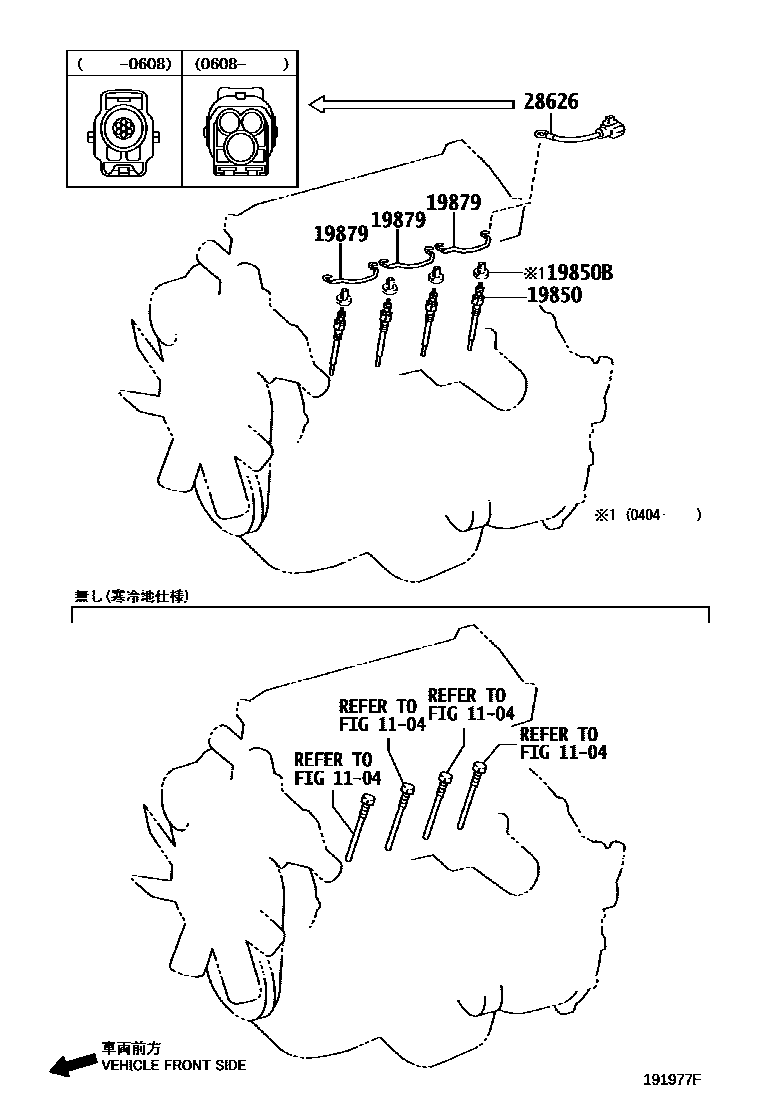

IGNITION COIL & SPARK PLUG / GLOW PLUG

1104CYLINDER HEAD

→ Go to FIG 11-04

19850PLUG ASSY, GLOW

main19850-78050×4iN04C..XKU304,344200310-200402

main19850-78051×4iN04C..XKU304,344200402-200610

19850BGROMMET, SCREW(FOR GLOW PLUG)

main90189-04024×4iN04C..XKU304,344200404-200610

19879WIRE, GLOW PLUG GROUND

main19879-78010×3iN04C..XKU304,344200310-200610

28626WIRE, GLOW PLUG

main28626-78010iN04C..XKU304,344200310-200406

main28626-78030iN04C..XKU304,344200406-200608

main28626-78050iN04C..XKU304,344200608-200610

5 parts on this diagram · 1 diagram in section
