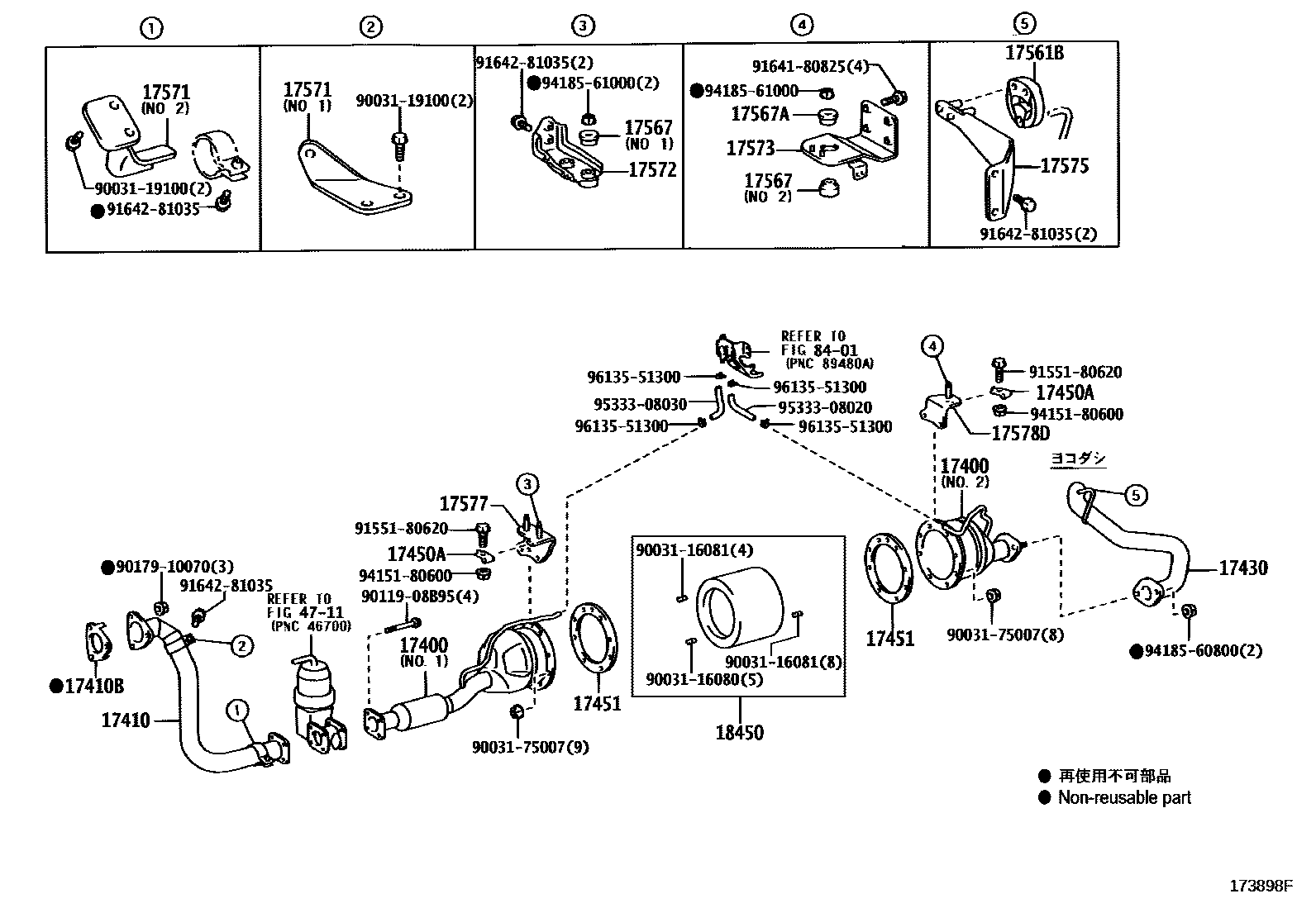

EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1 0005 1�������� = ����� OR ������ 0006 1������� ����� 0007 1 0008 1

17400CONVERTER ASSY, W/CATALYST

main17403-78580iN04C..XKU304,344200310-200610

main17406-78080iN04C..XKU304,344200310-200610

17410PIPE ASSY, EXHAUST, FRONT

main17401-78210iN04C..XKU304,344200310-200610

main17410-78060iN04C..XKU30#,338,34#,508200610

17410BGASKET, EXHAUST PIPE

main90917-06087iN04C..XKU30#,338,34#,508200610

17430PIPE ASSY, EXHAUST, TAIL

main17405-78830iN04C..XKU304200310-200406

main17405-78831iN04C..XKU304200406-200610

main17405-78840iN04C..XKU344200310-200610

main17405-78850iN04C..XKU344200310-200610

main17405-78861iN04C..XKU308,508..T4..5F200610-200908

main17405-78D20iN04C..XKU308,338,34#,508..5F200908

main17405-78D30iN04C..XKU308,508..T4..5F200908

main17405-78D40iN04C..XKU338200610-200908

main17405-78D50iN04C..XKU34#..5F200610-200908

main17405-78D60iN04C..XKU304200610-200908

main17405-78E10iN04C..XKU308,508..6FC;N04C..XKU304..6FC..DCRUE200801

main17405-78E20iN04C..XKU344..6FC200801

17450ACLAMP, EXHAUST PIPE, NO.5

main17589-78020×2iN04C..XKU304,344200310-200408

main17589-78021×2iN04C..XKU304,344200408-200610

17451GASKET, EXHAUST PIPE

main17451-78020×2iN04C..XKU304,344200310-200610

17561BSUPPORT, EXHAUST PIPE, NO.1

main17561-73020×2iN04C..XKU304..5F..DCRTJ;N04C..XKU308,338,508..DCRTJ; N04C..XKU344..6FC;N04C..XKU34#..5F..DCRTJ200610

17567CUSHION, EXHAUST PIPE SUPPORT

main17567-78030×2iN04C..XKU304,344200310-200610

main17567-78040×3iN04C..XKU304..5F..DCRTJ;N04C..XKU308,338,34#,508..DCRTJ200610

17567ACUSHION, EXHAUST PIPE SUPPORT, NO.2

main17567-78030×3iN04C..XKU30#,338,34#,508200610

17571BRACKET, EXHAUST PIPE SUPPORT, NO.1

main17571-78060iN04C..XKU304,344200310-200610

main17571-78070iN04C..XKU304,344200310-200411

main17571-78120iN04C..XKU304,344200412-200610

main17571-78130iN04C..XKU30#,338,34#,508200610

17572BRACKET, EXHAUST PIPE NO.1 SUPPORT

main17572-78210iN04C..XKU30#,338,34#,508200610

17573BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER

main17573-78200iN04C..XKU30#,508200610

main17573-78210iN04C..XKU34#..5F200610-200908

main17573-78220iN04C..XKU344..6FC;N04C..XKU34#..5F..DCRTJ200610

main17573-78250iN04C..XKU338200610

17575BRACKET, EXHAUST PIPE SUPPORT, NO.5

main17575-78200iN04C..XKU338..DCRTJ;N04C..XKU30#,508..DM6,T4;N04C..XKU308,508..T5..DCRTJ200610

main17575-78210iN04C..XKU344..6FC;N04C..XKU34#..5F..DCRTJ200610

main17575-78220iN04C..XKU308,508..T4..5F200610-200908

17577BRACKET, EXHAUST PIPE SUPPORT, NO.7

main17577-78050iN04C..XKU304,344200310-200610

main17577-78110iN04C..XKU308,338,34#,508..5F200610

main17577-78150iN04C..XKU304..5F200610

main17577-78170iN04C..XKU30#,344,508..6FC200801

17578DBRACKET, EXHAUST PIPE SUPPORT, NO.8

main17578-78100iN04C..XKU304,344200310-200610

main17578-78190iN04C..XKU308,338,34#,508..5F200610

main17578-78220iN04C..XKU304..5F200610

main17578-78240iN04C..XKU30#,344,508..6FC200801

18450CONVERTER ASSY, MONOLITHIC

main18450-78020iN04C..XKU304,344200310-200610

4711EXHAUST BRAKE ASSEMBLY & VACUUM CYLINDER

→ Go to FIG 47-11

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9003116080

main90031-16080

9003116081

main90031-16081

9003119100

main90031-19100

9003175007

main90031-75007

9011908B95

main90119-08B95

9017910070

main90179-10070

9155180620

main91551-80620

9164180825

main91641-80825

9164281035

main91642-81035

9415180600

main94151-80600

9418560800

main94185-60800

9418561000

main94185-61000

9533308020

main95333-08020

9533308030

main95333-08030

9613551300

main96135-51300

33 parts on this diagram · 8 diagrams in section
