STANDARD TOOL

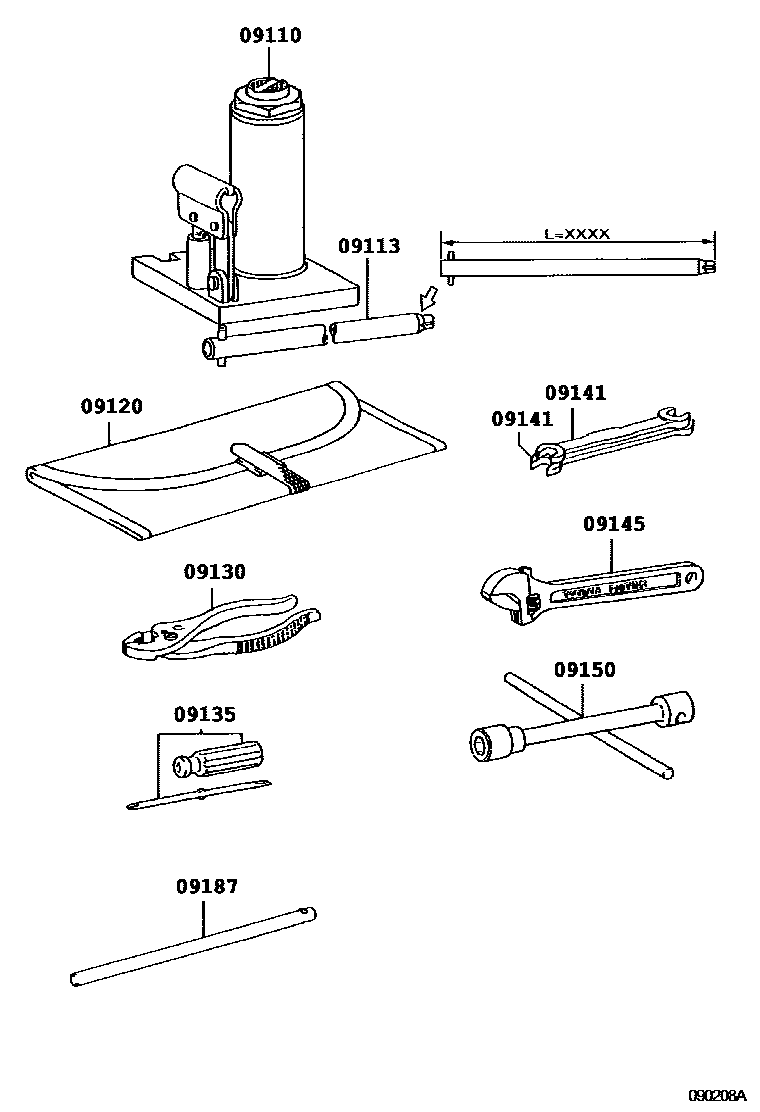

Parts diagram

09110JACK ASSY

main09111-37190i200310-200610

main09111-37200i200310-200406

main09111-37230i200610-200804

main09111-37260i200610-201106

main09111-37280i200805-200906

main09111-37281i200907-201005

main09111-37282i201006-201106

09113HANDLE, JACK

main09113-37060i200310-200610

main09113-37070i200310-200610

main09113-37120i200610

09120BAG, TOOL

main09120-37030i200310-200610

main09120-37031i201101

09130PLIERS

main99913-11500i200310-200610

09135DRIVER, SCREW

main99915-10700i200310-200610

09141SPANNER

main99914-10810i200610

main99914-11214i200610

09145WRENCH, MONKEY

main99911-11200i200310-200610

09150WRENCH, HUB NUT BOX

main09150-37030i200310-200610

09187HANDLE, SPARE WHEEL CARRIER

main09187-37010i200310-200610

9 parts on this diagram · 1 diagram in section
