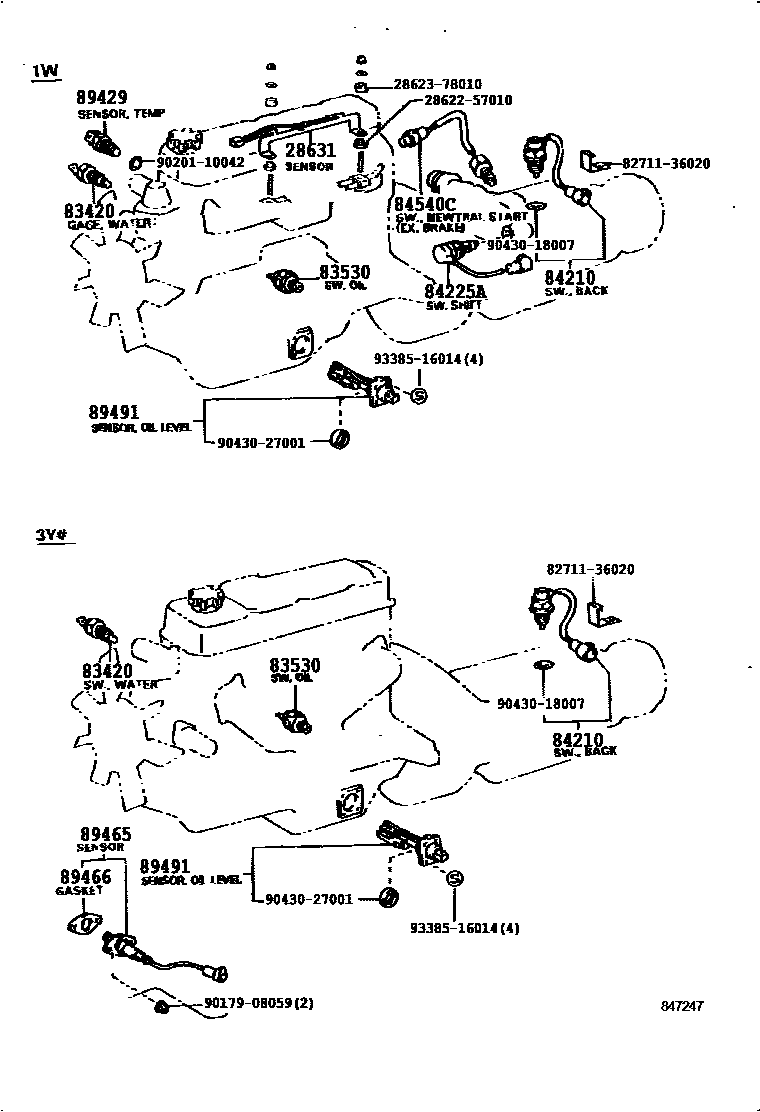

SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

28631SENSOR, GLOW PLUG CURRENT

main28631-78020i1W..WU75,85,9#198808-199505

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16040iWU85..T4;WU93,YU60199309-199505

main83420-16040iWU75,85,9#199309-199505

main83420-20020iWU75,9#198811-198910

main83420-20020iWU75,9#,YU6#,70198808-199309

main83420-20030iWU75,85,9#,YU60199309-199505

sub83420-16040

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14030iWU75,85,9#,YU6#,70198808-199309

sub83530-28030

main83530-14070iWU75,85,9#,YU60199309-199505

sub83530-28010

84210SWITCH ASSY, BACK-UP LAMP

main84210-30060iWU75,85,9#,YU60199309-199505

main84210-60021iWU75,85,9#,YU6#,70198808-199309

84225ASWITCH, SHIFT POSITION

main84225-36010iWU75,90,95198910-199505

84540CSWITCH ASSY, NEUTRAL (FOR EXHAUST BRAKE)

main84540-36040iWU75,90,95198808-199505

main84540-36050iWU85,93198910-199505

89429SENSOR, OIL TEMPERATURE

main89422-30020iWU75,85,9#198808-199505

sub89422-12010

89465SENSOR, OXYGEN

main89465-39765iYU60..CBR199309-199505

89466GASKET, OXYGEN SENSOR

main89466-20020iYU60..CBR199309-199505

89491SENSOR, ENGINE OIL LEVEL

main89491-26090iYU6#,70198910-199505

sub89491-26091

main89491-36030iWU75,85,9#198910-199505

2862257010INSULATOR, GLOW PLUG RESISTOR, NO.1

main28622-57010

2862378010INSULATOR, GLOW PLUG RESISTOR, NO.2

main28623-78010

8271136020WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-36020

9017908059

main90179-08059

9020110042

main90201-10042

9043018007

main90430-18007

9043027001

main90430-27001

9338516014

main93385-16014

18 parts on this diagram · 10 diagrams in section
