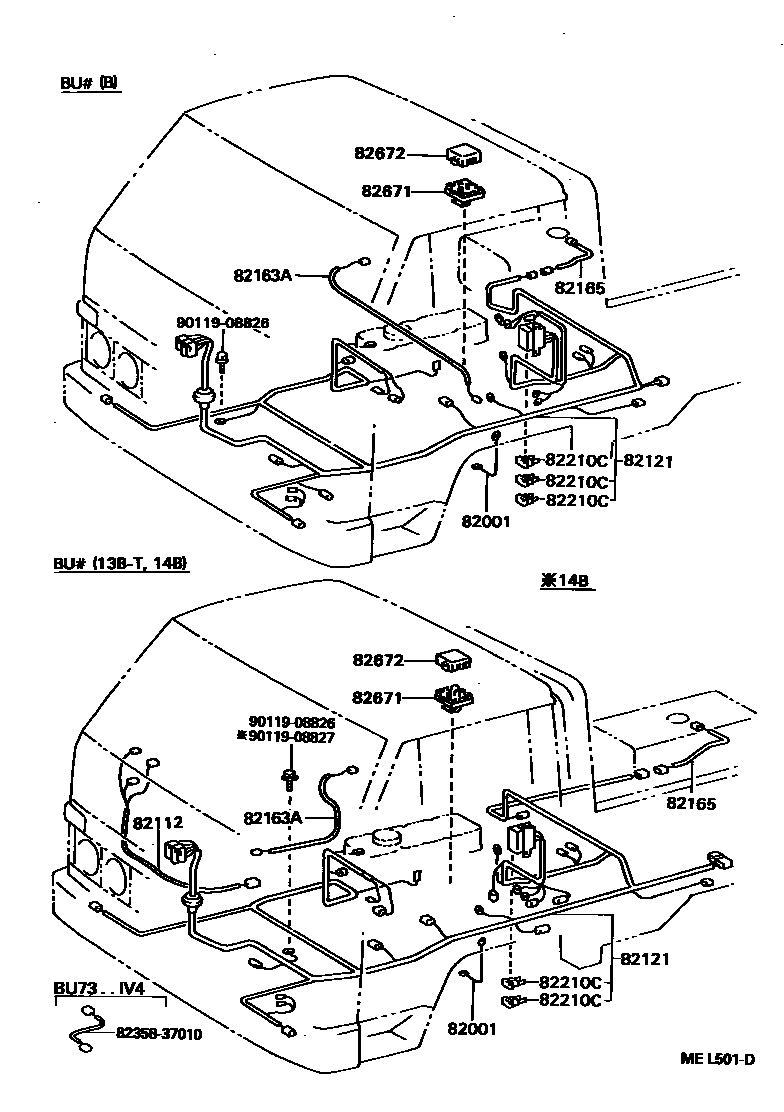

WIRING & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

82001CABLE, BOND, NO.1

main90038-55001iWU75,85,9#199407-199505

main90980-07153iYU6#,70198808-199109

ENGINE--FRAME

main90980-07201iYU60,70198808-199311

BODY--FRAME

main90980-07223iWU75,85,9#198808-199407

main90980-07243iYU61198808-199309

BODY--FRAME

main90980-07250iYU6#,70198808-198812

main90980-07273iYU60199311-199505

ENGINE FR--FRAME

82112WIRE, ENGINE ROOM, NO.2

82121WIRE, ENGINE

main82126-37010iYU60..LPG198912-199008

main82126-37011iYU60..LPG199008-199109

main82126-37012iYU60..LPG199109-199309

main82126-37013iYU60..LPG199309-199311

main82126-37090iYU60,70..CBR199008-199109

main82126-37091iYU60,70..CBR199109-199309

main82126-37092iYU60..CBR199309-199505

main82126-37100iYU61199008-199109

main82126-37101iYU61199109-199309

main82126-37380iWU75,9#199008-199109

main82126-37390iWU75,9#199008-199109

main82126-37392iWU75,90,95199109-199112

main82126-37393iWU75,90,95199112-199309

main82126-37394iWU75,90,95199309-199505

main82126-37400iWU85199008-199109

main82126-37402iWU85,93199109-199112

main82126-37403iWU85,93199112-199309

main82126-37404iWU85,93199309-199505

main82126-95415iYU61198808-198910

main82126-95435iWU75,9#198808-198910

main82126-95441iWU75,9#198808-198910

main82126-95447iYU60,70..CBR198808-198910

main82126-95B25iYU60..LPG198811-198910

main82126-95B57iYU60,70..CBR198910-199008

main82126-95B58iYU61198910-199008

main82126-95B59iYU60..LPG198910-198912

main82126-95B84iWU75,9#198910-199008

main82126-95B85iWU75,9#198910-199008

main82126-95B86iWU85198910-199008

82163WIRE, FLOOR, NO.3

main82163-95010iYU60..175198808-199309

82163AWIRE, FLOOR, NO.4

main82163-37010iYU60..175199309-199505

82165WIRE, FRAME, NO.2

main82165-92600iYU60,70..SRF,TW1,TW2198808-199505

82210CFUSIBLE LINK

main90982-08188iWU75,85,9#199109-199505

main90982-08189iYU60199311-199505

main90982-08202iYU6#,70..CBR198910-198912

main90982-08203iWU75,85,9#199109-199505

main90982-08228iWU75,9#198808-198910

main90982-08256iYU60..LPG198910-199109

82671BLOCK, JUNCTION

82672COVER, JUNKTION BLOCK

8235837010WIRE, OIL TEMPERATURE SENDER

main82358-37010

9011908826

main90119-08826

9011908827

main90119-08827

12 parts on this diagram · 9 diagrams in section
