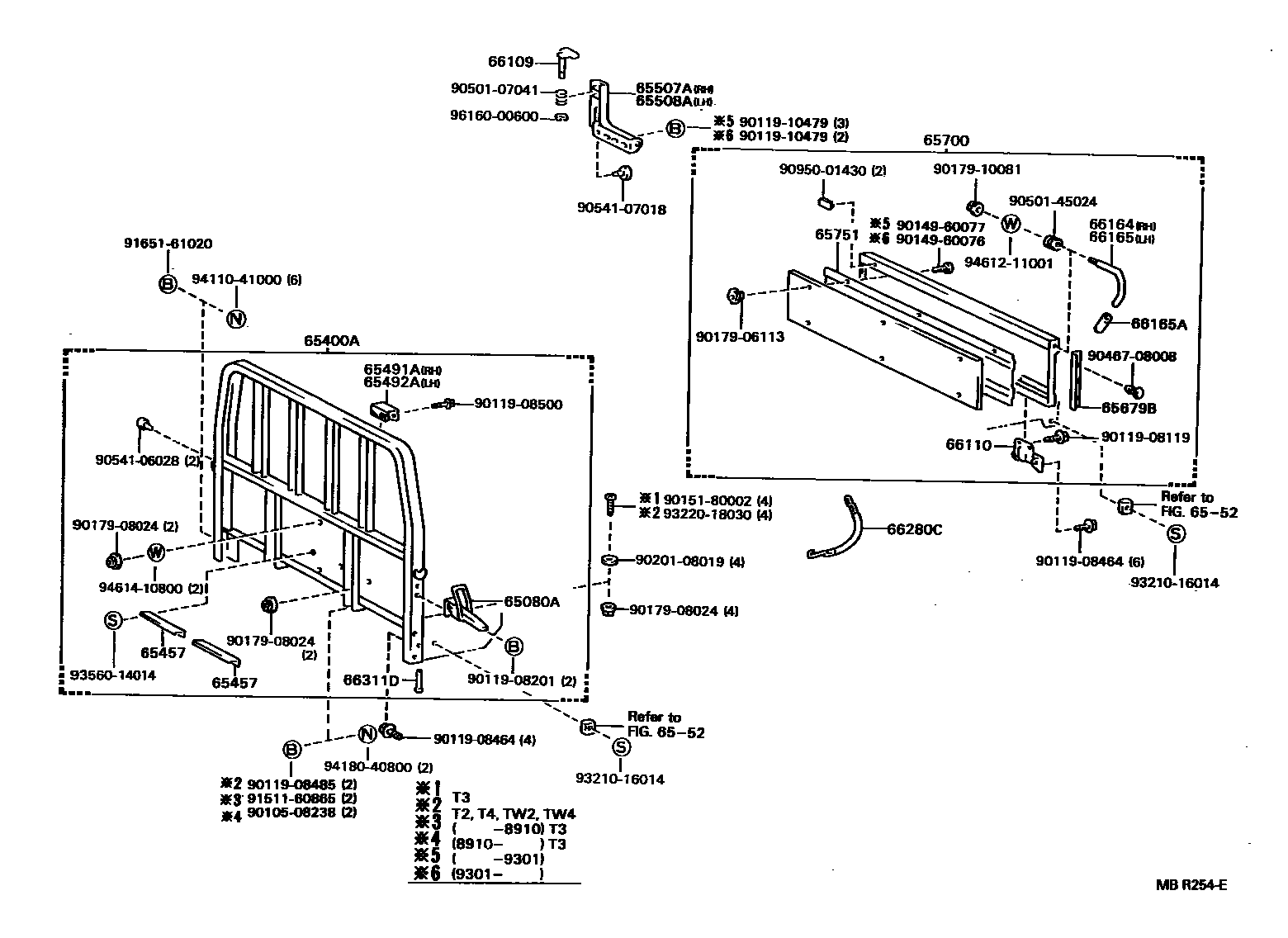

REAR BODY GUARD FRAME & TAIL GATE

0001 1 0002 1 0004 1 0005 1 0006 1 0007 1

65080AHANDLE ASSY, SIDE GATE LATCH

main65080-92701×2iWU85,9#,YU60..(T2,T3,T4,TW2)..CBU198808-199505

65400AGUARD ASSY, REAR BODY

main65400-37010iYU60..T1..CBU199008-199210

main65400-37011iYU60..T1..CBU199210-199309

main65400-37020iYU60..T2..CBR..CBU199008-199309

main65400-37090iYU60..ST..20T..CBU199309-199505

main65400-37100iYU60..T2..LPG..CBU199309-199310

main65400-37110iYU60..WT..175..CBU199309-199505

main65400-37140iYU60..T3..WT..CBU199309-199505

main65400-37180iWU85..T4..CBU199309-199505

main65400-37190iWU85..T3..CBU199309-199505

main65400-37210iWU9#..T3..CBU199309-199505

main65400-37220iWU90,93..T4..CBU199309-199505

main65400-37230iYU60..T2..CBR..CBU199309-199505

main65400-92130iWU85..T4..CBU199109-199309

main65400-92131iWU85..T3..CBU198910-199309

main65400-92134iWU90,93..T4..CBU198808-199309

main65400-92135iWU9#..T3..CBU198808-199309

main65400-92738iYU60..T3..ST..CBU198808-199309

main65400-92743iYU60..T2..LPG..CBU199008-199309

main65400-92747iYU60..T3..WT..CBU198808-199309

main65400-92749iYU60..WT..175..CBU198808-199309

main65400-95435iYU60..T1..CBU198808-199008

main65410-37050iYU60..ST..175..CBU199210-199505

main65410-92711iYU60..ST..175..CBU198808-199210

65457PLATE, BAFFLE DUST REAR BODY

main65457-37060iYU60..(T2,T3,TW2)..CBU199210-199505

CENTER,L=615

main65457-37090×2iWU85,9#..CBU199210-199505

main65457-37120×2iYU60..(T2,T3,TW2)..CBU199406-199505

SIDE,L=240

main65457-92702×2iYU60..(T2,T3)..CBU198808-199210

main65457-92703iWU85,9#..CBU198808-199210

65491ASTOP, GUARD FRAME LOAD SLIDE, RH

main65491-37010iYU60..(T2,T3,TW2)..CBU199008-199505

main65491-92702iYU60..(T2,T3,TW2)..CBU198808-199008

65492ASTOP, GUARD FRAME LOAD SLIDE, LH

main65492-37010iYU60..(T2,T3,TW2)..CBU199008-199505

main65492-92700iYU60..(T2,T3,TW2)..CBU198808-199008

65507ASUPPORT SUB-ASSY, CORNER, RH

main65507-92706iWU85,9#,YU60..(T2,T3,T4,TW2)..CBU198808-199505

65508ASUPPORT SUB-ASSY, CORNER, LH

main65508-92706iWU85,9#,YU60..(T2,T3,T4,TW2)..CBU198808-199505

6552REAR BODY FLOOR & FENDER

→ Go to FIG 65-52

65679BSEAL, TAIL GATE

main65679-92707×2iWU85,9#,YU60..(T2,T3,T4,TW2)..CBU198808-199505

65700GATE ASSY, REAR BODY TAIL

main65503-96319iWU75..CBU198808-199006

main65700-25010iYU60..(T1,TW1)..CBU199210-199505

main65700-92721iYU60..(T2,T3,TW2)..CBU198808-199505

main65700-92825iWU85..CBU198910-199505

main65700-92826iWU9#..CBU198808-199505

main65700-92829iWU95..CBU198808-199109

main65700-95030iYU60..(T1,TW1)..CBU198808-199210

main65701-93105iYU61..CBU198808-198906

main65701-93110iYU61..CBU198910-199309

main65701-93112iYU61..CBU198906-198910

main65701-93201iWU75..CBU199006-199109

main65701-93202iWU75..CBU199109-199505

65751PANEL, TAIL GATE

main65751-92703iYU60..(T2,T3,TW2)..CBU198808-199505

main65751-92805iWU9#..CBU198808-199505

main65751-92807iWU85..CBU198910-199505

66109HANDLE SUB-ASSY, SIDE GATE SUPPORT CORNER

main66109-92701×2iWU85,9#,YU60..(T2,T3,T4,TW2)..CBU198808-199505

66110HINGE ASSY, TAIL GATE

main66110-92702×3iWU85,9#..CBU; YU60..(T2,T3,TW2)..CBU198808-199505

main66110-95014×2iYU60..(T1,TW1)..CBU198808-199505

66164HANDLE, TAIL GATE LATCH, RH

main66264-92700iWU85,9#,YU60..(T2,T3,T4,TW2)..CBU198808-199505

66165HANDLE, TAIL GATE LATCH, LH

main66265-92700iWU85,9#,YU60..(T2,T3,T4,TW2)..CBU198808-199505

66165ACAP, GATE LATCH HANDLE

main66165-92701×2iWU85,9#,YU60..(T2,T3,T4,TW2)..CBU198808-199505

66280CCHAIN ASSY, TAIL GATE

main66280-37010×2iYU60..(T1,TW1)..CBU198910-199505

main66280-92702×2iWU85,9#,YU60..(T2,T3,T4,TW2)..CBU198808-199505

main66280-95403×2iYU60..(T1,TW1)..CBU198808-198910

66311DHOOK, ROPE

main66311-90K00×3iYU60..(T1,TW1)..CBU199210-199505

main66311-92701×2iWU85,9#,YU60..(T2,T3,T4,TW2)..CBU198808-199309

main66311-95010×3iYU60..(T1,TW1)..CBU198808-199210

9010508238

main90105-08238

9011908119

main90119-08119

9011908201

main90119-08201

9011908464

main90119-08464

9011908485

main90119-08485

9011908500

main90119-08500

9011910479

main90119-10479

9014960076

main90149-60076

9014960077

main90149-60077

9015180002

main90151-80002

9017906113

main90179-06113

9017908024

main90179-08024

9017910081

main90179-10081

9020108019

main90201-08019

9046708008

main90467-08008

9050107041

main90501-07041

9050145024

main90501-45024

9054106028

main90541-06028

9054107018

main90541-07018

9095001430

main90950-01430

9151160865

main91511-60865

9165161020

main91651-61020

9321016014

main93210-16014

9322018030

main93220-18030

9356014014

main93560-14014

9411041000

main94110-41000

9418040800

main94180-40800

9461211001

main94612-11001

9461410800

main94614-10800

9616000600

main96160-00600

48 parts on this diagram · 6 diagrams in section
