ROOF HEADLINING & SILENCER PAD

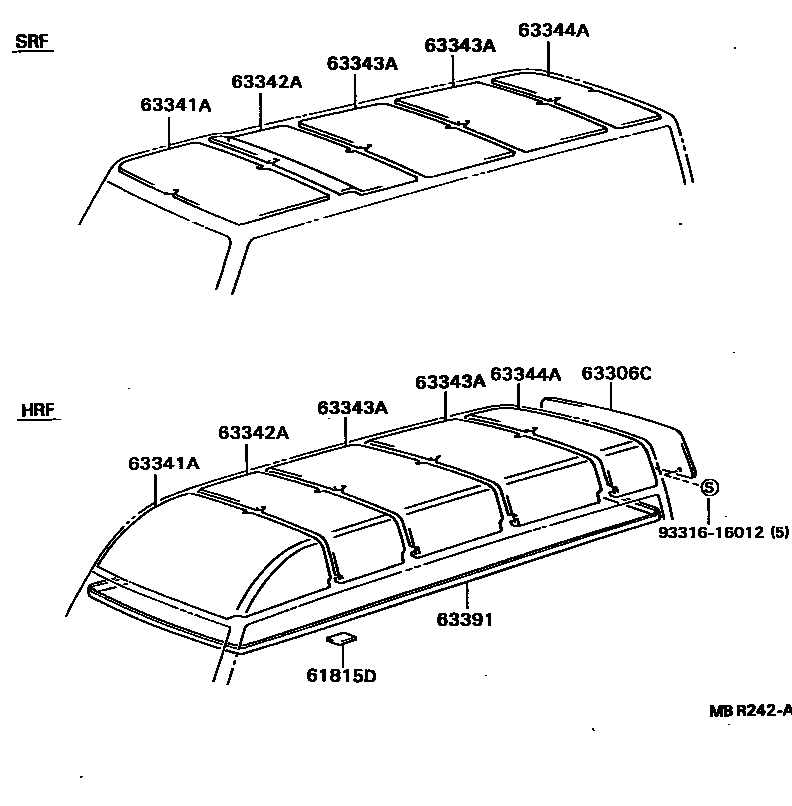

Parts diagram

61815DCOVER, ROOF SIDE

63306CSILENCER SUB-ASSY, ROOF, REAR

63341PAD, ROOF SILENCER, NO.1

main63341-95417i198808-199505

63341ASILENCER, ROOF, NO.1

main63341-37010-06i199005-199109

BROWN,TRIM4#

main63341-37010-B0i199109-199309

GRAY,TRIM1#

main63341-92607-06i198808-199005

BROWN,TRIM4#

main63341-95409-03i198808-199109

GRAY,TRIM8#

main63341-95409-06i198808-199109

BROWN,TRIM4#

main63341-95410-03i199109-199505

main63341-95410-06i198808-199109

main63341-95412-03i198808-199109

GRAY,TRIM8#

main63341-95412-06i198808-199109

BROWN,TRIM4#

main63341-95414-03i198808-199109

main63341-95414-06i198808-199109

main63341-95415-03i198808-199109

GRAY,TRIM8#

main63341-95415-06i198808-199109

BROWN,TRIM4#

63342PAD, ROOF SILENCER, NO.2

main63342-37040i199407-199505

main63342-95403i198808-199407

63342ASILENCER, ROOF, NO.2

main63342-37010-06i199005-199109

BROWN,TRIM4#

main63342-37010-B0i199109-199309

GRAY,TRIM1#

main63342-92604-06i198808-199005

BROWN,TRIM4#

main63342-95404-03i198808-199109

GRAY,TRIM8#

main63342-95404-06i198808-199109

BROWN,TRIM4#

63343PAD, ROOF SILENCER, NO.3

main63343-37040i199407-199505

main63343-95400i198808-199407

63343ASILENCER, ROOF, NO.3

main63343-37010-06×2i199005-199109

BROWN,TRIM4#

main63343-37010-B0×2i199109-199309

GRAY,TRIM1#

main63343-92600-06×2i198808-199005

BROWN,TRIM4#

63344PAD, ROOF SILENCER, NO.4

main63344-37030i199407-199505

main63344-95401i198808-199407

63344ASILENCER, ROOF, NO.4

main63344-37010-06i199005-199109

BROWN,TRIM4#

main63344-37010-B0i199109-199309

GRAY,TRIM1#

main63344-92600-06i198808-199005

BROWN,TRIM4#

63391TRIM, ROOF HEADLINING, FRONT

9331616012

main93316-16012

12 parts on this diagram · 3 diagrams in section
