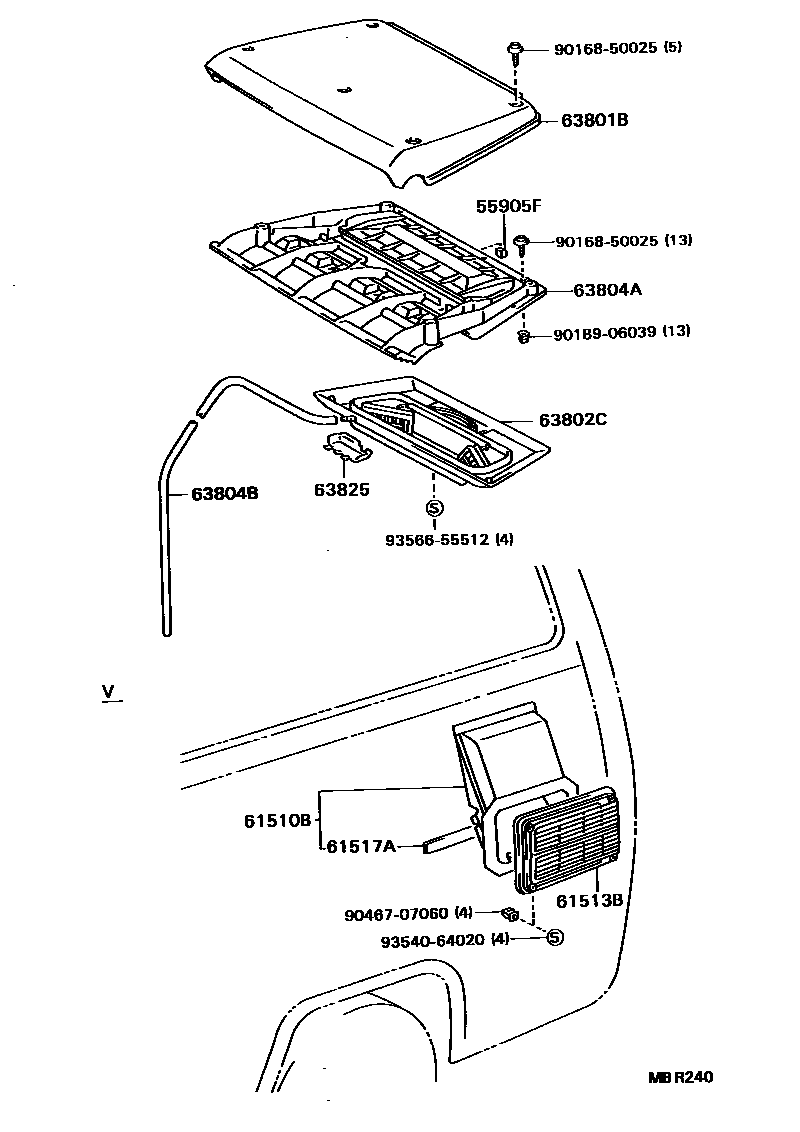

REAR VENTILATOR & ROOF VENTILATOR

55905FKNOB SUB-ASSY, CONTROL

main55905-10110iWU75,85,9#,YU6#198808-199505

61510BDUCT ASSY, REAR VENTILATOR ORNAMENT, LH

main61510-95A00iYU70198808-199309

61513BORNAMENT, REAR VENTILATOR, LH

main61513-95A00iYU70198808-199309

61517APACKING, REAR VENTILATOR

main61517-95A00iYU70198808-199309

63801BCOVER SUB-ASSY, ROOF VENTILATOR

main63801-95401iWU75,85,9#,YU6#198808-199505

63802CCOVER SUB-ASSY, ROOF VENTILATOR, NO.2

main63802-95400-03iWU75,85,9#,YU6#..TOY198808-199109

GRAY,TRIM8#

main63802-95400-06iWU75,85,9#,YU6#..DYN198808-199109

BROWN,TRIM4#

main63802-95400-B6iWU75,85,9#,YU6#199109-199505

GRAY,TRIM1#

63804AHOUSING SUB-ASSY, ROOF VENTILATOR

main63804-95400iWU75,85,9#,YU6#198808-199505

63804BHOSE, DRAIN(FOR ROOF VENTILATOR)

main88539-95402iWU75,85,9#,YU6#198808-199505

63825COVER, ROOF VENTILATOR DRAIN HOSE

main63825-95400-03iWU75,85,9#..TOY198808-199109

GRAY,TRIM8#

main63825-95400-06iWU75,85,9#..DYN198808-199109

BROWN,TRIM4#

9016850025

main90168-50025

9018906039

main90189-06039

9046707060

main90467-07060

9354064020

main93540-64020

9356655512

main93566-55512

14 parts on this diagram · 1 diagram in section
