INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1

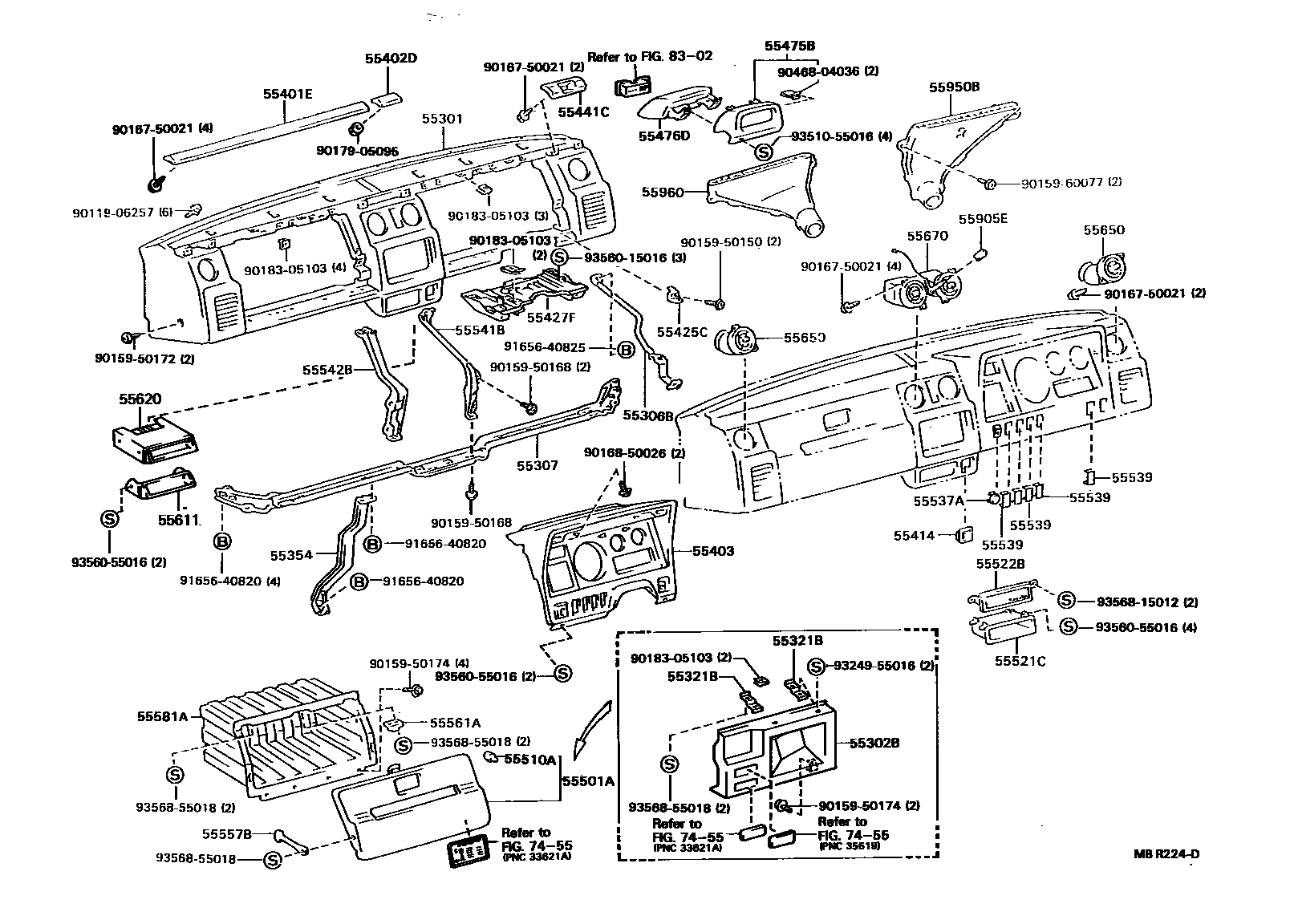

55301PANEL SUB-ASSY, INSTRUMENT

main55311-95425-04iYU6#..TOY198808-199109

BLUE,TRIM8#

main55311-95425-06iYU6#,70..DYN198808-199109

BROWN,TRIM4#

main55311-95425-B0iYU6#,70199109-199505

GRAY,TRIM1#

main55311-95428-04iWU75,85,9#..TOY198808-199109

BLUE,TRIM8#

main55311-95428-06iWU75,85,9#..DYN198808-199109

BROWN,TRIM4#

main55311-95428-B0iWU75,85,9#199109-199505

GRAY,TRIM1#

55302BPANEL SUB-ASSY, INSTRUMENT SIDE

main55302-95408-04iWU85,9#..TOY..IV3198808-199109

BLUE,TRIM8#

main55302-95408-06iWU85,9#..DYN..IV3198808-199109

BROWN,TRIM4#

main55302-95408-B0iWU85,9#..IV3199109-199505

GRAY,TRIM1#

55306BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL

main55306-95405iWU75,85,9#,YU6#,70198808-199505

55307REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, LOWER

main55307-95403iYU6#,70198808-199505

main55307-95405iWU75,85,9#198808-199505

55321BBRACKET, INSTRUMENT PANEL, NO.1

main55321-95404×2iWU85,9#..IV3198808-199505

55354BRACE, INSTRUMENT PANEL TO FLOOR

main55351-95400iWU75,85,9#,YU6#,70198808-199505

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-95414-04iWU75,85,9#..TOY198808-199109

BLUE,TRIM8#

main55401-95414-06iWU75,85,9#..DYN198808-199109

BROWN,TRIM4#

main55401-95414-B0iWU75,85,9#199109-199505

GRAY,TRIM1#

main55431-95012-04iYU6#..TOY198808-199109

BLUE,TRIM8#

main55431-95012-06iYU6#,70..DYN198808-199109

BROWN,TRIM4#

main55431-95012-B0iYU6#,70199109-199505

GRAY,TRIM1#

55402DPAD SUB-ASSY, INSTRUMENT PANEL SAFETY, NO.1

55403HOOD SUB-ASSY, METER

main55403-95B21-04iWU75,85,9#,YU6#..TOY198808-199109

BLUE,TRIM8#

main55403-95B21-06iWU75,85,9#,YU6#,70..DYN198808-199109

BROWN,TRIM4#

main55403-95B21-B0iWU75,85,9#,YU6#,70199109-199309

GRAY,TRIM1#

main55403-95B22-04iWU75,85,9#..TOY198808-199109

main55403-95B22-06iWU75,85,9#..DYN198808-199109

main55403-95B22-B0iWU75,85,9#,YU60199309-199505

GRAY,TRIM1#

main55403-95B23-04iWU75,85,9#..TOY198808-199109

main55403-95B23-06iWU75,85,9#..DYN198808-199109

main55403-95B23-B0iWU75,85,9#199109-199309

main55403-95B28-04iWU75,85,9#..TOY198808-199109

main55403-95B28-06iWU75,85,9#..DYN198808-199109

main55403-95B28-B0iWU75,90,95; WU85,93199109-199305

55414BEZEL, CIGAR LIGHTER HOLE

main55414-95J00iWU75,85,9#,YU6#,70198808-199505

55425CBRACKET, METER HOOD SET, NO.1

main55425-95404×2iWU75,85,9#,YU6#,70198808-199505

55427FBRACKET, METER HOOD SET, NO.3

main55427-95402iWU75,85,9#,YU6#,70198808-199505

55441CBOX, INSTRUMENT PANEL COIN

main55441-95417-04iYU6#..TOY198808-199109

BLUE,TRIM8#

main55441-95417-06iYU6#,70..DYN198808-199109

BROWN,TRIM4#

main55441-95417-B0iYU6#,70199109-199505

GRAY,TRIM1#

main55441-95418-04iWU75,85,9#..TOY198808-199109

BLUE,TRIM8#

main55441-95418-06iWU75,85,9#..DYN198808-199109

BROWN,TRIM4#

main55441-95418-B0iWU75,85,9#199109-199505

GRAY,TRIM1#

55475BGARNISH, INSTRUMENT CLUSTER FINISH PANEL, CENTER

55476DGARNISH, INSTRUMENT PANEL FINISH PLATE

55501ADOOR SUB-ASSY, GLOVE COMPARTMENT

main55501-95412-04iWU75,85,9#,YU6#..TOY198808-199109

BLUE,TRIM8#

main55501-95412-06iWU75,85,9#,YU6#,70..DYN198808-199109

BROWN,TRIM4#

main55501-95412-B0iWU75,85,9#,YU6#,70199109-199505

GRAY,TRIM1#

55510ACUSHION(FOR GLOVE COMPARTMENT DOOR)

main90541-03015iWU75,85,9#,YU6#,70198808-199505

main90541-05080×2iWU75,85,9#,YU6#,70198808-199505

OD=10

55521CCOVER, STEREO OPENING

main55521-14050-01iWU75,85,9#,YU6#,70..DYN; WU75,85,9#,YU6#..TOY198808-199109

BLACK,TRIM4#; BLACK,TRIM8#

55522BCOVER, RADIO TUNER OPENING

main55522-20040iWU75,85,9#,YU6#,70..CBR,DSL198808-199109

55537ACOVER, THROTTLE KNOB HOLE

main55537-95010-04iWU75,85,9#,YU60..TOY..(DSL,LPG)198808-199109

BLUE,TRIM8#

main55537-95010-16×2iYU6#,70..DYN..CBR199008-199109

BROWN,TRIM4#

main55537-95010-B0×2iWU75,85,9#,YU60..DSL,LPG; YU6#,70..CBR199109-199505

GRAY,TRIM1#

55539COVER, SPARE SWITCH HOLE

main55539-95J00-04iWU75,85,9#,YU6#..TOY198808-199109

BLUE,TRIM8#,42.6 X 24.6

main55539-95J00-06iWU75,85,9#,YU6#,70..DYN198808-199109

BROWN,TRIM4#,42.6 X 24.6

main55539-95J00-B0iWU75,85,9#,YU6#,70; WU75,85,9#,YU60,70199109-199309

GRAY,TRIM1#,42.6 X 24.6

55541BRETAINER, RADIO TUNER OPENING, NO.1

main55541-95407iWU75,85,9#,YU6#,70198808-199505

55542BRETAINER, RADIO TUNER OPENING, NO.2

main55542-95407iYU6#,70198808-199505

main55542-95408iWU75,85,9#198808-199505

55557BSTOPPER, GLOVE COMPERTMENT DOOR CHECK

main55557-95400-01×2iWU75,85,9#,YU6#,70..DYN; WU75,85,9#,YU6#..TOY198808-199109

BLACK,TRIM4#; BLACK,TRIM8#

55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK

main55561-95401-01iWU75,85,9#,YU6#,70..DYN; WU75,85,9#,YU6#..TOY198808-199109

BLACK,TRIM4#; BLACK,TRIM8#

55581ACOMPARTMENT, GLOVE

main55581-95400-01iWU75,85,9#,YU6#,70..DYN; WU75,85,9#,YU6#..TOY198808-199109

BLACK,TRIM4#; BLACK,TRIM8#

55611TRAY, INSTRUMENT PANEL UNDER

main55611-26010iWU75,85,9#,YU6#,70199109-199505

55620HOLDER ASSY, INSTRUMENT PANEL CUP

main55620-37010iWU75,85,9#,YU6#,70199109-199505

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-26010-B0×2iWU75,85,9#,YU6#,70199109-199505

GRAY,TRIM1#

main55650-95400-01×2iWU75,85,9#,YU6#,70..DYN; WU75,85,9#,YU6#..TOY198808-199109

BLACK,TRIM4#; BLACK,TRIM8#

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-26010-B0iYU6#,70199109-199505

GRAY,TRIM1#

main55670-37010-B0iWU75,85,9#199109-199505

GRAY,TRIM1#

main55670-95400-01iYU6#,70..DYN; YU6#..TOY198808-199109

BLACK,TRIM4#; BLACK,TRIM8#

main55670-95401-01iWU75,85,9#..DYN; WU75,85,9#..TOY198808-199109

BLACK,TRIM4#; BLACK,TRIM8#

55905EKNOB SUB-ASSY, CONTROL

main55905-12050-01iWU75,85,9#,YU6#,70..DYN; WU75,85,9#,YU6#..TOY198808-199109

BLACK,TRIM4#; BLACK,TRIM8#

main55905-37010-B0iWU75,85,9#,YU6#,70199109-199505

GRAY,TRIM1#

55950BNOZZLE ASSY, DEFROSTER, RH

main55950-95010iWU9#,YU60;WU75,85,YU61,70..DM1,SRF,T4198808-199505

55960NOZZLE ASSY, DEFLOSTER, LH

main55960-95010iWU9#,YU60;WU75,85,YU61,70..DM1,SRF,T4198808-199505

7455CAUTION PLATE

→ Go to FIG 74-55

8302INDICATOR

→ Go to FIG 83-02

9011906257

main90119-06257

9015950150

main90159-50150

9015950168

main90159-50168

9015950172

main90159-50172

9015950174

main90159-50174

9015960077

main90159-60077

9016750021

main90167-50021

9016850026

main90168-50026

9017905095

main90179-05095

9018305103

main90183-05103

9046804036

main90468-04036

9165640820

main91656-40820

9165640825

main91656-40825

9324955016

main93249-55016

9351055016

main93510-55016

9356015016

main93560-15016

9356055016

main93560-55016

9356815012

main93568-15012

9356855018

main93568-55018
