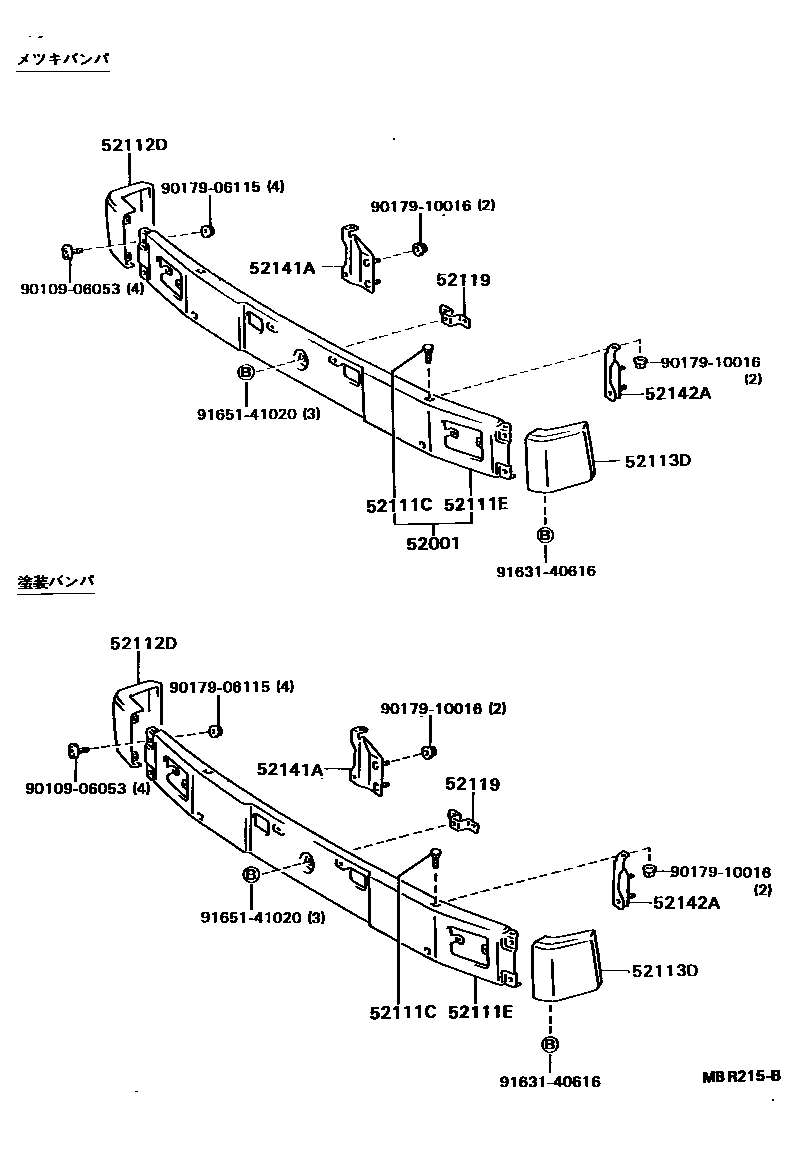

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

52001FRONT BUMPER SET

main52001-95400iYU6#,70198808-199505

***

main52001-95401iWU75,85,9#198808-199505

***

52111CBOLT, ROUND HEAD SQUARE NECK(FOR FRONT BUMPER)

main90112-10002×4iWU75,85,9#,YU6#,70199109-199505

main90112-10019×4iWU75,85,9#,YU6#,70198808-199109

52111EBAR, FRONT BUMPER

main52101-95407-03iWU75,85,9#198808-199109

SILVER M,SILVER M

main52101-95407-05iWU75,85,9#198808-199109

BEIGE M,048 ,4E4

main52101-95407-A0iWU75,85,9#199109-199505

WHITE,TRIM1#&048

main52101-95407-H0iWU75,85,9#..DYN199109-199505

TURCUOISE,TRIM1#&705

main52101-95407-J0iWU75,85,9#..TOY199109-199505

BLUE,8E5

main52101-95408iWU75,85,9#198808-199505

main52111-95428iYU6#,70198808-199505

main52111-95434-03iYU6#,70..DYN; YU6#..TOY198808-199109

SILVER M,048 ,705; SILVER M,048 ,8E5

main52111-95434-05iYU6#,70..DYN; YU6#..TOY198808-199109

BEIGE M,048; BEIGE M,048 ,4E4

main52111-95434-A0iYU6#,70199109-199505

WHITE,TRIM1#&048

main52111-95434-H0iYU6#..DYN199109-199505

TURCOISE,TRIM1#&705

main52111-95434-J0iYU6#..TOY199109-199505

BLUE,TRIM1#&8E5

52112DEXTENSION, FRONT BUMPER, RH

main52112-37010-A0iWU75,85,9#,YU6#,70199109-199505

WHITE,048

main52112-37010-H0iWU75,85,9#,YU6#..DYN199109-199505

TURCUOISE,705

main52112-37010-J0iWU75,85,9#,YU6#..TOY199109-199505

BLUE,8E5

main52112-95406iWU75,85,9#,YU6#,70198808-199109

52113DEXTENSION, FRONT BUMPER, LH

main52113-37010-A0iWU75,85,9#,YU6#,70199109-199505

WHITE,048

main52113-37010-H0iWU75,85,9#,YU6#..DYN199109-199505

TURCUOISE,705

main52113-37010-J0iWU75,85,9#,YU6#..TOY199109-199505

BLUE,8E5

main52113-95406iWU75,85,9#,YU6#,70198808-199109

52119STAY, FRONT BUMPER, CENTER

main52144-95400iYU6#,70198808-199505

52141AARM, FRONT BUMPER, UPPER RH

main52141-95400iYU6#,70198808-199505

main52141-95404iWU75,85,9#198808-199505

52142AARM, FRONT BUMPER, UPPER LH

main52142-95400iYU6#,70198808-199505

main52142-95404iWU75,85,9#198808-199505

9010906053

main90109-06053

9017906115

main90179-06115

9017910016

main90179-10016

9163140616

main91631-40616

9165141020

main91651-41020

13 parts on this diagram · 2 diagrams in section
