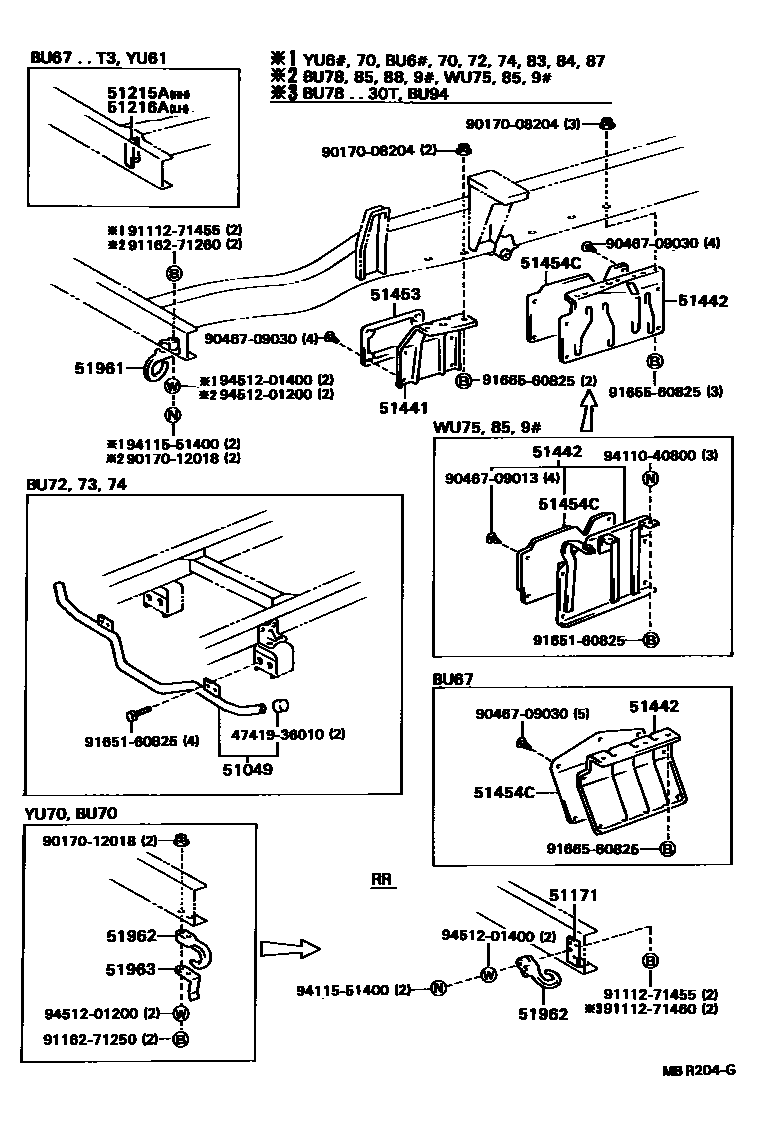

SUSPENSION CROSSMEMBER & UNDER COVER

51049BAR SUB-ASSY, UNDER GUARD, FRONT

51171REINFORCEMENT, SIDE RAIL REAR HOOK

main51171-36060iYU60,70..ST198808-199505

main51171-36070iYU60..WT198808-199505

51215AREINFORCEMENT, FRONT SUSPENSION MEMBER, RH

main51215-36040iYU61198808-199309

51216AREINFORCEMENT, FRONT SUSPENSION MEMBER, LH

main51215-36040iYU61198808-199309

51441COVER, ENGINE UNDER, NO.1

51442COVER, ENGINE UNDER, NO.2

main51440-36090iWU75,85,9#198808-199505

51453SILENCER, ENGINE UNDER COVER, FRONT

51454CSILENCER, ENGINE UNDER COVER, REAR

main51454-36010iWU75,85,9#198808-199505

51961HOOK, NO.1

main51961-36030iWU75,85,9#198808-199505

main51961-36040iYU6#,70198808-199505

51962HOOK, NO.2

main51961-36020iWU75,85,9#198808-199505

main51961-36040iYU6#198808-199505

main51961-60010iYU70198808-199309

51963STOPPER, HOOK WIRE

main51963-35010iYU70198808-199309

4741936010PLUG, HOLE(FOR FRONT BRAKE)

main47419-36010

9017008204

main90170-08204

9017012018

main90170-12018

9046709013

main90467-09013

9046709030

main90467-09030

9111271455

main91112-71455

9111271460

main91112-71460

9116271250

main91162-71250

9116271260

main91162-71260

9165160825

main91651-60825

9165560825

main91655-60825

9166560825

main91665-60825

9411040800

main94110-40800

9411551400

main94115-51400

9451201200

main94512-01200

9451201400

main94512-01400

27 parts on this diagram · 1 diagram in section
