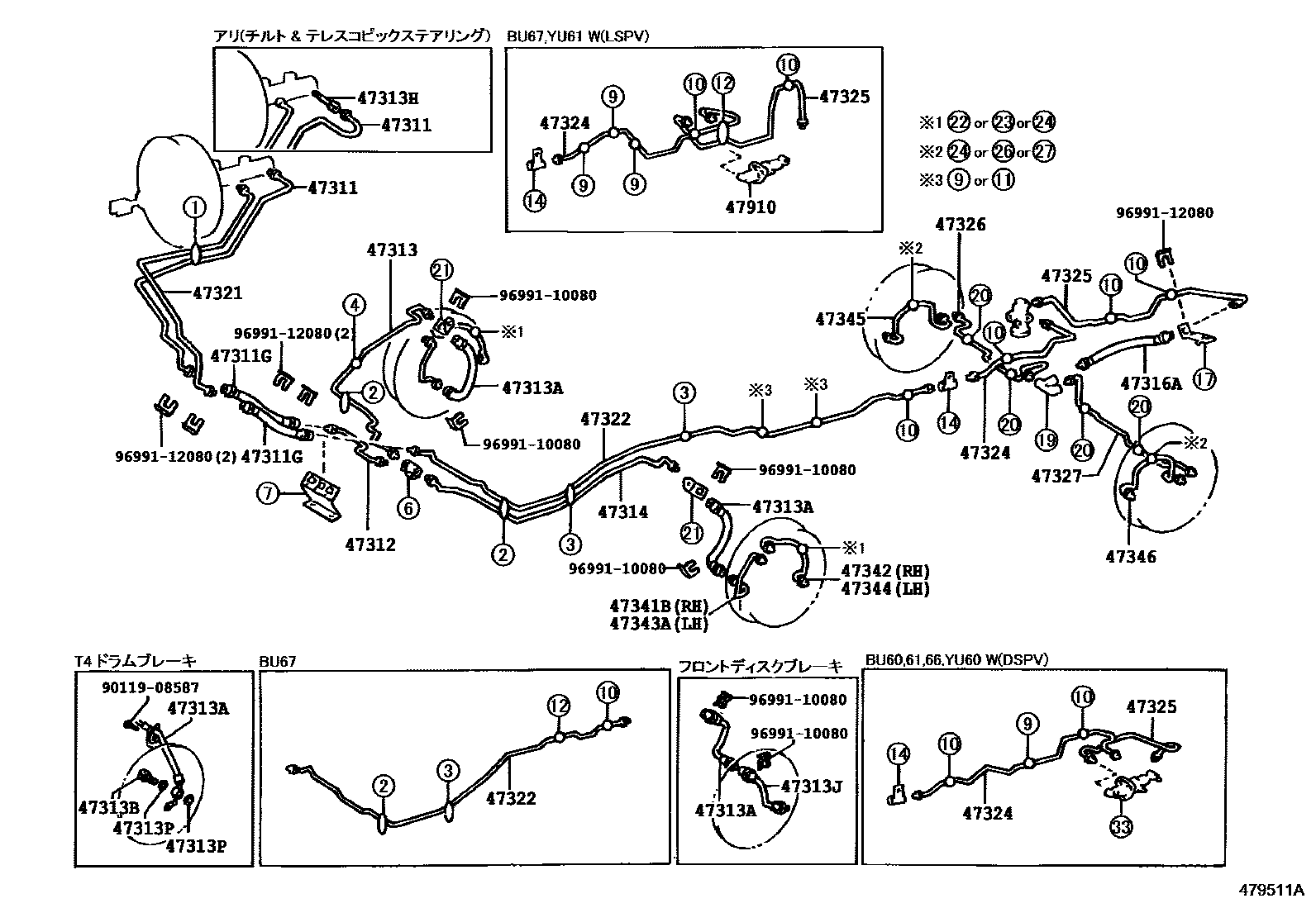

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1����� 0005 1�����

47311TUBE, FRONT BRAKE, NO.1

main47311-36380iYU6#,70199206-199309

main47311-36410iYU6#,70199206-199505

main47311-36450iWU75,85,9#198808-199505

47311GHOSE, FLEXIBLE(FOR BRAKE TUBE)

main90947-02519×2iWU85,93198910-199210

main96932-33705×2iYU6#,70198808-199505

main96932-34305×2iWU75,85,9#198808-199505

47312TUBE, FRONT BRAKE, NO.2

main47312-36230iWU75,85,9#198808-199003

main47312-36231iWU75,85,9#199003-199505

main47312-36250iYU6#,70198808-199505

47313TUBE, FRONT BRAKE, NO.3

main47313-36160iYU60,70198808-199505

main47313-36170iYU61198808-199006

main47313-36200iWU75,85,9#198808-199505

main47313-36210iYU61199006-199309

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02469×2iYU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2198808-199505

main90947-02470×2iYU6#..(DM1,T3)..WT198808-199505

main90947-02566×2iWU85,93198910-199505

main90947-02567×2iWU85,93198910-199210

main90947-02744×2iWU85,93199210-199505

main96940-33305×2iYU60..T3..WT198808-199505

main96950-34205×2iWU75,90,95198808-199505

47313HWAY, NO.3(FOR FRONT BRAKE TUBE)

main90404-12007iWU75,85,9#,YU6#,70..DM1,SRF,T1,T2,T3,T4,TW2198808-199001

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-02521×2iWU85,93,YU60..(T3,T4)..WT198808-199505

47314TUBE, FRONT BRAKE, NO.4

main47314-36230iYU60,70198808-199505

main47314-36240iYU61198808-199006

main47314-36280iWU75,85,9#198808-199505

main47314-36290iYU61199006-199309

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02518iWU85,93198910-199210

main96912-33605iYU61198808-199309

main96912-33705iYU60..T2,TW2198808-199505

main96912-34005iYU60,70..SRF,T1,T3,TW1198808-199505

main96912-34105iWU75,85,9#198808-199505

47321TUBE, REAR BRAKE, NO.1

main47321-36200iWU75,85,9#198808-199505

main47321-36280iYU6#,70198808-199505

47322TUBE, REAR BRAKE, NO.2

main47322-36201iYU61198808-199309

main47322-36241iYU60,70198808-199505

main47322-36280iWU75,85,9#198808-199505

47324TUBE, REAR BRAKE, NO.4

main47324-36110iYU60..WT198808-199505

main47324-36120iYU60..ST..20T..CBR198904-199505

main47324-36210iYU60,70..ST198808-199505

main47324-36230iYU61198808-199309

47325TUBE, REAR BRAKE, NO.5

main47325-36120iWU75,93,95198808-199505

main47325-36130iWU85,90198808-199505

main47325-36171iYU60..WT198808-199008

main47325-36180iYU60..WT198808-199008

main47325-36190iYU60..ST..20T..CBR198904-199505

main47325-36250iYU61198808-199008

main47325-36280iYU60,70..ST198808-199505

main47325-36300iYU61198808-199008

47326TUBE, REAR BRAKE, NO.6

main47326-36100iYU60..T2,TW2198808-199505

main47326-36120iYU60..T3..WT198808-199505

main47326-36130iYU61198808-199309

main47326-36150iWU85,93198910-199505

main47329-36140iYU60,70..ST198808-199505

main47329-36180iWU75,9#198808-198905

main47329-36181iWU75,90,95198905-199505

47327TUBE, REAR BRAKE, NO.7

main47327-36110iYU61198808-199309

main47327-36130iYU60,70..ST198808-199505

main47327-36150iYU60..T3..WT198808-199505

main47327-36160iYU60..T2,TW2198808-199505

main47327-36180iWU85,93198910-199505

main47331-36210iWU75,9#198808-198905

main47331-36211iWU75,90,95198905-199505

47341BTUBE, WHEEL CYLINDER, FRONT RH NO.1

main47341-36060iWU75,90,95198808-199505

main47341-36070iYU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2198808-199505

main47341-36090iWU85,93,YU6#..(DM1,T3,T4)..WT198808-199505

47342TUBE, WHEEL CYLINDER, FRONT RH NO.2

main47342-36020iYU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2198808-199505

main47342-36030iWU85,93,YU6#..(DM1,T3,T4)..WT198808-199505

main47342-36050iWU75,90,95198808-199505

47343ATUBE, WHEEL CYLINDER, FRONT LH NO.1

main47343-36060iWU75,90,95198808-199505

main47343-36070iYU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2198808-199505

main47343-36090iWU85,93,YU6#..(DM1,T3,T4)..WT198808-199505

47344TUBE, WHEEL CYLINDER, FRONT LH NO.2

main47342-36020iYU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2198808-199505

main47342-36030iWU85,93,YU6#..(DM1,T3,T4)..WT198808-199505

main47342-36050iWU75,90,95198808-199505

47345TUBE, WHEEL CYLINDER, REAR RH

main47342-36050iWU75,90,95198808-199505

main47342-36060iYU60..T2,TW2198808-199505

main47345-36011iYU60,70..ST198808-199505

main47345-36040iWU85,93,YU6#..(DM1,T3,T4)..WT198808-199505

47346TUBE, WHEEL CYLINDER, REAR LH

main47342-36050iWU75,90,95198808-199505

main47344-36060iYU60..T2,TW2198808-199505

main47345-36011iYU60,70..ST198808-199505

main47345-36040iWU85,93,YU6#..(DM1,T3,T4)..WT198808-199505

47910VALVE ASSY, LOAD SENSING PROPORTIONING

main47910-36050iYU6#,70198808-199505

9011908587

main90119-08587

9699110080

main96991-10080

9699112080

main96991-12080

25 parts on this diagram · 5 diagrams in section
