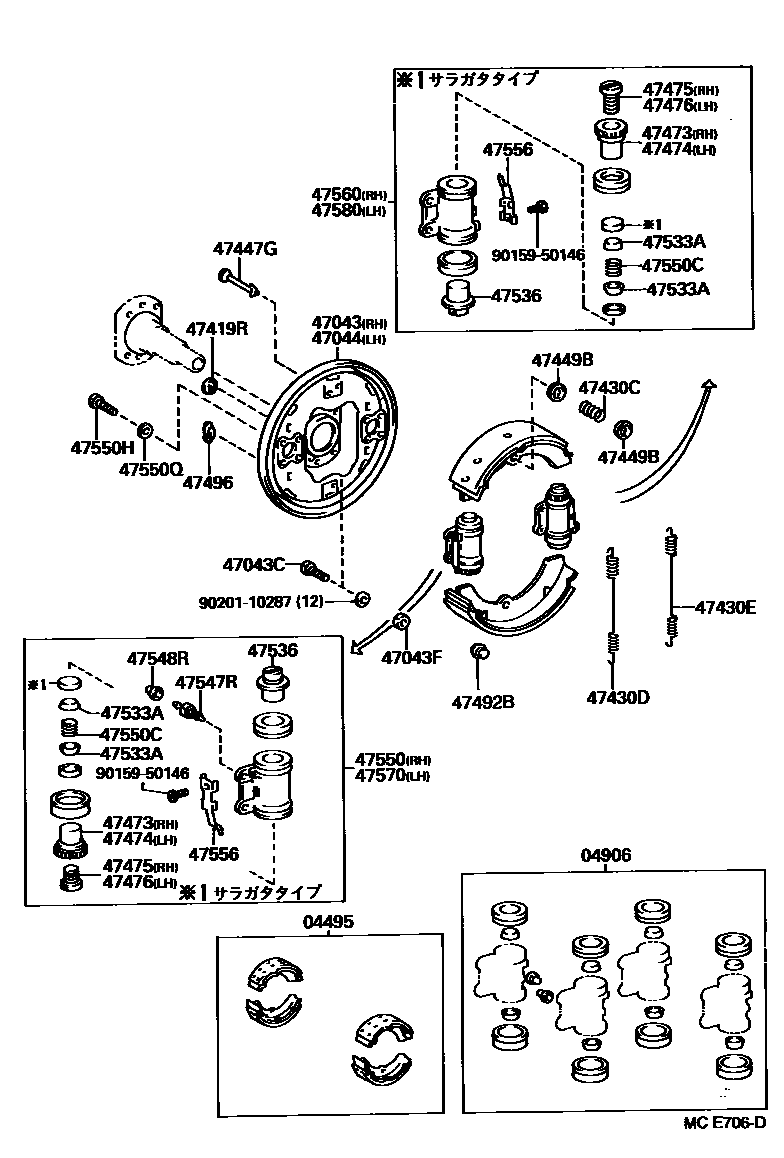

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1 0003 1 0004 1��(�-� ������) 0005 1��(�-� ������)

04495SHOE KIT, REAR BRAKE

main04494-36070iWU75,90,95198808-199111

main04494-36080iYU60,70..ST198808-199109

main04494-36090iYU60..T2,TW2198808-199109

main04494-36150iYU60..T2,TW2199109-199505

main04494-36160iYU60,70..ST199109-199505

main04494-36170iWU75,90,95199111-199505

main04495-36070iWU85,YU61;YU60..T3..WT..CBU;YU60..T3..WT..LPG..IV3198808-199103

main04495-36080iWU85,YU60..T3..WT198808-199109

main04495-36110iWU85,93,YU6#..(DM1,T3,T4)..WT199103-199505

main04496-36070iWU75,90,95198808-199111

REBUILT

main04496-36080iYU60,70..ST198808-199505

REBUILT

main04496-36090iYU60..T2,TW2198808-199109

REBUILT

main04497-36070iWU85,YU61;YU60..T3..WT..CBU;YU60..T3..WT..LPG..IV3198808-199103

REBUILT

main04497-36080iWU85,YU60..T3..WT198808-199109

04906CUP KIT, REAR WHEEL CYLINDER

main04906-36060iWU75,90,95198808-199505

main04906-36070iYU60..T3..WT..CBR..IV3198808-199303

main04906-36080iYU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2198808-199505

main04906-36090iYU6#..(DM1,T3)..WT198808-199505

W/C ID=25.4

main04906-36120iWU85,93,YU60..(T3,T4)..WT198808-199303

main04906-36170iWU85,93; YU60..T3..WT..CBR..IV3199303-199505

main04906-36180iWU93;WU85..20T;WU85..30T..CBU;WU85..DYN..30T..IV3; YU60..T3..WT;WU85..TOY..30T..IV3199309-199505

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-36080iWU75,90,95198808-199505

main47043-36090iYU60,70..ST198808-199505

main47043-36100iYU60..T2,TW2198808-199505

main47043-36110iWU85,93,YU6#..(DM1,T3,T4)..WT198808-199210

main47043-36140iWU85,93,YU6#..(DM1,T3,T4)..WT199210-199505

47043CBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90114-10019×12iWU85,93,YU6#,70..DM1,SRF,T1,T3,T4,TW1; YU60..T2,TW2198808-199505

main90114-14004×12iWU75,90,95198808-199505

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90170-10178×8iWU85,93,YU6#,70..DM1,SRF,T1,T3,T4,TW1; YU60..T2,TW2198808-199505

main90170-14002×12iWU75,90,95198808-199505

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-36040iWU75,90,95198808-199505

main47044-36090iYU60,70..ST198808-199505

main47044-36100iYU60..T2,TW2198808-199505

main47044-36110iWU85,93,YU6#..(DM1,T3,T4)..WT198808-199210

main47044-36140iWU85,93,YU6#..(DM1,T3,T4)..WT199210-199505

47419RPLUG, HOLE(FOR REAR BRAKE)

main47419-35011×4iWU85,93,YU6#,70198808-199505

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-20012×4iWU75,85,9#,YU6#,70198808-199505

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-29006×2iYU60,70..ST198808-199505

main90507-29002×2iYU60..T2,TW2198808-199505

main90507-29006×2iWU75,85,9#,YU6#..(DM1,T3,T4)..WT198808-199505

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-29006×2iYU60,70..ST198808-199505

main90507-29002×2iYU60..T2,TW2198808-199505

main90507-29006×2iWU75,85,9#,YU6#..(DM1,T3,T4)..WT198808-199505

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-20010×4iYU60..T2,TW2198808-199505

main47447-36020×4iYU60,70..ST198808-199505

main47447-60010×4iWU75,85,9#,YU6#..(DM1,T3,T4)..WT198808-199505

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30020×8iWU75,85,9#,YU6#,70198808-199505

47473NUT, REAR WHEEL CYLINDER ADJUSTING, RH(FOR REAR BRAKE)

main47551-36023×2iWU75,90,95198808-199505

main47551-36130×2iWU85,93198910-199303

main47551-36150×2iYU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2198808-199505

main47551-36160×2iYU6#..(DM1,T3)..WT198808-199505

W/C ID=25.4

47474NUT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE)

main47552-36023×2iWU75,90,95198808-199505

main47552-36130×2iWU85,93198910-199303

main47552-36150×2iYU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2198808-199505

main47552-36160×2iYU6#..(DM1,T3)..WT198808-199505

W/C ID=25.4

47475BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE)

main47553-36030×2iWU75,90,95198808-199505

main47553-36050×2iYU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2198808-199505

main47553-36060×2iWU85,93,YU6#..(DM1,T3,T4)..WT198808-199505

main47553-36070×2iWU85,93,YU60..(T3,T4)..WT198808-199309

47476BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE)

main47554-36030×2iWU75,90,95198808-199505

main47554-36050×2iYU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2198808-199505

main47554-36060×2iWU85,93,YU6#..(DM1,T3,T4)..WT198808-199505

main47554-36070×2iWU93;WU85..20T;WU85..30T..CBU;WU85..DYN..30T..IV3; YU60..T3..WT;WU85..TOY..30T..IV3199309-199505

47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)

main47492-28010×4iWU75,90,95; YU60,70..ST; YU60..T2,TW2198808-199505

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-36010×8iWU93;WU85..20T;WU85..30T..CBU;WU85..DYN..30T..IV3; YU60..T3..WT;WU85..TOY..30T..IV3199309-199505

47533ASEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE)

main47533-25010×8iWU75,90,95198808-199505

main47533-30011×8iYU60..T3..WT..CBR..IV3; YU60..T3..WT..CBU;YU60..T3..WT..LPG..IV3198808-199303

main47533-40013×8iYU6#,70198808-199505

W/C ID=25.4

47536PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)

main47531-36032×4iWU75,90,95198808-199505

main47536-36020×4iYU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2198808-199505

main47536-36030×4iYU6#..(DM1,T3)..WT198808-199505

W/C ID=25.4

main47536-36040×4iYU60..T3..WT..CBR..IV3; YU60..T3..WT..CBU;YU60..T3..WT..LPG..IV3198808-199303

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-12010×2iWU75,85,9#,YU6#,70198808-199505

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010×2iWU75,85,9#,YU6#,70198808-199505

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-36070iWU75,90,95198808-199505

main47550-36100iYU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2198808-199505

main47550-36110iYU6#..(DM1,T3)..WT198808-199505

W/C ID=25.4

main47550-36120iYU60..T3..WT..CBR..IV3198808-199303

main47550-36140iWU85,93,YU60..(T3,T4)..WT199109-199303

main47550-36150iWU85,YU60..T3..WT198808-199109

main47550-36230iWU85,93; YU60..T3..WT..CBR..IV3199303-199505

main47550-36240iWU93;WU85..20T;WU85..30T..CBU;WU85..DYN..30T..IV3; YU60..T3..WT;WU85..TOY..30T..IV3199309-199505

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main90501-08122×4iYU60..T3..WT..CBR..IV3; YU60..T3..WT..CBU;YU60..T3..WT..LPG..IV3198808-199303

main90501-09735×4iYU6#,70198808-199505

W/C ID=25.4

main90501-10759×4iWU75,90,95198808-199505

47550HBOLT(FOR REAR WHEEL CYLINDER)

main90101-08081×16iYU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2198808-199505

main90101-10127×16iWU75,85,9#,YU6#..(DM1,T3,T4)..WT198808-199505

47550QWASHER(FOR REAR WHEEL CYLINDER)

main90201-08002×16iYU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2198808-199505

main90201-10287×16iWU75,85,9#,YU6#..(DM1,T3,T4)..WT198808-199505

47556SPRING, ADJUSTER LOCK(FOR REAR BRAKE)

main47555-36020×4iWU75,90,95198808-199505

main47555-36051×4iWU85,93,YU6#,70198808-199505

47560CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER)

main47560-36070iWU75,90,95198808-199505

main47560-36100iYU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2198808-199505

main47560-36110iYU6#..(DM1,T3)..WT198808-199505

W/C ID=25.4

main47560-36120iWU85,93198910-199303

main47560-36140iWU85,93,YU60..(T3,T4)..WT199109-199303

main47560-36150iWU85,YU60..T3..WT198808-199109

main47560-36230iWU85,93; YU60..T3..WT..CBR..IV3199303-199505

main47560-36240iWU93;WU85..20T;WU85..30T..CBU;WU85..DYN..30T..IV3; YU60..T3..WT;WU85..TOY..30T..IV3199309-199505

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47570-36070iWU75,90,95198808-199505

main47570-36100iYU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2198808-199505

main47570-36110iYU6#..(DM1,T3)..WT198808-199505

W/C ID=25.4

main47570-36120iYU60..T3..WT..CBR..IV3198808-199303

main47570-36140iWU85,93,YU60..(T3,T4)..WT199109-199303

main47570-36150iWU85,YU60..T3..WT198808-199109

main47570-36230iWU85,93; YU60..T3..WT..CBR..IV3199303-199505

main47570-36240iWU93;WU85..20T;WU85..30T..CBU;WU85..DYN..30T..IV3; YU60..T3..WT;WU85..TOY..30T..IV3199309-199505

47580CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER)

main47580-36070iWU75,90,95198808-199505

main47580-36100iYU60..T3..ST;YU60,70..SRF,T1,T2,TW1,TW2198808-199505

main47580-36110iYU6#..(DM1,T3)..WT198808-199505

W/C ID=25.4

main47580-36120iYU60..T3..WT..CBR..IV3198808-199303

main47580-36140iWU85,93,YU60..(T3,T4)..WT199109-199303

main47580-36150iWU85,YU60..T3..WT198808-199109

main47580-36230iWU85,93; YU60..T3..WT..CBR..IV3199303-199505

main47580-36240iWU93;WU85..20T;WU85..30T..CBU;WU85..DYN..30T..IV3; YU60..T3..WT;WU85..TOY..30T..IV3199309-199505

9015950146

main90159-50146

9020110287

main90201-10287

32 parts on this diagram · 5 diagrams in section
