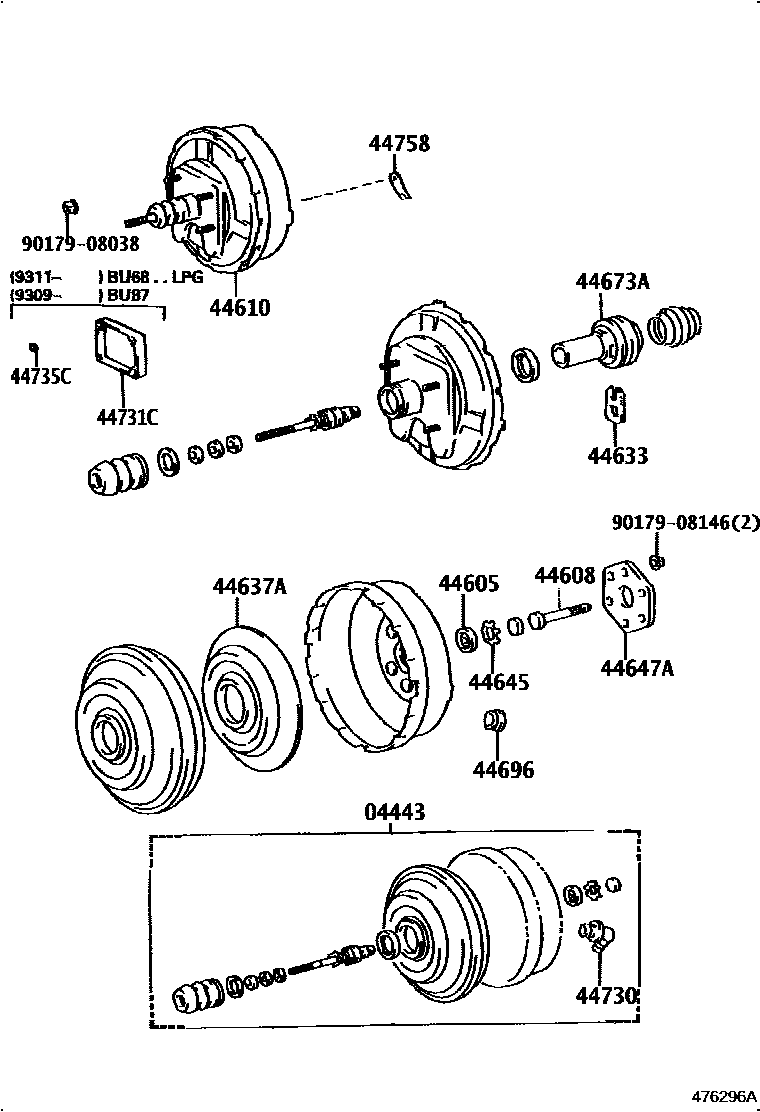

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1

04443BOOSTER KIT, BRAKE

main04443-36091iWU75,90,95198808-199505

main04443-36101iWU85,93198910-199505

main04443-36110iYU6#,70198808-199505

main04443-36150iYU60..T3..WT198808-199505

44605PLATE & SEAL SUB-ASSY, BOOSTER

main44605-36220iWU75,85,9#,YU6#,70198808-199505

44608PUSH ROD SUB-ASSY, BOOSTER

main44608-25150iWU75,85,9#,YU6#,70198808-199505

44610BOOSTER ASSY, BRAKE

main44610-36321iWU75,90,95198808-199505

main44610-36371iWU85,93198910-199505

main44610-36460iYU6#,70198808-199505

main44610-36470iYU60..T3..WT198808-199505

44633KEY, BOOSTER VALVE PLUNGER

main44633-28130iWU75,85,9#,YU6#,70198808-199505

44637APLATE, BOOSTER DIAPHRAGM

main44637-25150iWU75,85,9#,YU6#,70198808-199505

44645RETAINER, BOOSTER PUSH ROD SEAL

main44645-36220iWU75,85,9#,YU6#,70198808-199505

44647AROD, BOOSTER PISTON

main44647-25150iWU75,85,9#,YU6#,70198808-199505

44673ABODY, BOOSTER VALVE

main44673-25150iWU85,93,YU6#,70198808-199505

main44673-36321iWU75,90,95198808-199505

44696GROMMET, CHECK VALVE

main90480-24015iYU6#,70198808-199505

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-28010iYU6#,70198808-199505

main44730-60040iWU75,85,9#198808-199505

44758BRACKET, VACUUM CHECK VALVE

main44758-36070iYU6#,70198808-199505

9017908038

main90179-08038

9017908146

main90179-08146

14 parts on this diagram · 3 diagrams in section
