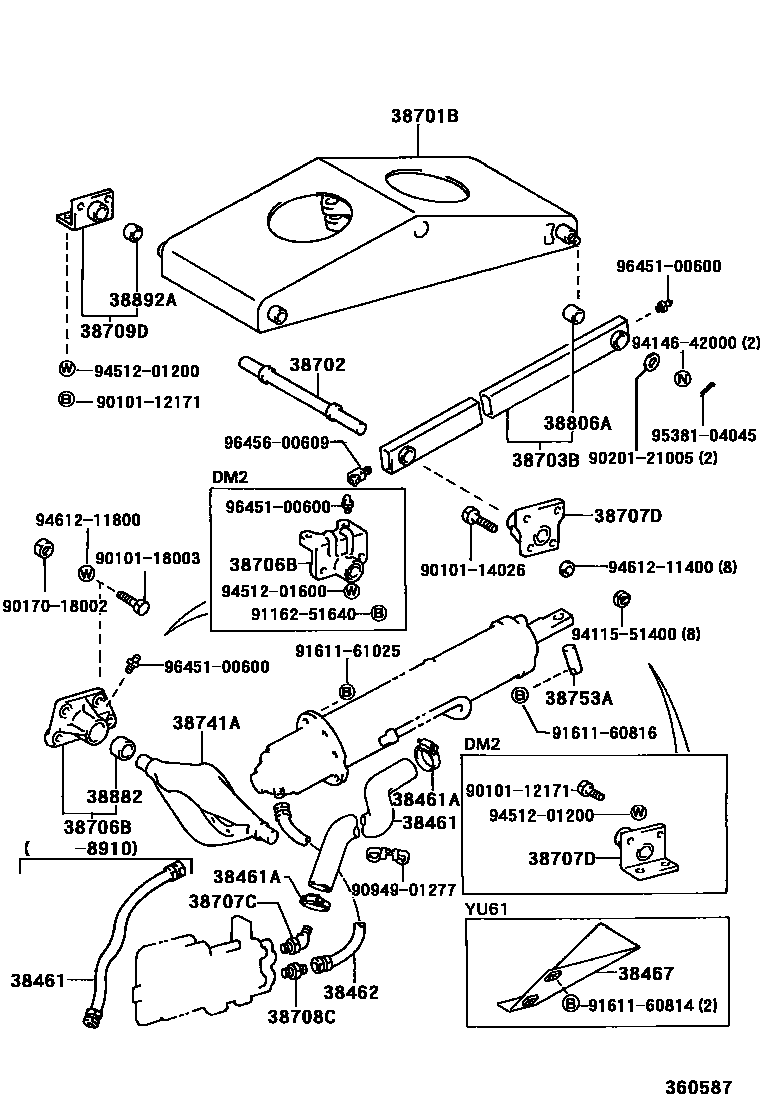

HOIST CYLINDER TRUNNION & LIFT ARM

0001 1 0002 1 0003 1 0004 1

38461HOSE, POWER OIL PUMP SUCTION

main38461-93103iYU61..CBU199210-199309

main38461-96304iYU61..CBU198808-198910

main38461-96306iWU75..CBU198808-199109

main38461-96308iYU61..CBU198910-199210

38461ACLAMP (FOR POWER OIL PUMP SUCTION)

main90460-44002×2iYU61..CBU199210-199309

38462HOSE, POWER OIL PUMP DELIVERY

main38462-93103iYU61..CBU199210-199309

main38462-93200iWU75..CBU199109-199505

main38462-96304iYU61..CBU198808-198910

main38462-96306iWU75..CBU198808-198910

main38462-96308iYU61..CBU198910-199210

main38462-96310iWU75..CBU198910-199109

38467INSULATOR, POWER OIL HOSE

main38467-96300iYU61..CBU198808-199309

38701BARM SUB-ASSY, LIFT

main38701-96305iYU61..CBU198808-198911

main38701-96308iWU75..CBU198808-199109

main38701-96309iYU61..CBU198911-199309

38702SHAFT SUB-ASSY, TENSION ARM

main38702-96304iYU61..CBU198808-199309

38703BARM SUB-ASSY, TENSION

main38703-93201×2iWU75..CBU199109-199505

main38703-96302×2iYU61..CBU198808-199309

main38703-96304×2iWU75..CBU198808-199109

38706BBRACKET SUB-ASSY, TRUNNION

main38706-96304×2iYU61..CBU198808-199309

main38706-96305×2iWU75..CBU198808-199109

38707CUNION (FOR SUCTION HOSE)

main90404-81001iWU75..CBU198808-199109

main90404-81003iWU75..CBU199109-199505

main90407-26001iYU61198808-198910

main90407-80001iYU61198910-199210

38707DBRACKET SUB-ASSY, TENSION ARM SHAFT

main38707-96308×2iYU61..CBU198808-199309

38708CUNION (FOR DELIVERY HOSE)

main90404-26002iWU75..CBU198808-198910

main90407-21001iYU61..CBU199210-199309

HOIST CYLINDER SIDE

main90407-26002iYU61198808-198910

main90407-79001iYU61198910-199309

POWER TAKE-OFF ASSY SIDE

38709DBRACKET SUB-ASSY, LIFT ARM

main38709-96304×2iYU61..CBU198808-199309

38741ATRUNNION, HOIST CYLINDER

main38741-96302iYU61..CBU198808-199309

38753APIN, CROSSHEAD

main38753-93200iWU75..CBU199109-199505

main38753-96303iYU61..CBU198808-199309

38806ABUSH, TENSION ARM HEAD

main90384-35005×4iYU61..CBU198808-199309

38882BUSH, TRUNNION

main38882-96304×2iYU61..CBU198808-199309

38892ABUSH (FOR LINK ARM BODY BRACKET)

main90384-35004×4iYU61..CBU198808-199309

9010112171

main90101-12171

9010114026

main90101-14026

9010118003

main90101-18003

9017018002

main90170-18002

9020121005

main90201-21005

9094901277

main90949-01277

9116251640

main91162-51640

9161160814

main91611-60814

9161160816

main91611-60816

9161161025

main91611-61025

9411551400

main94115-51400

9414642000

main94146-42000

9451201200

main94512-01200

9451201600

main94512-01600

9461211400

main94612-11400

9461211800

main94612-11800

9538104045

main95381-04045

9645100600

main96451-00600

9645600609

main96456-00609
