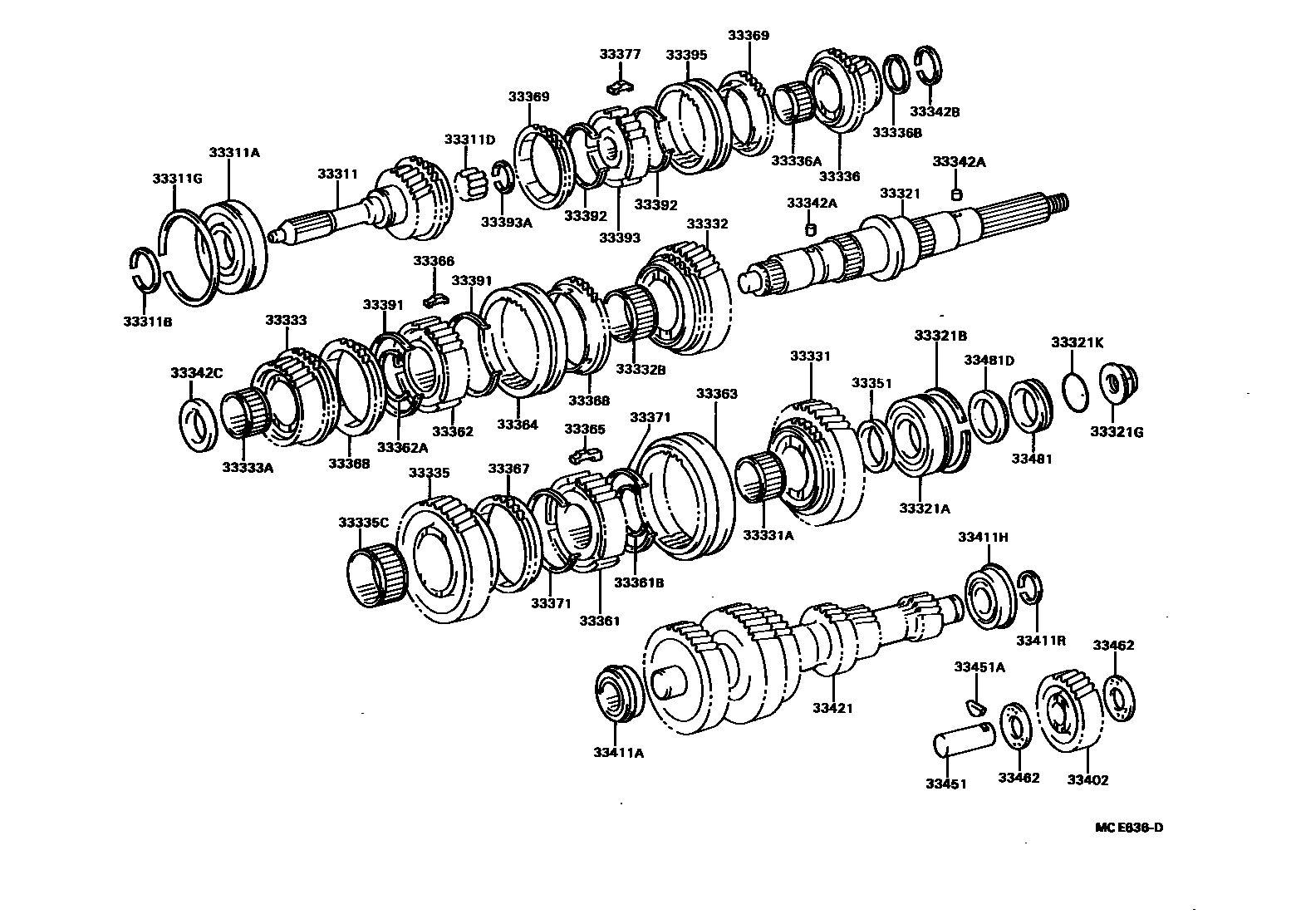

TRANSMISSION GEAR (MTM)
33311SHAFT, INPUT
33311ABEARING (FOR INPUT SHAFT FRONT)
33311BRING, SHAFT SNAP (FOR FRONT BEARING)
33311DBEARING, INPUT SHAFT
33311GRING, SHAFT SNAP (FOR FRONT BEARING)
33321SHAFT, OUTPUT
33321ABEARING (FOR OUTPUT SHAFT REAR)
33321BRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
33321GNUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET)
33321KRING, O(FOR MANUAL TRANSMISSON OUTPUT SHAFT REAR SET NUT)
33331GEAR, REVERSE
33331ABEARING (FOR REVERSE GEAR)
33332GEAR, 2ND
33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)
33333GEAR, 3RD
33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)
33335GEAR, 1ST
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
33336GEAR, 5TH
33336ABEARING, NEEDLE ROLLER (FOR 5TH GEAR)
33336BSPACER (FOR 5TH GEAR BEARING)
33342APIN, STRAIGHT (FOR GEAR THRUST WASHER)
33342BRING, SHAFT SNAP (FOR GEAR THRUST WASHER)
33342CWASHER, 3RD GEAR THRUST
33351WASHER, REVERSE GEAR THRUST
33361HUB, TRANSMISSION CLUTCH, NO.1
33361BRING, SHAFT SNAP (FOR CLUTCH HUB NO.1)
33362HUB, TRANSMISSION CLUTCH, NO.2
33362ARING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)
33363SLEEVE, TRANSMISSION HUB, NO.1
33364SLEEVE, TRANSMISSION HUB, NO.2
33365KEY, SYNCHROMESH SHIFTING, NO.1
33366KEY, SYNCHROMESH SHIFTING, NO.2
33367RING, SYNCHRONIZER, NO.1
33368RING, SYNCHRONIZER, NO.2
33369RING, SYNCHRONIZER, NO.3
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33377KEY, SYNCHROMESH SHIFTING (FOR NO.3 CLUTCH HUB)
33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33392SPRING, SYNCHROMESH SHIFTING KEY, NO.3
33393HUB, TRANSMISSION CLUTCH, NO.3
33393ARING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3)
33395SLEEVE, TRANSMISSION HUB, NO.3
33402GEAR SUB-ASSY, REVERSE IDLER
33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)
33411HBEARING OR ROLLER(FOR COUNTER GEAR REAR)
33411RRING, SNAP, COUNTER GEAR REAR BEARING
33421GEAR, COUNTER
33451SHAFT, REVERSE IDLER GEAR
33451AKEY, WOODRUFF (FOR REVERSE IDLER GEAR SHAFT)
33462WASHER, REVERSE IDLER THRUST
33481GEAR, SPEEDOMETER DRIVE (MTM)
33481DSPACER (FOR SPEEDOMETER DRIVE GEAR)
53 parts on this diagram · 4 diagrams in section
