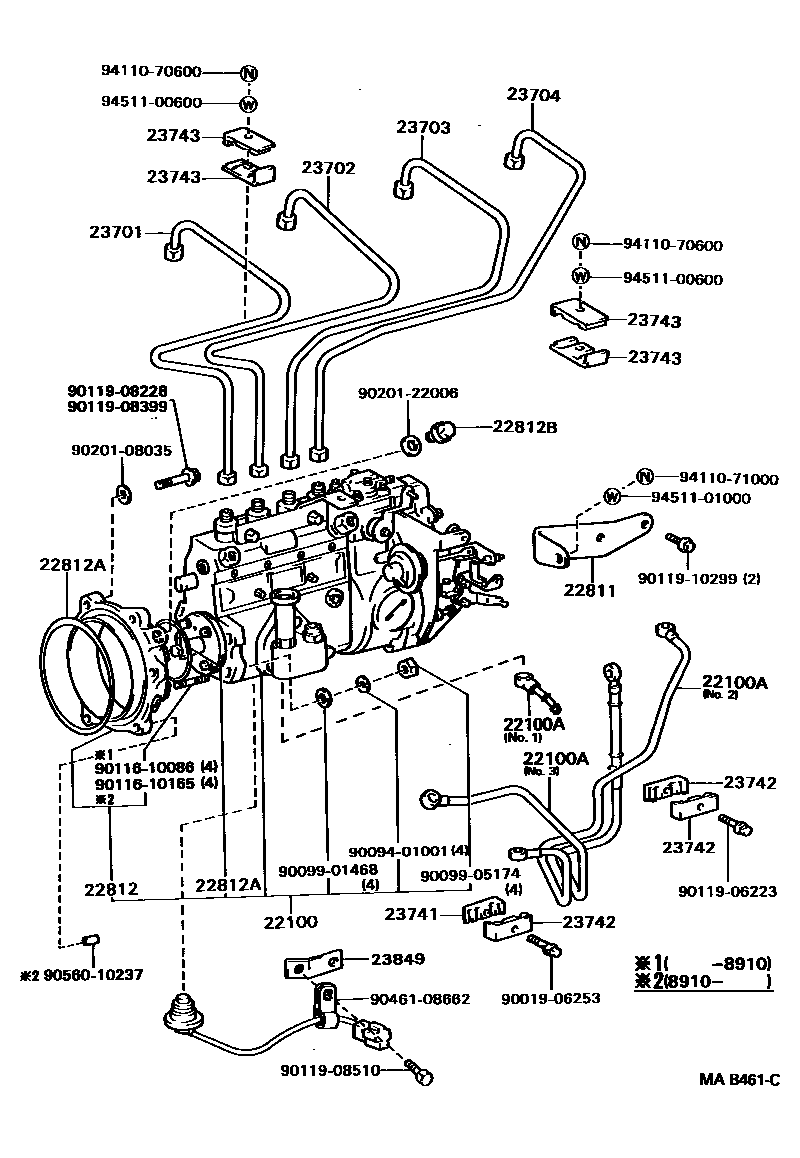

INJECTION PUMP ASSEMBLY

22100PUMP ASSY, INJECTION OR SUPPLY

main22010-78100i1W..WU75,9#198808-198910

main22010-78151i1W..WU85198910-198912

main22010-78152i1W..WU85,93198912-199505

main22010-78161i1W..WU75,9#198910-198912

main22010-78162i1W..WU75,90,95198912-199505

main22010-78170i1W..WU85;1W..WU90..TOY..T4..IV3199008-199012

main22010-78171i1W..WU85,93;1W..WU90..TOY..T4..IV3199012-199505

main22010-78180i1W..WU75,95;1W..WU90..DYN;1W..WU90..TOY..CBU;1W..WU90..TOY..T3..IV3199008-199012

main22010-78181i1W..WU75,95;1W..WU90..DYN;1W..WU90..TOY..CBU;1W..WU90..TOY..T3..IV3199012-199505

main22010-78200i1W..WU75,95..IV3199311-199505

main22010-78210i1W..WU75,95..IV3199311-199505

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main23814-78011i1W..WU75,85,9#198808-199505

main23815-78010i1W..WU75,85,9#198808-199505

main23826-78010i1W..WU75,85,9#198808-199505

22811STAY, INJECTION PUMP, NO.1

main22811-78010i1W..WU75,85,9#198808-199505

22812RETAINER, INJECTION PUMP

main22802-78010i1W..WU75,9#198808-198910

main22802-78020i1W..WU75,85,9#198910-199505

main22802-78030i1W..WU75,85,9#199012-199505

22812ARING, O

main90099-14072i1W..WU75,90,95; 1W..WU85,93198910-199505

INJECTION PUMP SIDE

main90301-99019i1W..WU75,85,9#198808-199505

CASE SIDE

22812BPLUG, W/HEAD STRAIGHT SCREW(FOR INJECTION PUMP RETAINER)

main90341-22002i1W..WU75,85,9#198808-199505

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-78010i1W..WU75,9#198808-198910

main23701-78020i1W..WU75,85,9#198910-199505

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-78010i1W..WU75,9#198808-198910

main23702-78020i1W..WU75,85,9#198910-199505

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-78010i1W..WU75,9#198808-198910

main23703-78020i1W..WU75,85,9#198910-199505

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-78010i1W..WU75,9#198808-198910

main23704-78020i1W..WU75,85,9#198910-199505

23741CLAMP, INJECTION PIPE, NO.1

main90929-01058i1W..WU75,85,9#198808-199505

23742CLAMP, INJECTION PIPE, NO.2

main90929-01057×3i1W..WU75,85,9#198808-199505

23743CLAMP, INJECTION PIPE, NO.3

main90929-01056×4i1W..WU75,85,9#198808-199505

23849SUPPORT, FUEL

main23849-78010i1W..WU75,85,9#198808-199505

9001906253

main90019-06253

9009401001

main90094-01001

9009901468

main90099-01468

9009905174

main90099-05174

9011610086

main90116-10086

9011610165

main90116-10165

9011906223

main90119-06223

9011908228

main90119-08228

9011908399

main90119-08399

9011908510

main90119-08510

9011910299

main90119-10299

9020108035

main90201-08035

9020122006

main90201-22006

9046108662

main90461-08662

9056010237

main90560-10237

9411070600

main94110-70600

9411071000

main94110-71000

9451100600

main94511-00600

9451101000

main94511-01000

33 parts on this diagram · 1 diagram in section
