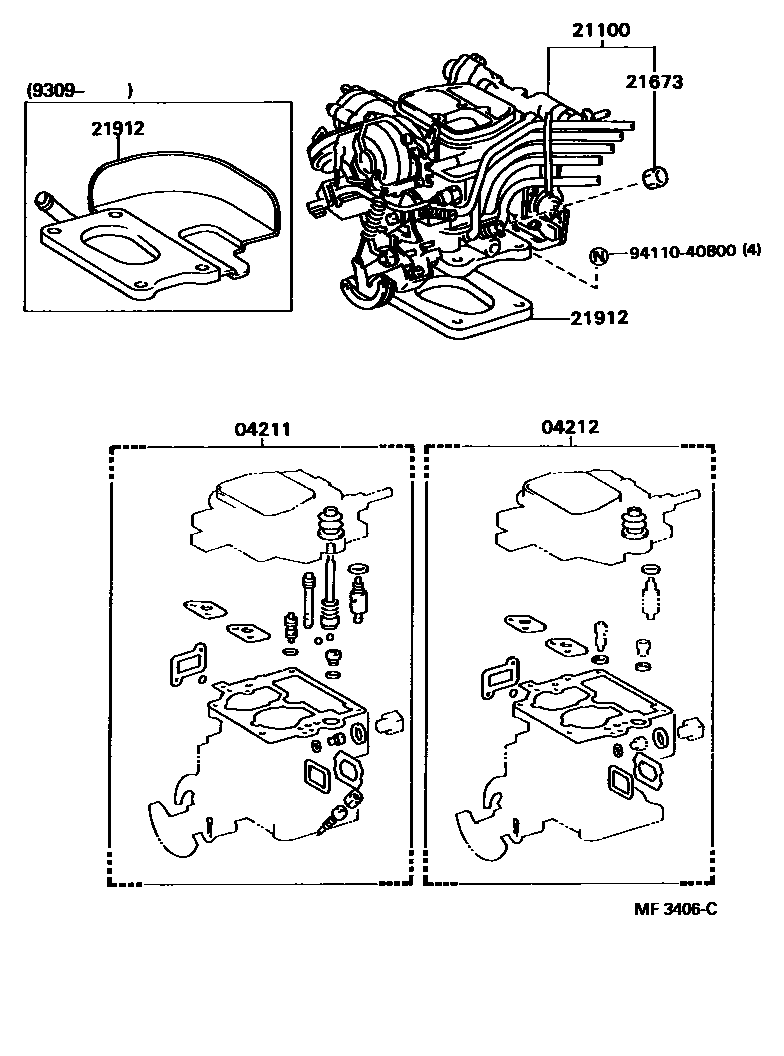

CARBURETOR ASSEMBLY

04211CARBURETOR KIT

main04211-73120i3Y..YU6#,70198808-199008

main04211-73310i3Y..YU6#,70199008-199208

main04211-73311i3Y..YU6#,70199208-199309

main04211-73450i3Y..YU60199309-199505

04212GASKET KIT, CARBURETOR

main04212-72041i3Y..YU6#,70199008-199208

main04212-73020i3Y..YU6#,70198808-199008

main04212-73063i3Y..YU6#,70199208-199505

21100CARBURETOR ASSY

main21100-73111i3Y..YU6#,70198808-199008

main21100-73410i3Y..YU6#,70199008-199111

main21100-73411i3Y..YU6#,70199111-199309

main21100-73450i3Y..YU60199309-199505

21673CAP, IDLE LIMIT

main21673-13280i3Y..YU6#,70199008-199505

main21673-71030i3Y..YU6#,70198808-199008

21912INSULATOR, CARBURETOR HEAT

main21912-72011i3Y..YU60199309-199505

main21912-73010i3Y..YU6#,70198808-198912

main21912-73020i3Y..YU6#,70198912-199309

9411040800

main94110-40800

6 parts on this diagram · 1 diagram in section
