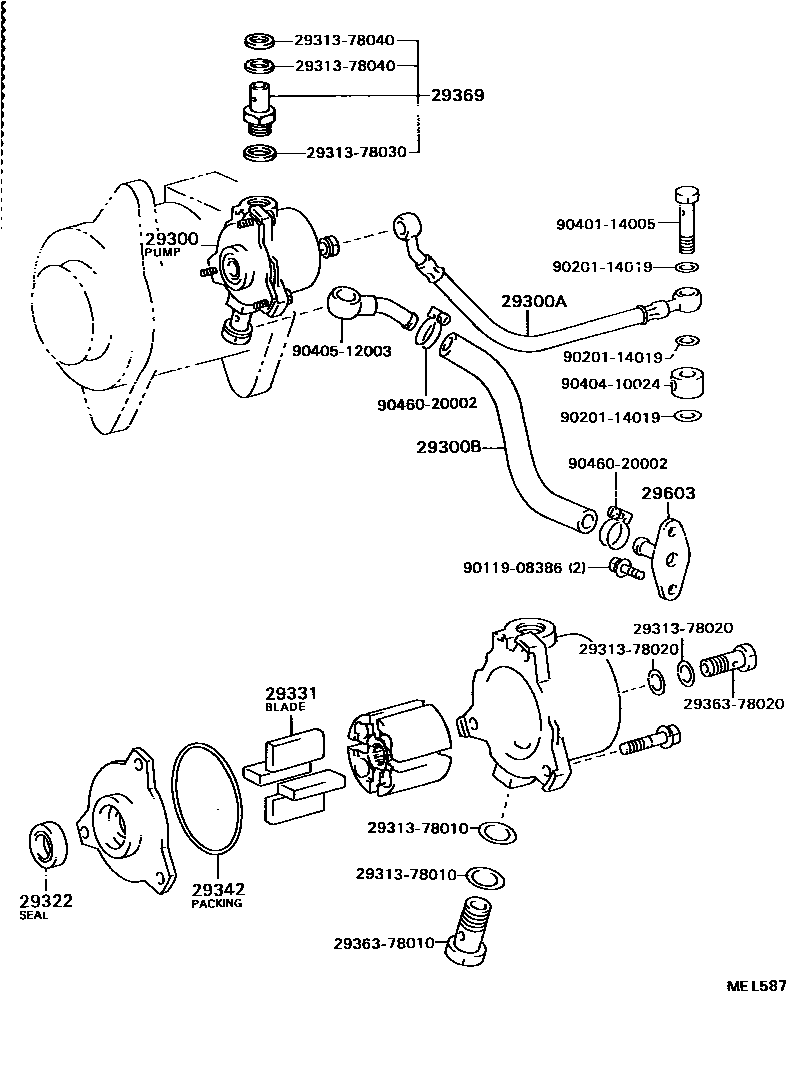

VACUUM PUMP

29300PUMP ASSY, VACUUM

main29300-78020i1W..WU75,85,9#198808-199505

29300AHOSE, VACUUM PUMP OIL INLET

main90923-02090i1W..WU75,85,9#198808-199505

29300BHOSE, VACUUM PUMP OIL OUTLET

main90923-02092i1W..WU75,85,9#198808-199505

29322BUSH, OIL SEAL, VACUUM PUMP

main29322-78011i1W..WU75,85,9#198808-199505

29331BLADE, VACUUM PUMP, A

main29331-78020×4i1W..WU75,85,9#198808-199505

29342PACKING, VACUUM PUMP

main29342-78010i1W..WU75,85,9#198808-199505

29369VALVE SUB-ASSY, CHECK

main29369-78010i1W..WU75,85,9#198808-199505

29603PIPE, VACUUM PUMP OIL OUTLET

main15773-78010i1W..WU75,85,9#198808-199505

2931378010

main29313-78010

2931378020

main29313-78020

2931378030

main29313-78030

2931378040

main29313-78040

2936378010SCREW, HOLLOW VACUUM PUMP

main29363-78010

2936378020SCREW, HOLLOW VACUUM PUMP

main29363-78020

9011908386

main90119-08386

9020114019

main90201-14019

9040114005

main90401-14005

9040410024

main90404-10024

9040512003

main90405-12003

9046020002

main90460-20002

20 parts on this diagram · 1 diagram in section
