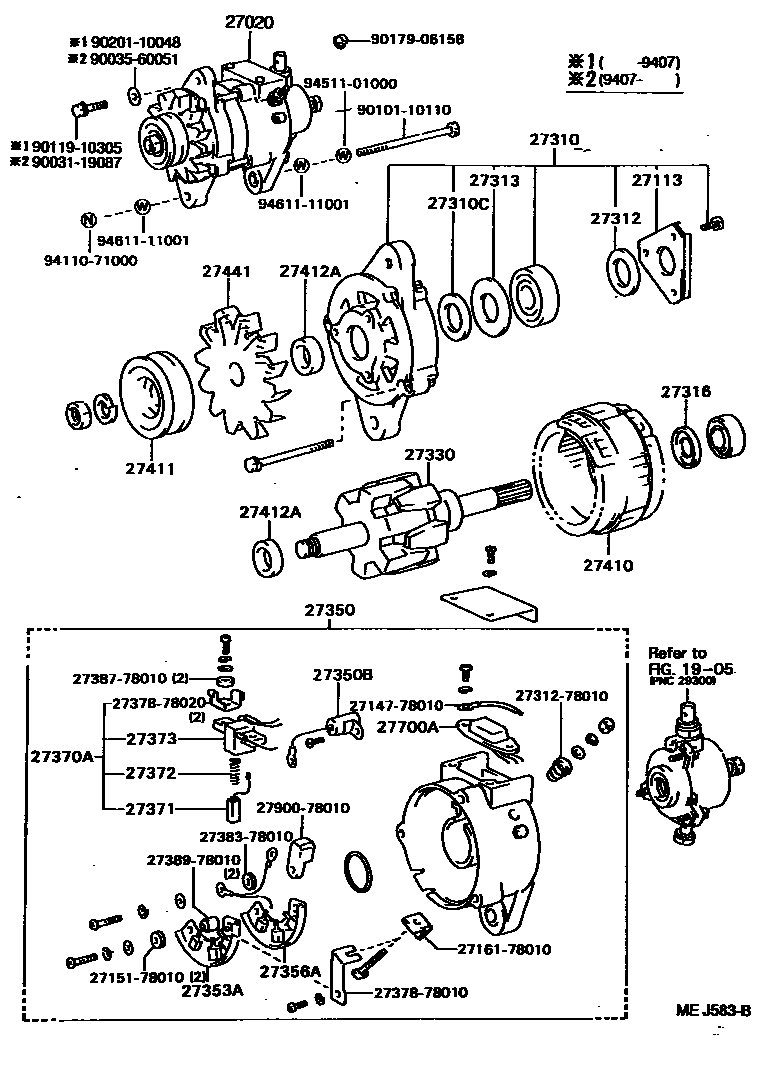

ALTERNATOR

0001 124V 30A 0002 112V 55A

1905VACUUM PUMP

→ Go to FIG 19-05

27020ALTERNATOR ASSY

main27020-72010i3Y#..YU6#,70198808-199011

main27020-72240i3Y#..YU6#,70199011-199311

main27040-78020i1W..WU75,85,9#198808-199109

main27040-78021i1W..WU75,85,9#199109-199206

main27040-78022i1W..WU75,85,9#199206-199505

27113PLATE, BEARING RETAINER, ALTERNATOR

main27135-78010i1W..WU75,85,9#198808-199505

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-72041i3Y#..YU6#,70198808-199311

main27310-78020i1W..WU75,85,9#198808-199505

27310CFELT(FOR ALTERNATOR DRIVE END FRAME)

main27315-78010i1W..WU75,85,9#198808-199505

27312PLATE, RETAINER

main27312-78020i1W..WU75,85,9#198808-199505

27313COVER, ALTERNATOR FELT, INNER NO.2

main27313-78010i1W..WU75,85,9#198808-199505

27316PACKING, RETAINER PLATE, ALTERNATOR

main27316-78010i1W..WU75,85,9#198808-199505

27330ROTOR ASSY, ALTERNATOR

main27330-16030i3Y#..YU6#,70198808-199311

main27330-78030i1W..WU75,85,9#198808-199505

27350FRAME ASSY, RECTIFIER END

main27350-78010i1W..WU75,85,9#198808-199505

27350BCONDENSER, ALTERNATOR

main27355-78010i1W..WU75,85,9#198808-199505

main90099-52065i3Y#..YU6#,70198808-199311

27353AHOLDER, W/RECTIFIER

main27353-78020i1W..WU75,85,9#198808-199505

27356AHOLDER SUB-ASSY, RECTIFIER

main27356-78010i1W..WU75,85,9#198808-199505

27370AHOLDER ASSY, ALTERNATOR BRUSH

main27370-78010i1W..WU75,85,9#198808-199505

27371BRUSH, ALTERNATOR

main27371-31011×2i3Y#..YU6#,70198808-199311

main27373-78010×2i1W..WU75,85,9#198808-199505

27372SPRING, ALTERNATOR BRUSH

main27372-31011×2i3Y#..YU6#,70198808-199311

main27372-78010×2i1W..WU75,85,9#198808-199505

27373HOLDER, ALTERNATOR BRUSH, A

main27383-78020i1W..WU75,85,9#198808-199505

27410STATOR ASSY, ALTERNATOR

main27410-41080i3Y..YU60199311-199505

main27410-78030i1W..WU75,85,9#198808-199505

27411PULLEY, ALTERNATOR

main27411-72040i3Y#..YU6#,70198808-199311

main27430-78020i1W..WU75,85,9#198808-199505

27412COLLAR, SPACER(FOR ALTERNATOR PULLEY)

main27412-16040i3Y#..YU6#,70198808-199311

27412ACOLLAR, SPACE(FOR ALTERNATOR DRIVE END FRAME)

main27412-15150i3Y#..YU6#,70198808-199311

main27412-78010×2i1W..WU75,85,9#198808-199505

27441FAN, ALTERNATOR

main27441-63030i3Y#..YU6#,70198808-199311

main27441-78010i1W..WU75,85,9#198808-199505

27700AREGULATOR ASSY, GENERATOR

main27700-56060i3Y..YU60199311-199505

main27700-78010i1W..WU75,85,9#198808-199505

2714778010TERMINAL, W/LEAD WIRE

main27147-78010

2715178010

main27151-78010

2716178010INSULATOR, BRUSH HOLDER, B

main27161-78010

2731278010PLATE, RETAINER

main27312-78010

2737878010INSULATOR, ALTERNATOR, NO.1

main27378-78010

2737878020INSULATOR, ALTERNATOR, NO.1

main27378-78020

2738378010WASHER, ALTERNATER TERMINAL INSULATOR, NO.1

main27383-78010

2738778010INSULATOR, TERMINAL

main27387-78010

2738978010INSULATOR, TERMINAL

main27389-78010

2790078010

main27900-78010

9003119087

main90031-19087

9003560051

main90035-60051

9010110110

main90101-10110

9011910305

main90119-10305

9017906158

main90179-06158

9020110048

main90201-10048

9411071000

main94110-71000

9451101000

main94511-01000

9461111001

main94611-11001

42 parts on this diagram · 2 diagrams in section
